Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 61
Part Replacement Procedures Chapter 3
Install the Fuses on the Switching Power Supply Circuit Board
Install the fuses identified in this table on the switching power supply board in
reverse order of removal.
Circuit Board ID / Revision Fuse Designation Fuse (5 x 20 mm)
SW2-32 / H and below F1 3.15 A, 250V fast
F2 2.5 A, 250V slow
SW2-32 / I and above F1 2.5 A, 250V slow
F2

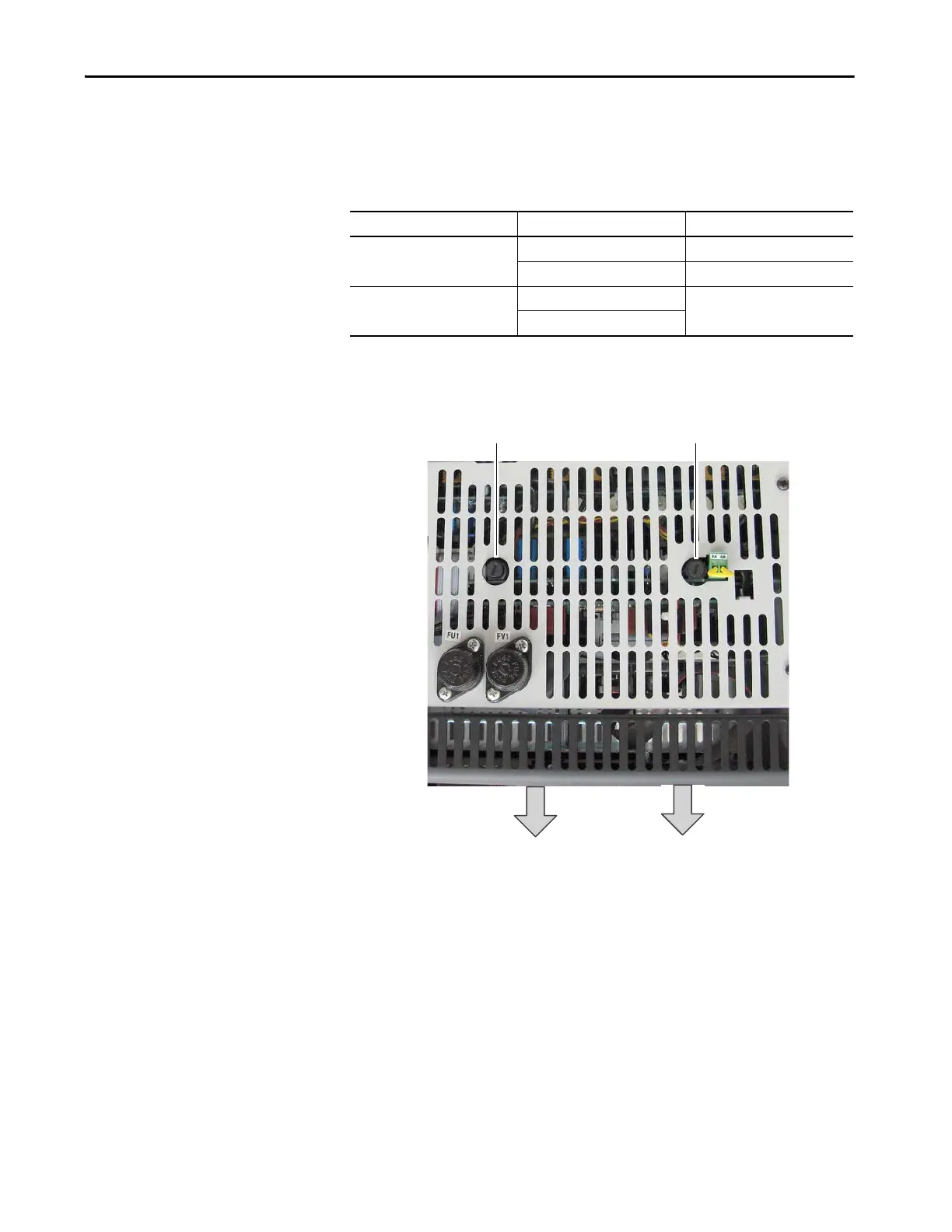

Top View of drive
Front of drive
F1 = 3.15A
250V fuse
F2 = 2.5A
250V fuse
