70 Rockwell Automation Publication 20P-TG002B-EN-P - February 2018
Chapter 3 Part Replacement Procedures
1. Cut and remove the appropriate sizing resistor(s) (if necessary) from the
pulse transformer board based on the drive size. See Ta b le 13
or Tab l e 14
for the appropriate configuration.
Sizing Resistor Configuration
Table 1 3 and Table 1 4 indicate the value of the designated resistor (R1 - R5)
when left in place on the pulse transformer board, or indicate “Remove” when
the resistor should be cut off and removed from the board. “–” indicates that
this resistor is not contained on the pulse transformer board for the designated
drive size.
Table 13 - 230V AC Input Drives
Table 14 - 460V AC Input Drives
2. Connect the leads of the multimeter to pins 13 and 14 of connector XR
on the pulse transformer board (polarity is not important) and, using
the TA potentiometer on the lower right corner of the pulse transformer
circuit board, set the total resistance (RTA) to the appropriate value as
indicated in Ta b le 15
or Tabl e 16 in the Total Resistance Values section
on page 72
.
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Hp R1 R2 R3 R4 R5
146 146 119 40 – Remove Remove 5.36 Ω Remove
180 180 147 50 – Remove Remove 5.36 Ω Remove
218 218 178 60 – Remove Remove 5.36 Ω Remove
265 265 217 75 – Remove Remove 5.36 Ω 5.36 Ω
360 360 294 100 – Remove 5.36 Ω 5.36 Ω 5.36 Ω
434 434 355 125 – Remove 5.36 Ω 5.36 Ω 5.36 Ω
Drive Current
Rating Code
DC
Amps
AC Line
Amps
Hp R1 R2 R3 R4 R5
167 167 136.4 100 – Remove 5.36 Ω Remove Remove
207 207 169.1 125 – Remove Remove 5.36 Ω Remove
250 250 204.3 150 – Remove Remove 5.36 Ω 5.36 Ω
330 330 269.6 200 – Remove 5.36 Ω 5.36 Ω 5.36 Ω
412 412 336.6 250 – Remove 5.36 Ω 5.36 Ω 5.36 Ω
XP
1
X3
1
XSW
16
1
2
33
34
XR
TR2 TR1
XY
1
0V1
T04T01
T05T02
T06T03
T1
T4
T2 T5
T3 T6
K
G
KG04
K
G
KG01
K
G
KG05
K
G
KG02
K
G
KG06
K
G
KG03
K
G
KG4
K
G
KG1
K
G
KG5
K
G
KG2
K
G
KG6
K
G
KG3
XTA
1
1
78 7935 3675 76U2V2
UCVW
TA
1
X4
1
F2
F3
F1

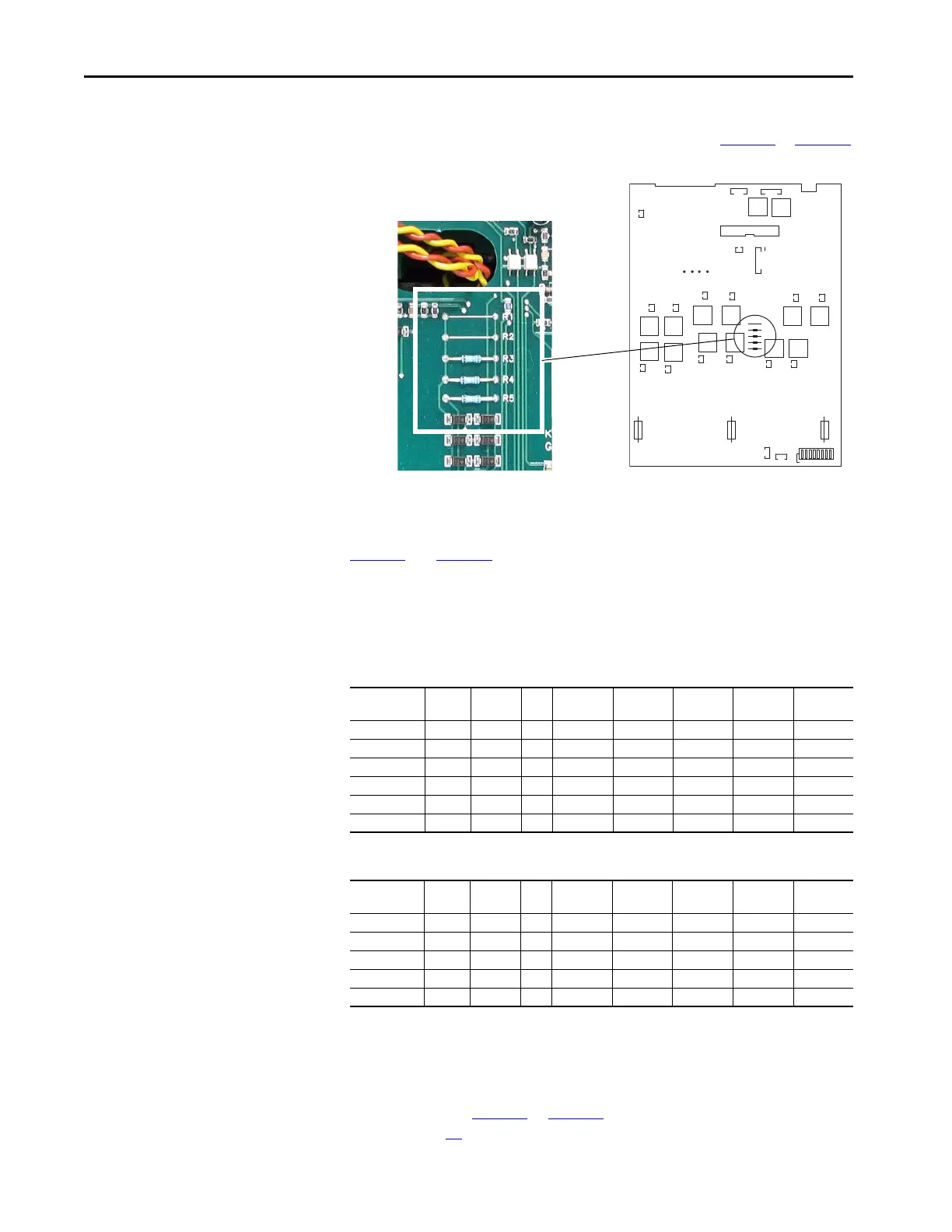

Sizing resistors are located near the center of the
pulse transformer circuit board.
