Rockwell Automation Allen-Bradley PowerFlex 20P Hardware Service Manual

Rockwell Automation Publication 20P-TG002B-EN-P - February 2018 91
Part Replacement Procedures Chapter 3
5. Remove the protective covers from the drive (see page 43).
6. Remove the pulse transformer and switching power supply boards from
the drive (see page 62
). You do not need to remove the switching power
supply board from the back of the pulse transformer board for this
procedure.

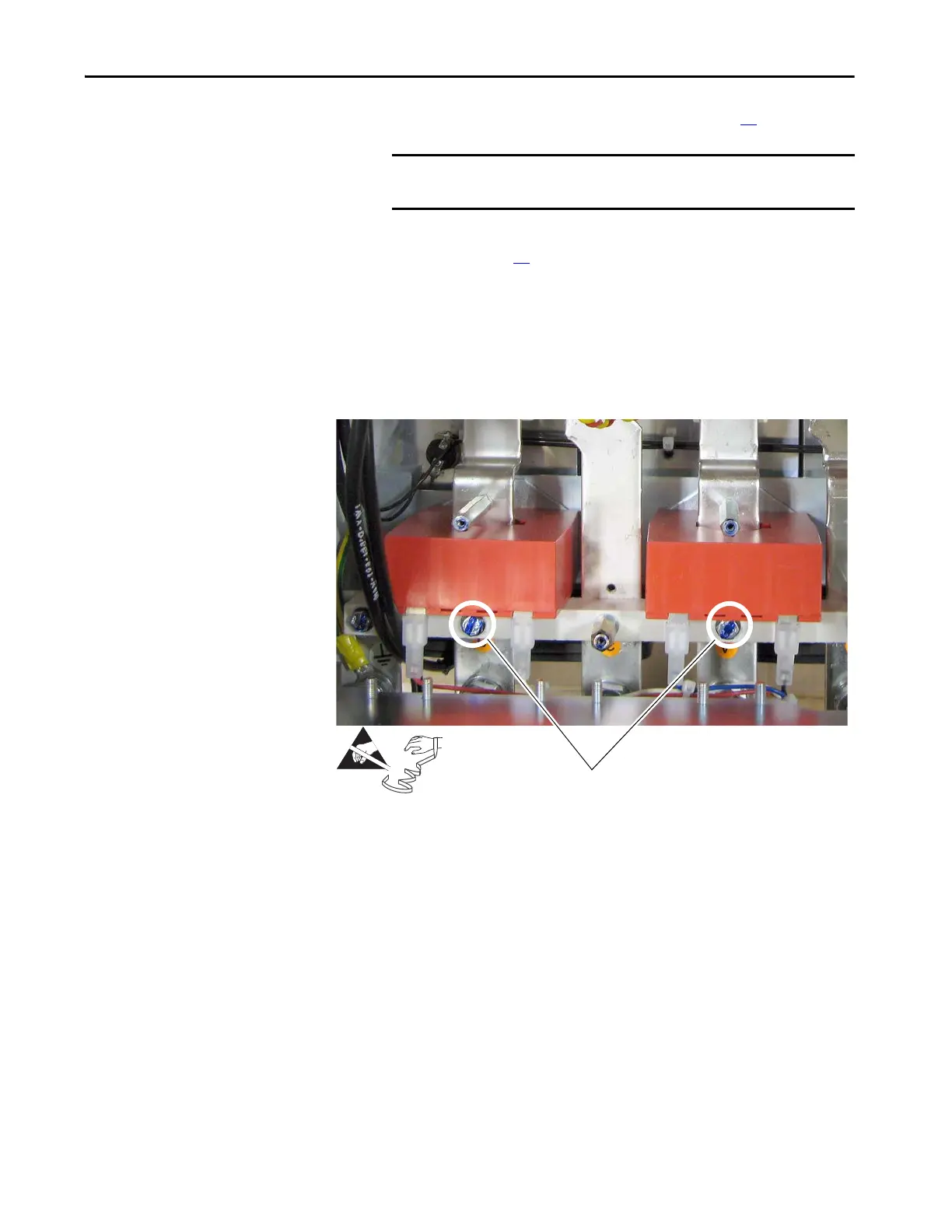

7. Remove the bolts and washers that secure the U and V phase AC input
bus bars to the isolation bar.
IMPORTANT Mark all connections and wires before removal to avoid incorrect
wiring during reassembly.
7
=
Regenerative Drive Shown
