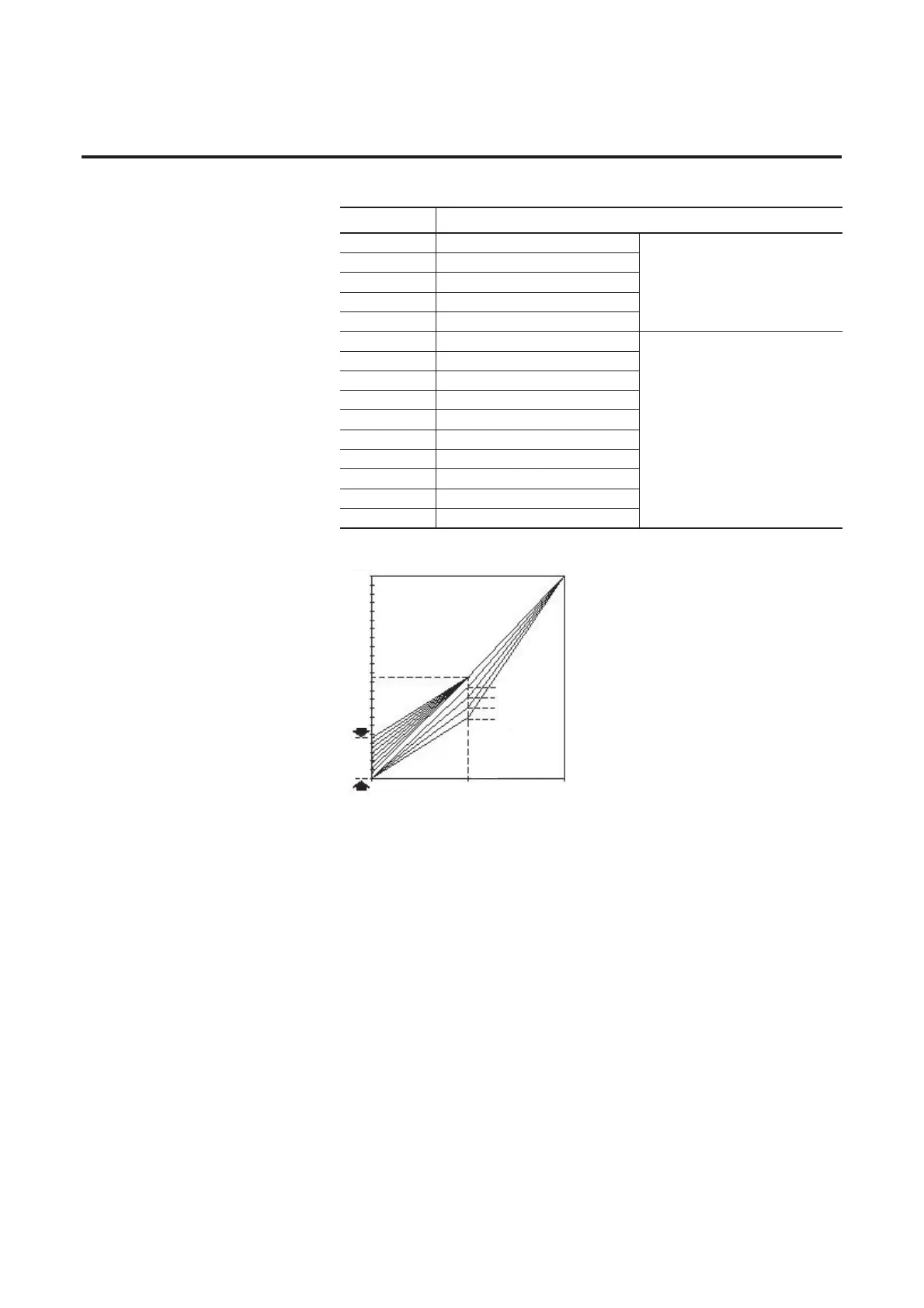

4-38 Bulletin 284G Programmable Parameters for Sensorless Vector Controllers
Table 4.6 Boost Select Options
Figure 4.1
Options Description
0 Custom V/Hz
Variable Torque (Typical fan/pump
curves)
1 30.0, VT
2 35.0, VT
3 40.0, VT
4 45.0, VT
5 0.0 no IR
Constant Torque
6 0.0
7 2.5, CT (Default for 5 Hp/4.0 kW Drive)
8 5.0, CT Default
9 7.5,CT
10 10.0,CT
11 12.5,CT
12 15.0,CT
13 17.5,CT
14 20.0,CT
% Parameter 132 (Motor NP Hertz)
% Parameter 131 (Motor NP Volts)
1/2 (Motor NP Volts)
Settings
5...14
0 50 100
50 100
4
1
2
3
1/2
(Motor NP Hertz)
