5-8 DeviceNet™ Commissioning
Setting the Motor FLA and
Overload Trip Class (Bulletin 280G/
281G)
The product should now be configured and communicating on the
network. The last step is to program the motor FLA setting
(parameter# 106) and overload trip class (parameter# 107). This can
be accomplished by using software such as RSNetWorx for
DeviceNet or another handheld DeviceNet tool.
Using the software, access the device parameters screen as shown
below. Notice that by default the motor FLA is set to the minimum
FLA setting for the device and the overload trip class is set to 10.
Select FLA setting (parameter #106) and enter a value that
corresponds to the FLA of the motor connected to the ArmorStart.
Make sure the single radio button is selected and then select
Download to Device.
Select Overload Class (parameter #107) and choose the overload trip
class to be used with the motor connected to the ArmorStart. The
ArmorStart can be set up for trip class 10, 15, or 20. Make sure the
Single radio button is selected and then select Download to Device.
The proper motor protection is now in place.

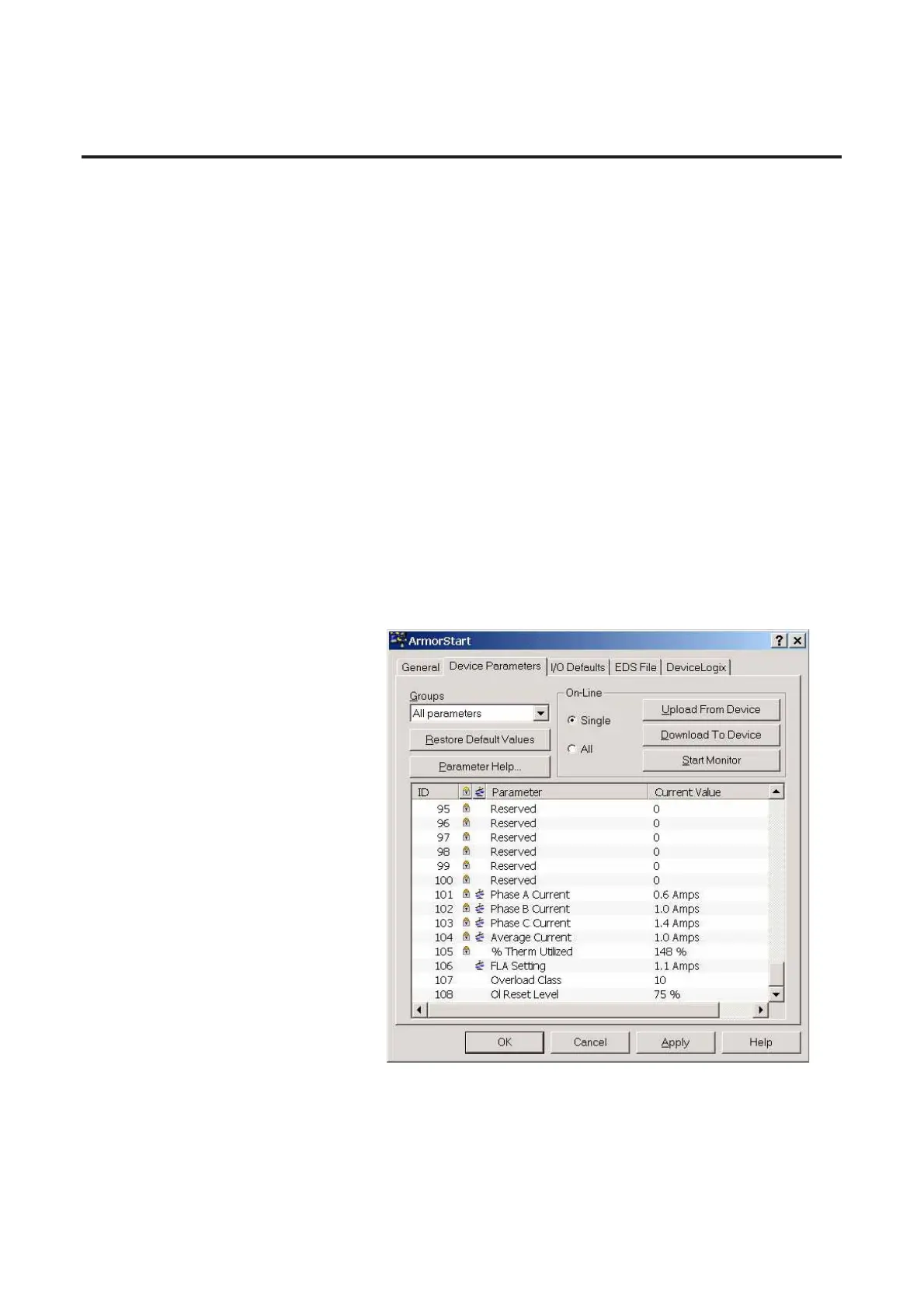

Figure 5.2 RSNetWorx Parameter Screen
