Troubleshooting 10-15
Control Module Replacement
(Bulletin 280G/281G)
Removal of Starter Module
1) Disconnect from power source
2) Remove motor cable.
3) Loosen the four mounting screws.
4) Unplug the Control module from the base by pulling forward.
Installation of Control Module
5) Install control module.
6) Tighten four mounting screws.
7) Install motor and control brake cable.

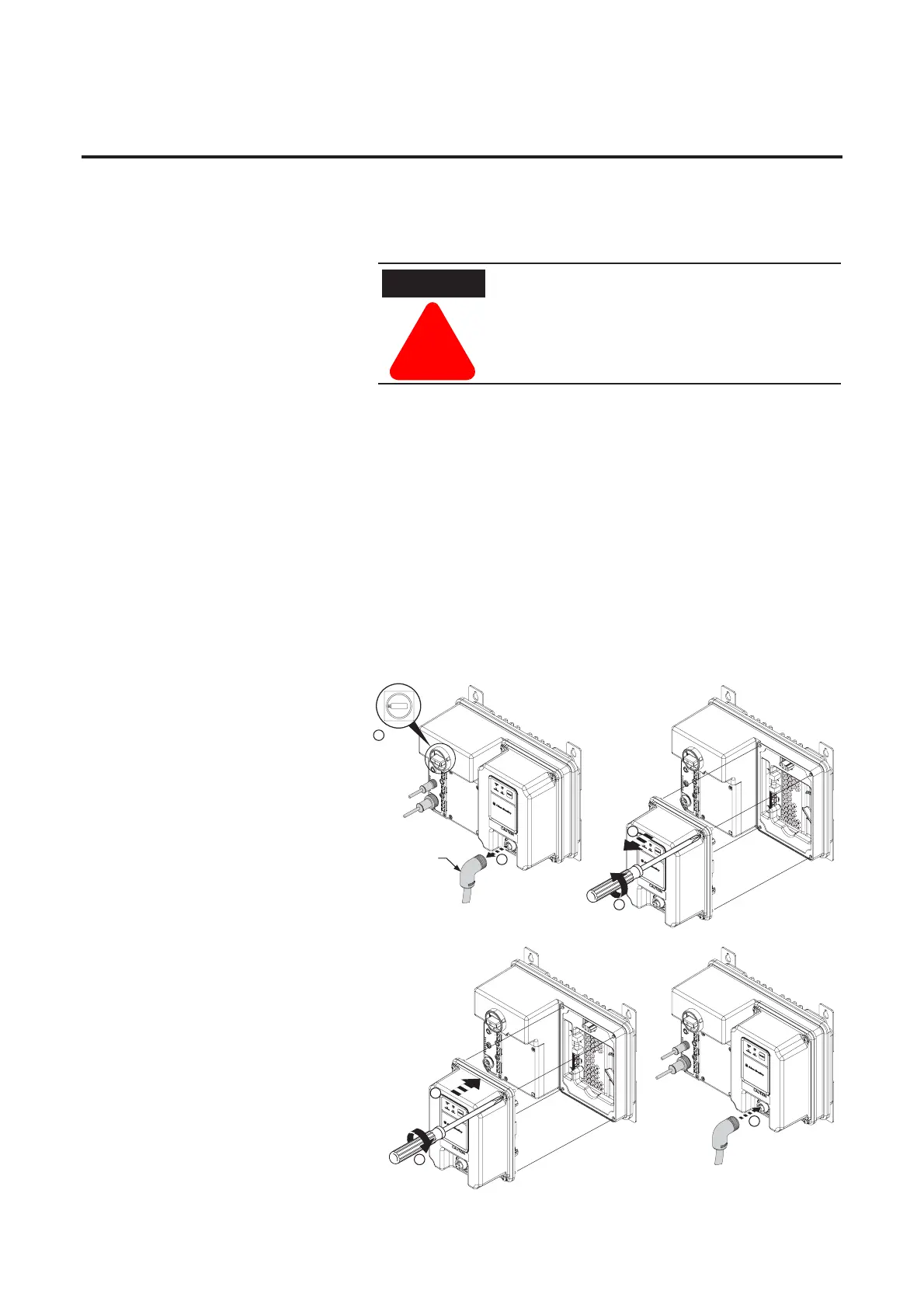

Figure 10.1 Bulletin 280G/281G Control Module Replacement
ATTENTION
!
To avoid shock hazard, disconnect main power
before working on the controller, motor, or control
devices
2
1
4
3
1
2
3
Note: DeviceNet base module is
shown
Motor Cable
30 lb-in/
3.39 Nm
