Rockwell Automation ArmorStart Bulletin 280G - Dimensions and Terminal Designations

2-4 Installation and Wiring
Dimensions for Bulletin 280G/281G Dimensions are shown in millimeters (inches). Dimensions are not
intended to be used for manufacturing purposes. All dimensions are
subject to change.

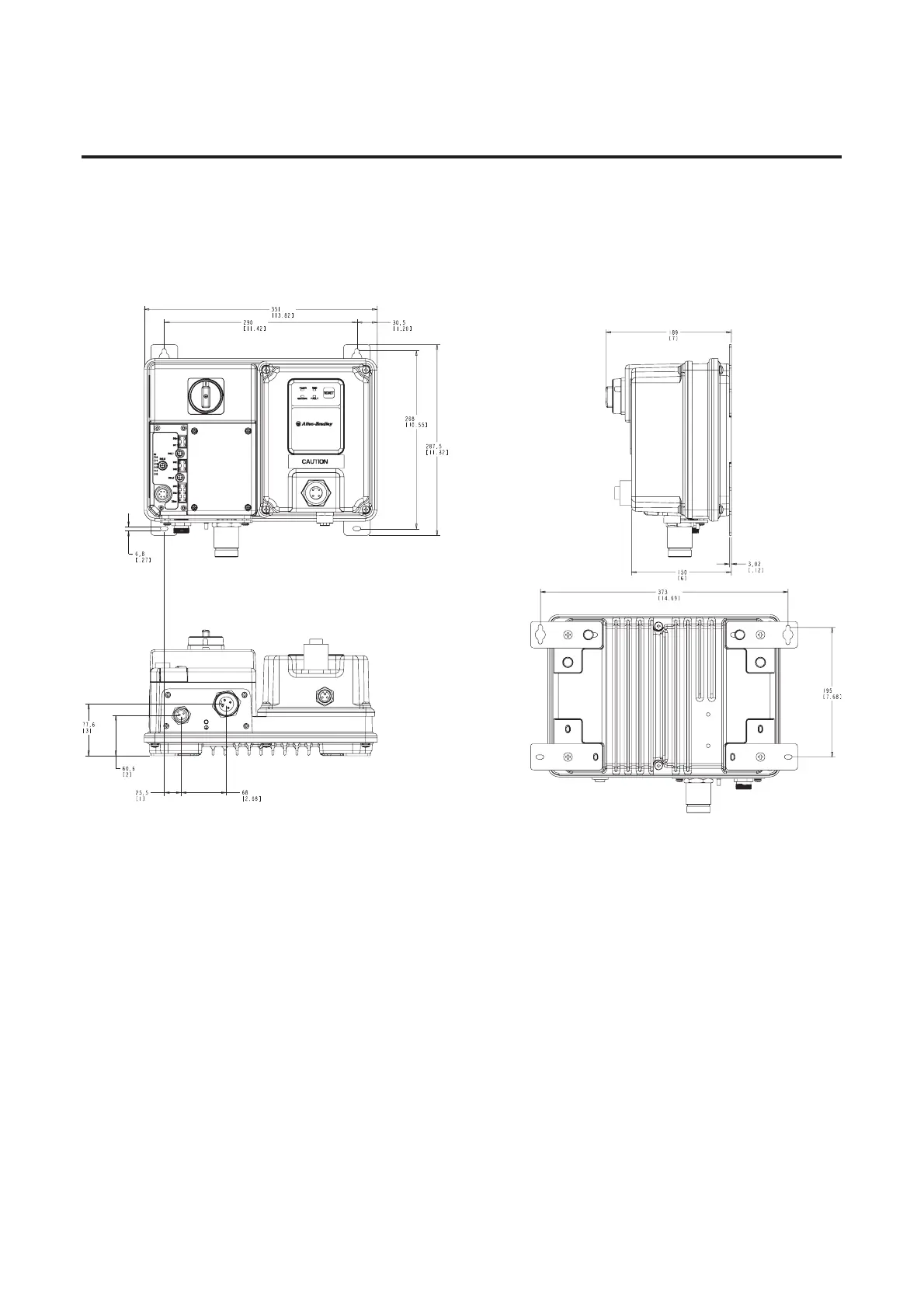

Figure 2.1 Dimensions for IP67/NEMA Type 4 with ArmorConnect
Connectivity
