2-32 Installation and Wiring
ArmorStart Safety with ArmorConnect Connectivity

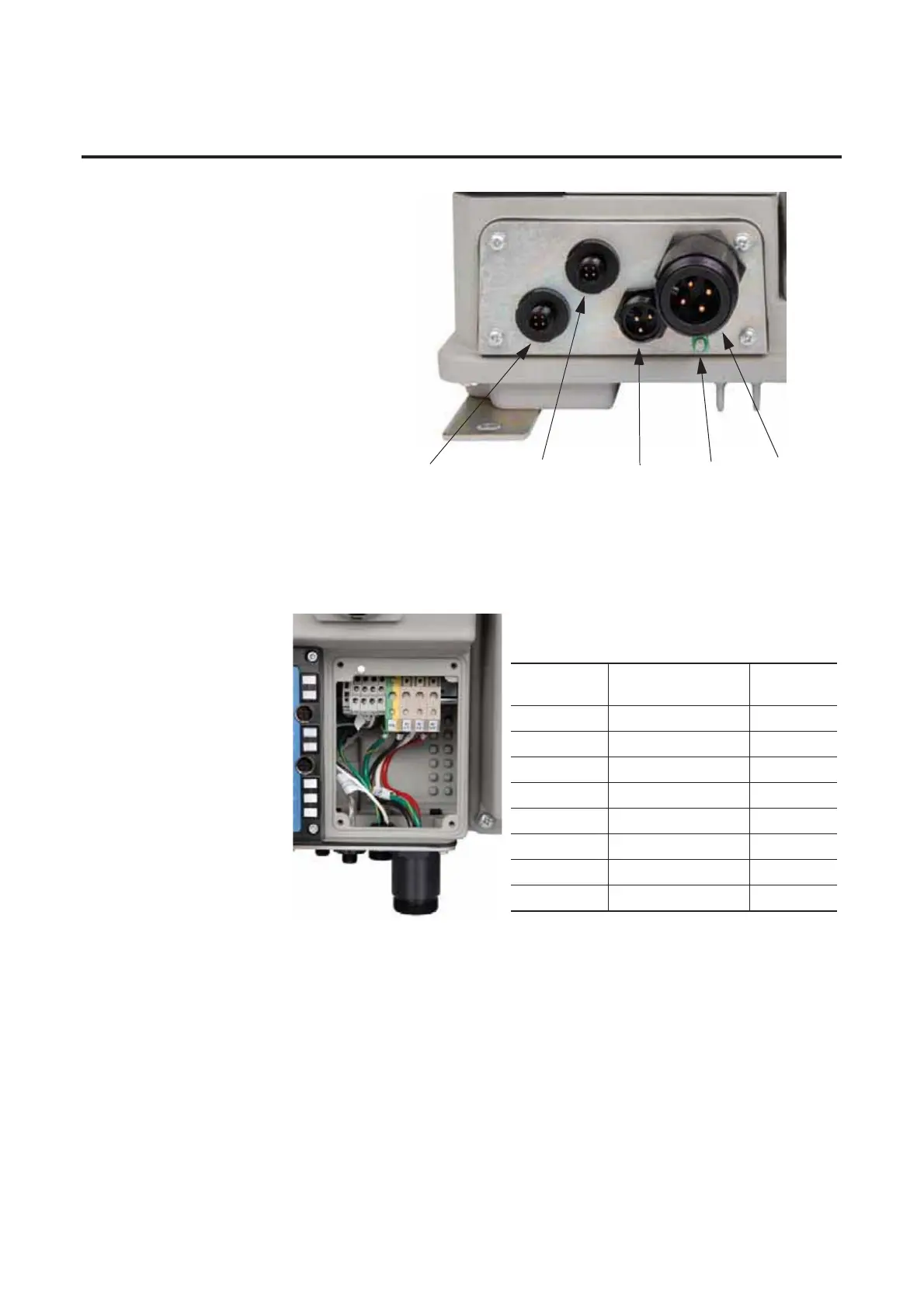

Terminal Designations
ArmorConnect Cable Ratings
The ArmorConnect power media cables are rated per UL Type TC
600V 90 °C Dry 75 °C Wet, Exposed Run (ER) or MTW 600V 90 °C
or STOOW 105 °C 600V - CSA STOOW 600V FT2.
Ground
Terminal
Three-Phase
Power
Recepale
120V AC
Aux. Powr
for
Conto Brake
Safety Monitor
Input from
1732DS Safey
I/O Module Inpt
A1/A2 -24V DC
Control Power rm
1732DS Safety
I/O Module Outu
Terminal
Designations
Description Color Code
SM1 Safety Monitor Input Brown
SM2 Safety Monitor Input White
A1 (+) Control Power Input Brown
A2 (-) Control Power Common Blue
PE Ground Green/Yellow
1/L1 Line Power - Phase A Black
3/L2 Line Power - Phase B White
5/L3 Line Power - Phase C Red
