Rockwell Automation ArmorStart Bulletin 280G - Armorblock Guard IO Recommended Compatible Cables and Connectors

Safety I/O Module and TÜV Requirements F-3
Micro Connector Pin Assignments
Mini Connector Pin Assignments
Power Configuration Pin Assignments

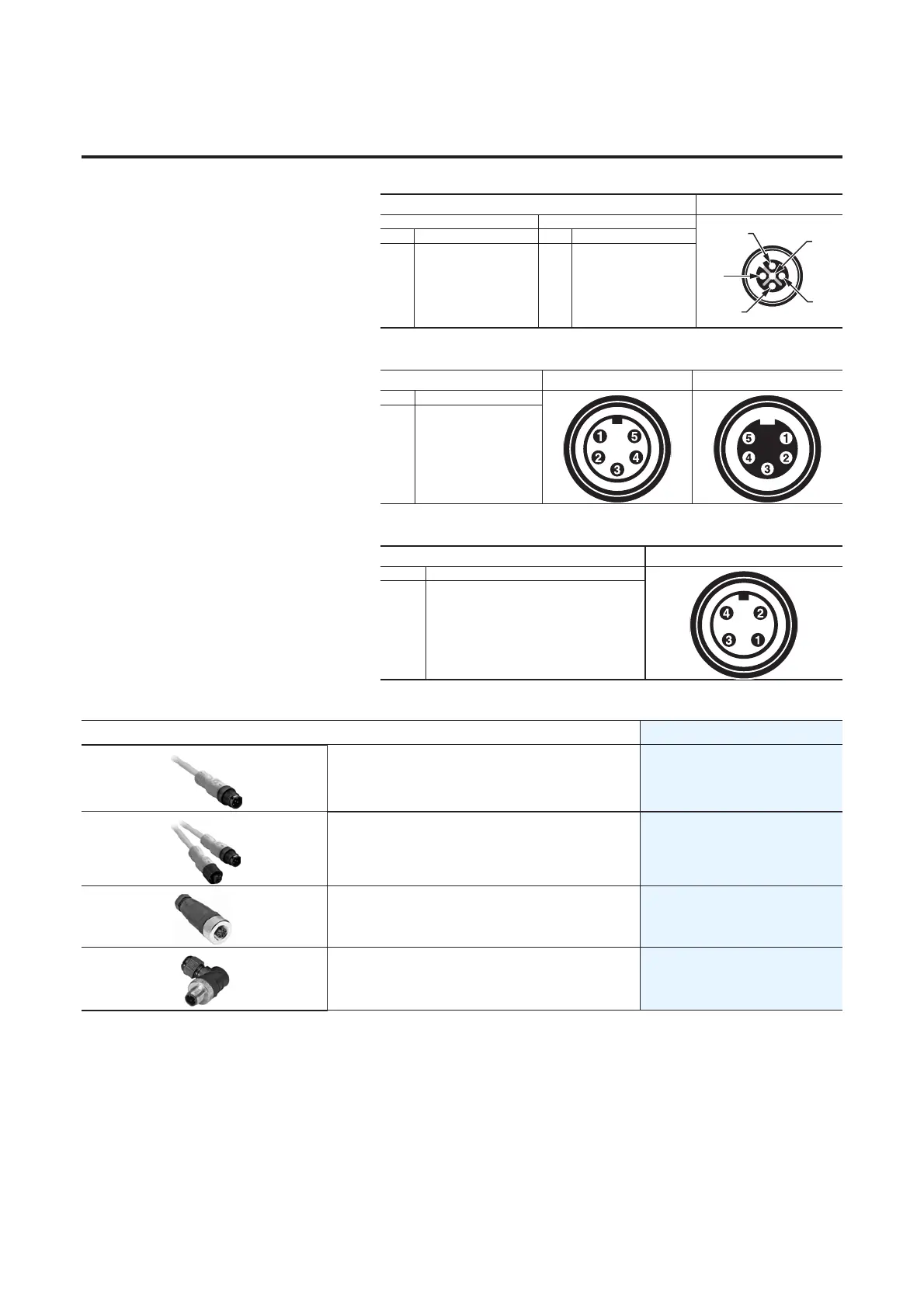

ArmorBlock Guard I/O Recommended Compatible Cables and Connectors
➊ Replace symbol with 1 (1 m), 2 (2 m), 5 (5 m), or 10 (10 m) for standard cable length.
Face View Pinout Female
Input Configuration Output Configuration
Pin Signal Pin Signal
1
2
3
4
5
Test Output n+1
Safe Input n+1
Input Common
Safe Input n
Test Output n
1
2
3
4
5
Output +24V DC Power
Output n+1 (sinking)
Output Power Common
Output n (sourcing)
Output Power Common
Face View Pinout Male Female
Pin Signal
1
2
3
4
5
Drain
V+ (Red)
V- (Black)
CAN_H (White)
CAN_L (Blue)
Face View Pinout Male
Pin Signal
1
2
3
4
Output +24V DC Power (Red)
Input +24V DC Power (Green)
Input Power Common (White)
Output Power Common (Black)
5
4
3
1
2
Description Cat. No.
DC Micro (M12) Male Cordset
889D-F4HJ-➊
DC Micro Style Patchcord 889D-F4HJDM-➊
M12 Terminal Chamber, Straight Male 871A-TS4-DM
M12 Terminal Chamber, Right Angle Male
871A-TR4-DM
