Using DeviceLogix™ 7-9
5. Bulletin 284G ArmorStart Fault Bits

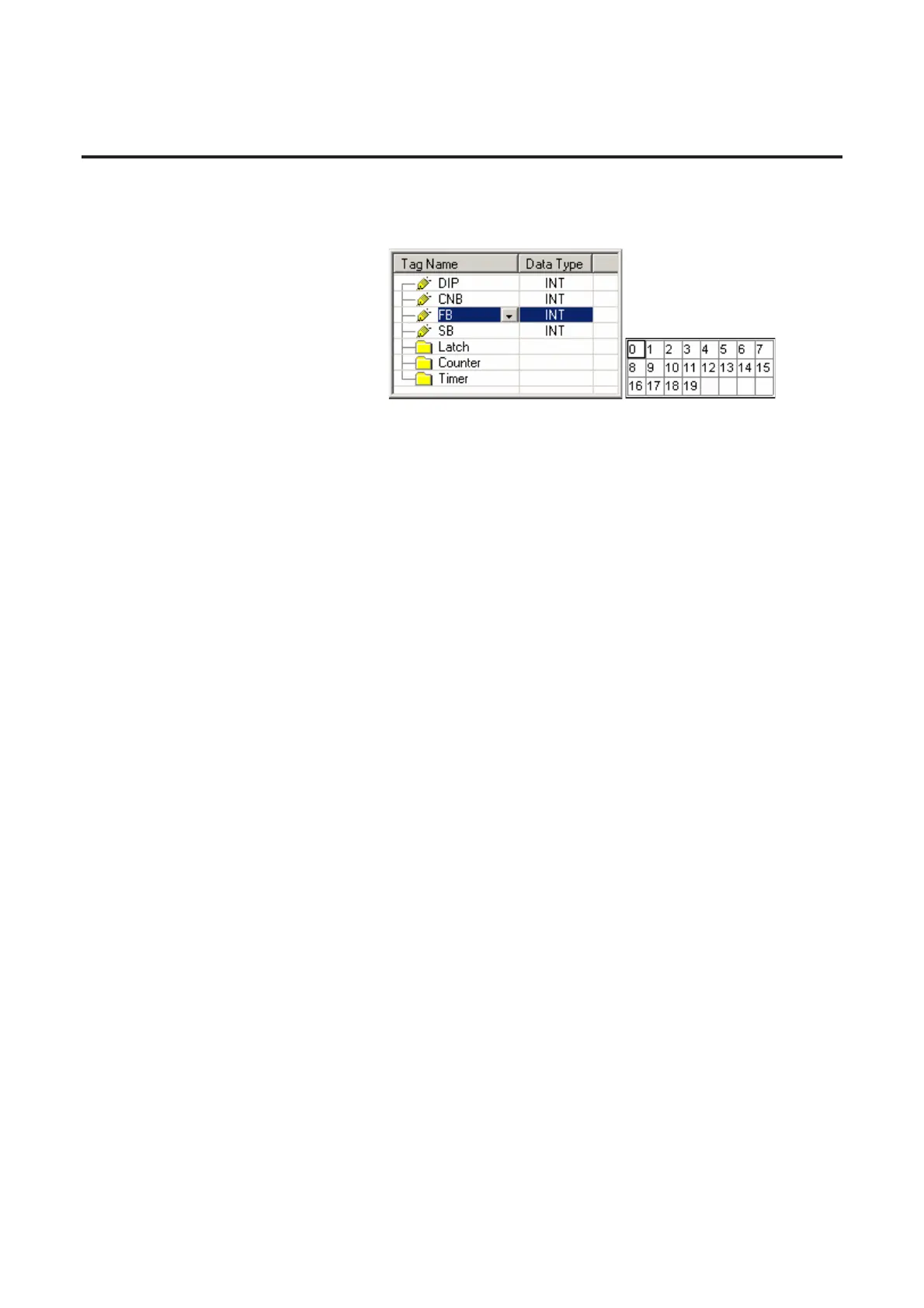

The screen capture below shows how to choose Fault Bits in the
ladder editor.
The following table contains the fault bit definitions for Bulletin
284G ArmorStart:
ArmorStart Revision 2.xxx (284G)
0 = Short Circuit
1 = Overload
2 = Phase Short
3 = Ground Fault
4 = Stall
5 = Control Power
6 = IO Fault
7 = Over Temp
8 = Phase Over Current
9 = DNet Power Loss
10 = Internal Comm
11 = DC Bus Fault
12 = EEprom
13 = HW Flt
14 = Reset Retries
15 = Misc. Fault
16 = CP Warning
17 = IO Warning
18 = DN Warning
19 = HW Warning
