Troubleshooting 10-17
Base Module Replacement
(Bulletin 280G/281G)
Removal of Base Module
1) Disconnect from power source.
2) Remove motor, control brake, control and three-phase power,
comunication, and all other cables connected to the inputs.
3) Loosen four mounting screws on the Starter Module.
4) Unplug the Control Module from the base by pulling forward.

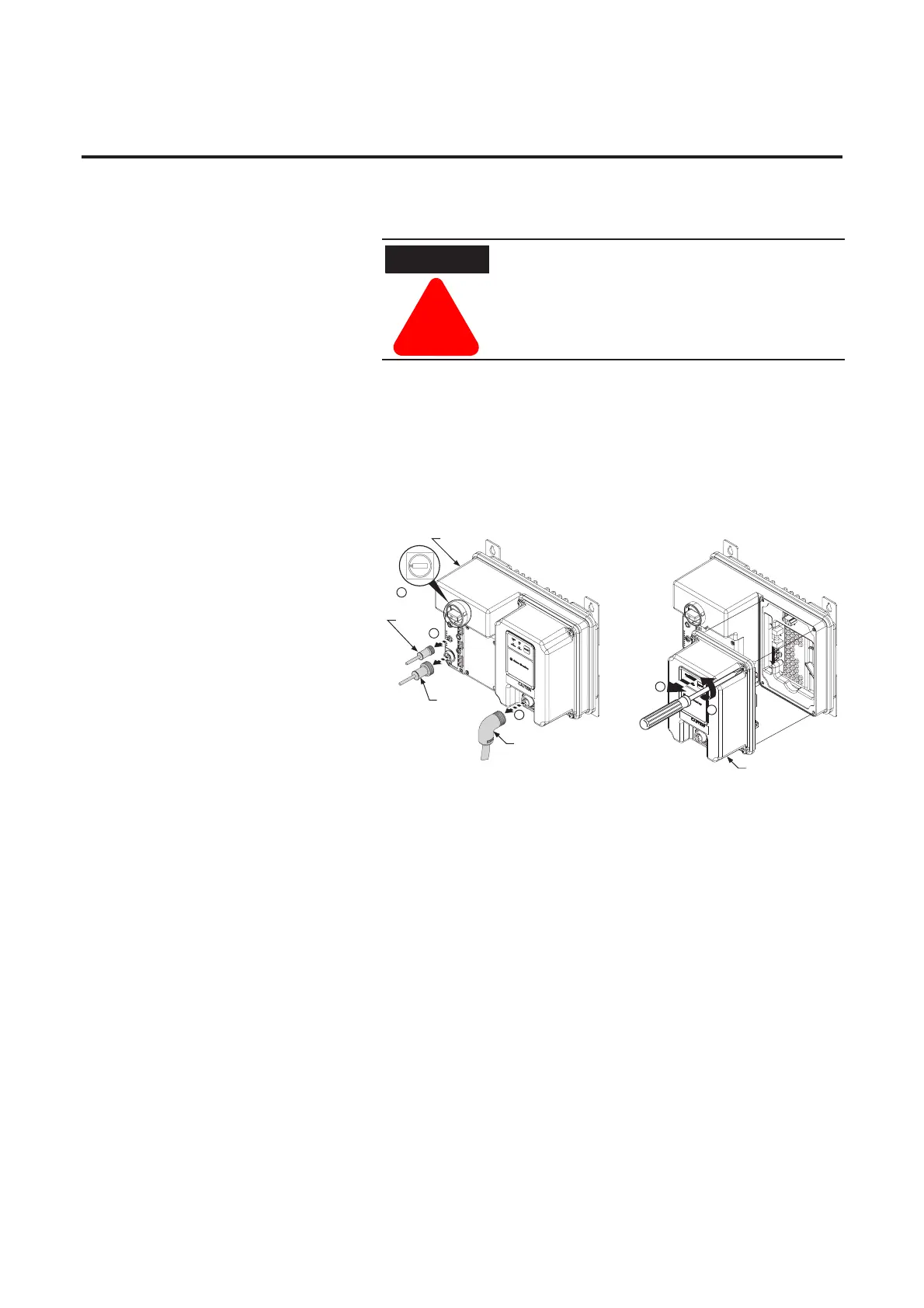

Figure 10.3 Bulletin 280G/281G Base Module Removal
To avoid shock hazard, disconnect main power
before working on the controller, motor, or control
devices
Note: DeviceNet base module is
shown
Base Module
Input/Output Cable
Communication
Cable
Motor Cable
Control Module
To Next Page
