10-20 Troubleshooting
Base Module Replacement
(Bulletin 284G)
Installation of Base Module
1) Mount Base Module with four mounting screws.
2) Install Control Module.
3) Tighten four mounting screws.
4) Install all cables to Control Module, comunication, control and
three-phase power, and all other cables connected to the inputs.

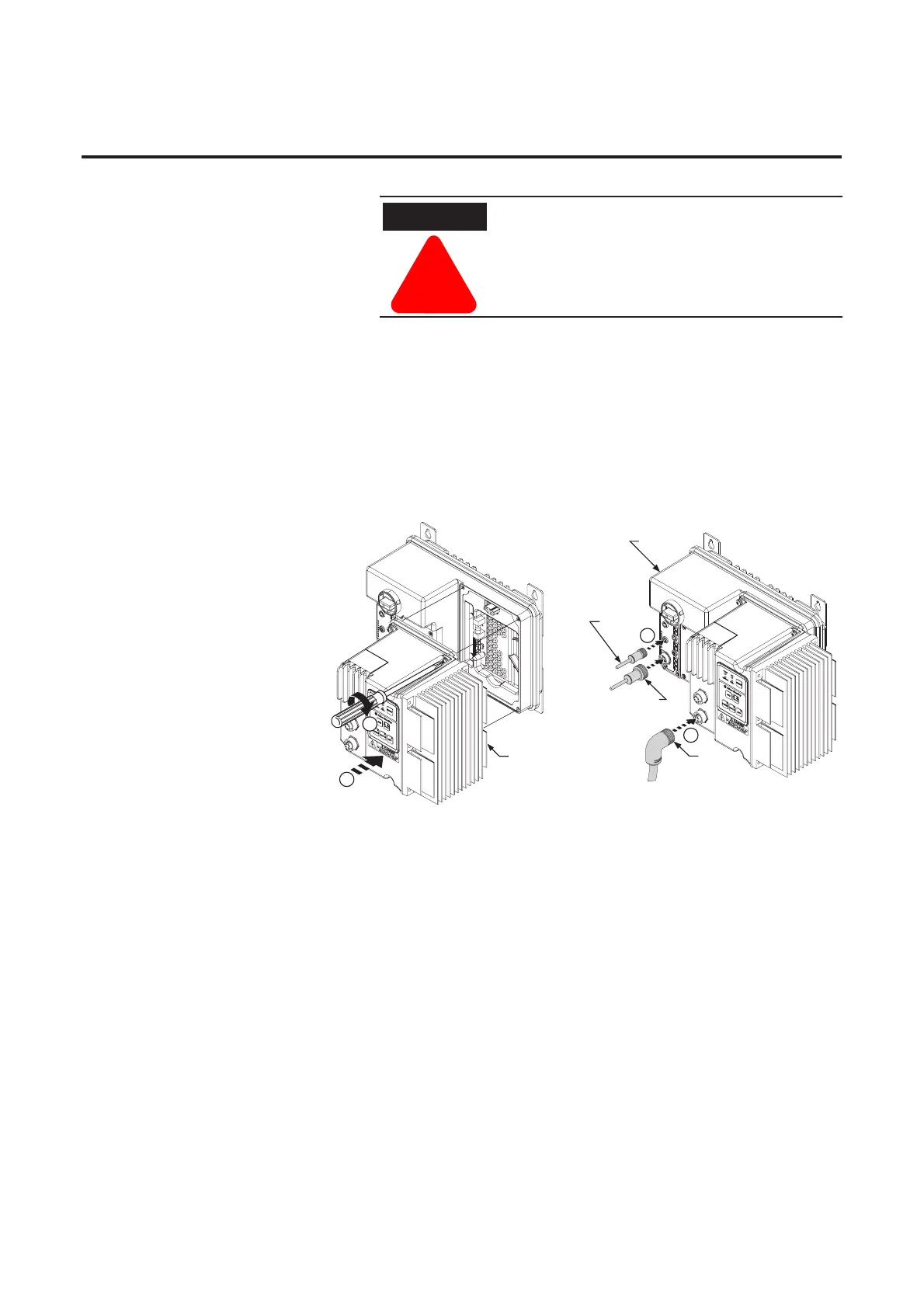

Figure 10.6 Bulletin 284G Base Module Installation
ATTENTION
!
To avoid shock hazard, disconnect main power
before working on the controller, motor, or control
devices
2
3
4
4
Base Module
Input/
Output
Cable
Communication
Cable
Motor
Cable
Control
Module
