Part Names

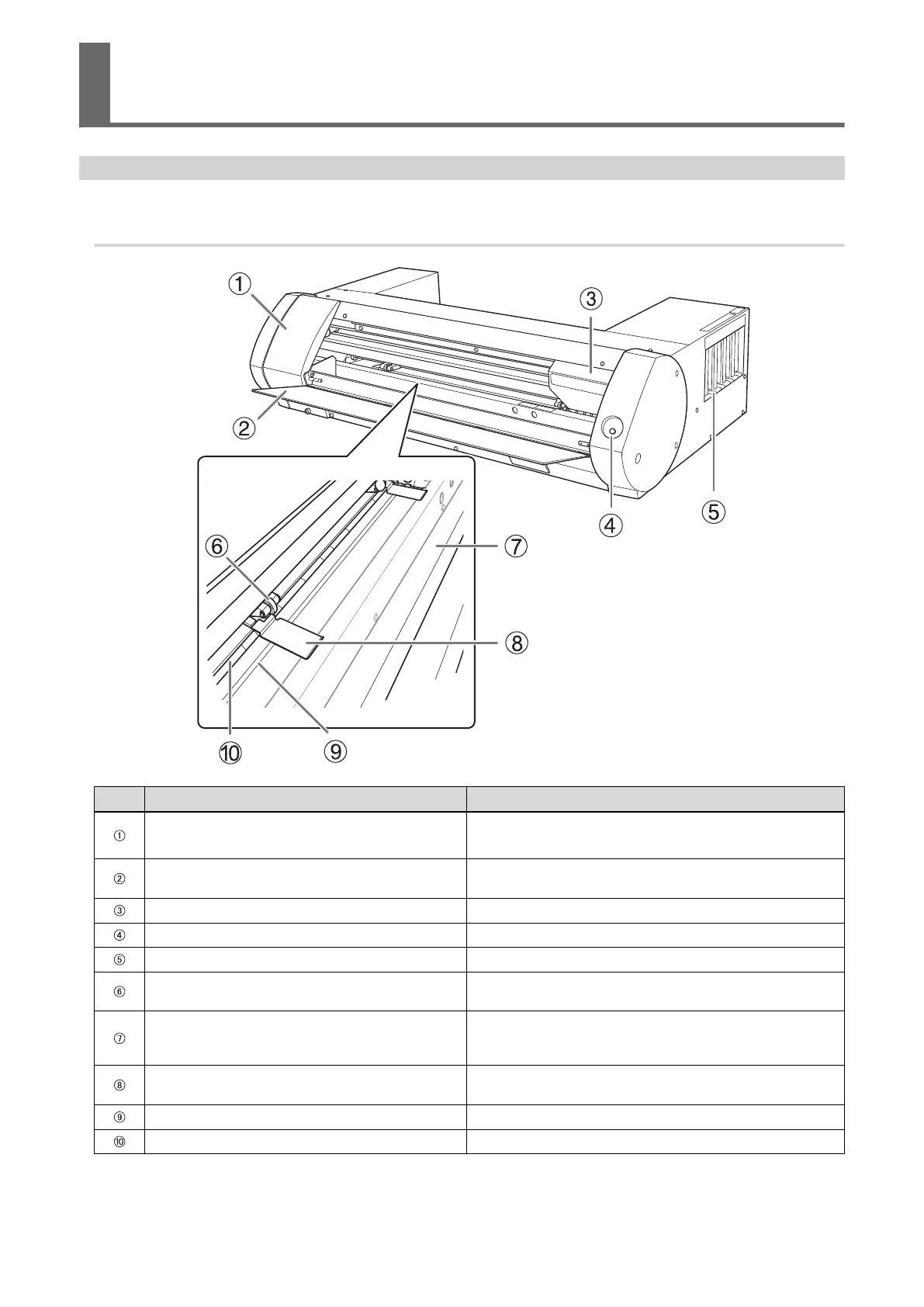

Front
No. Name Function overview
Maintenance cover
Remove when performing manual cleaning.
P. 72Manual Cleaning
Front cover
Keep this cover closed except when necessary, such as when
loading media.
Print-head carriage The print heads and blade are inside this carriage.
[POWER]Key Switches the printer on and off.
Cartridge slots The location where ink cartridges are installed.
Pinch roller
These clamp the media when the loading lever is moved to the
front of the machine. The right pinch roller is fixed in place.
Platen
This is the path over which the media passes. A suction fan that
keeps the media from coming loose and a print heater that helps
fix the ink are built in.
Media clamp
These keep the media from coming loose and prevent fuzz on the
cut edge of the media from touching the print heads.
Blade protector This protects the tip of the blade during cutting.
Grit roller These rollers feed out media toward the front of the machine.
