Rosemount 8712C - Taylor Flowtubes; Series 1100 Flowtube to Model 8712 U Transmitter

B-23
Wiring Diagrams
TAYLOR FLOWTUBES
Connect coil drive and electrode cables as shown in Figure B-22.
Series 1100 Flowtube to
Model 8712U Transmitter

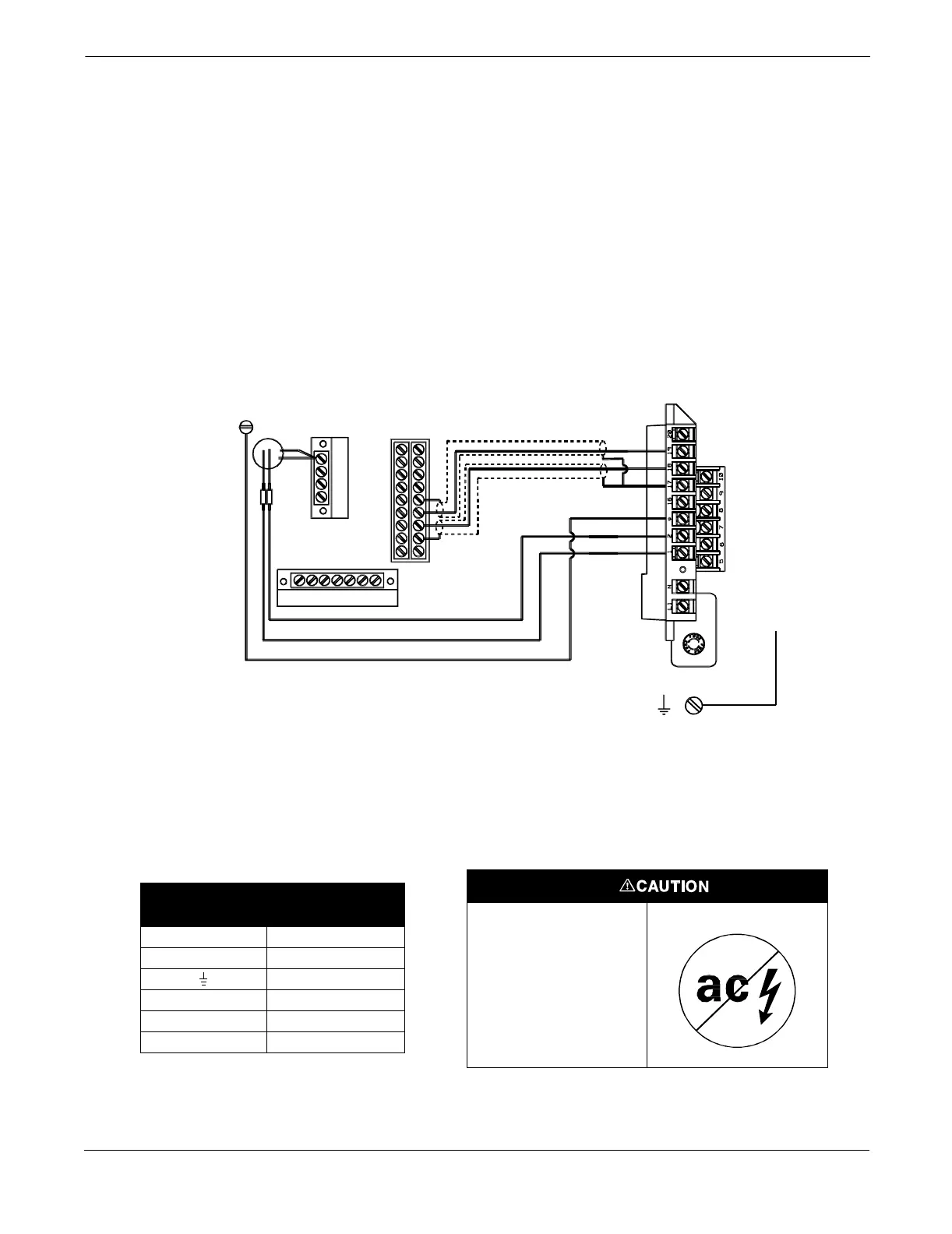

FIGURE B-22. Wiring Diagram for
Taylor Series 1100 Flowtubes and
Rosemount Model 8712U
ROSEMOUNT MODEL
8712U TRANSMITTER
Electrode Connections
Coil Connections
TAYLOR SERIES 1100
FLOWTUBE
8712-8712J11A
LNG123 4
C
L
A
R
E22
E21
E12
E12
S2
E2
E1
S1
GND
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals 1 and 2 of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-22. Taylor Series 1100 Flowtube
Wiring Connections
Rosemount
Model 8712U
Taylor Series 1100
Flowtubes
1Black
2White
Green
17 S1 and S2
18 E1
19 E2
