Rosemount 8712C - Spare Parts

6-7
Specifications
SPARE PARTS

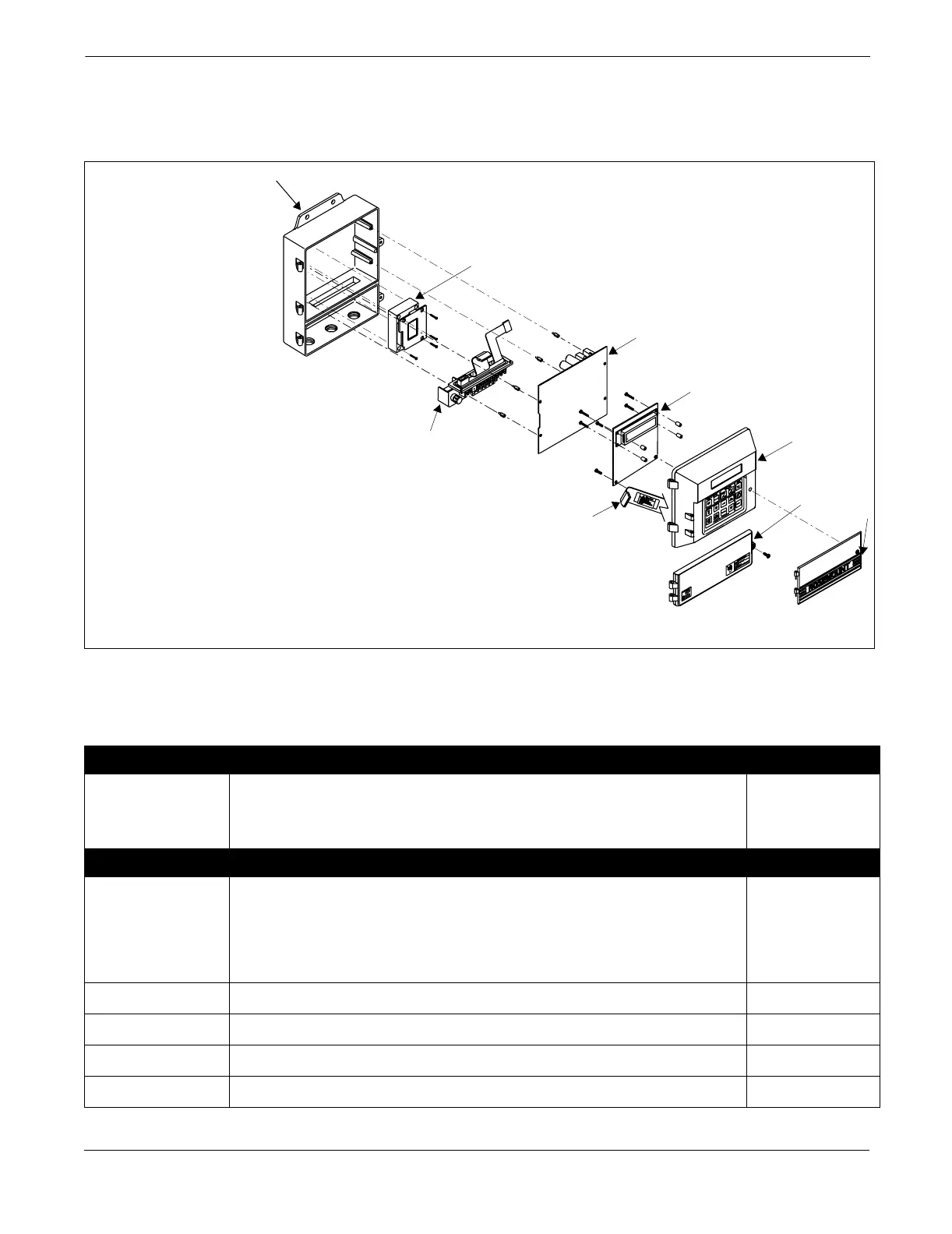

FIGURE 6-1. Model 8712C/U Exploded View Drawing (refer to Table ?-??)
TABLE 6-1. Model 8712C/U Spare Parts (refer to Figure ?-??)
➈
➁
➀
➅
➄
➃
➇
➆
➂
➀ Electronic Board
➁ Transformer Block Assembly
➂ Terminal Block Assembly
➃ Cover, Lower Assembly
➄ Local Operator Interface Assembly
➅ Backlit LOI Electronics Board
➆ LOI Connector Assembly
➇ Cover, Switch Assembly
➈ Housing Base Assembly
8712-017AHLC
Contact factory for Model 8712H spare parts.
Drawing Reference Part Description Part Number
➀ Electronics Kits (115 V ac) with battery-backed Totalizer and Transformer
Electronics Kits (230 V ac) with battery-backed Totalizer and Transformer
Electronics Kits (10-30 V dc) with battery-backed Totalizer and Wiring Harness
Electronics Kit with battery-backed Totalizer (Replaces 08712-0507-0031)
08712-0533-0032
08712-0533-0034
08712-0533-0036
08712-0507-0032
Additional Hardware
➁
Transformer Block Assembly Kit 115 V ac
(includes block, mounting hardware, wiring diagram, and fuse)
Transformer Block Assembly 230 V ac
(includes block, mounting hardware, wiring diagram, and fuse)
Wiring Harness Assembly Kit 10 to 30 V dc
(includes harness, mounting hardware, wiring diagram, and fuse)
08712-0513-0002
08712-0516-0002
08712-0529-0002
➂
Terminal Block Assembly 08712-0044-0002
➃
Lower Compartment Cover 08712-0063-0010
➄
Complete LOI Assembly (Includes Backlit Display Kit, LOI Connector, and Cover) 08712-0015-0002
➅
Backlit Display Electronics Kit with LOI Connector Assembly 08712-0096-0001
Spare Parts continued on next page
