Rosemount 8712C - Brooks Flowtubes

B-7
Wiring Diagrams
BROOKS FLOWTUBES

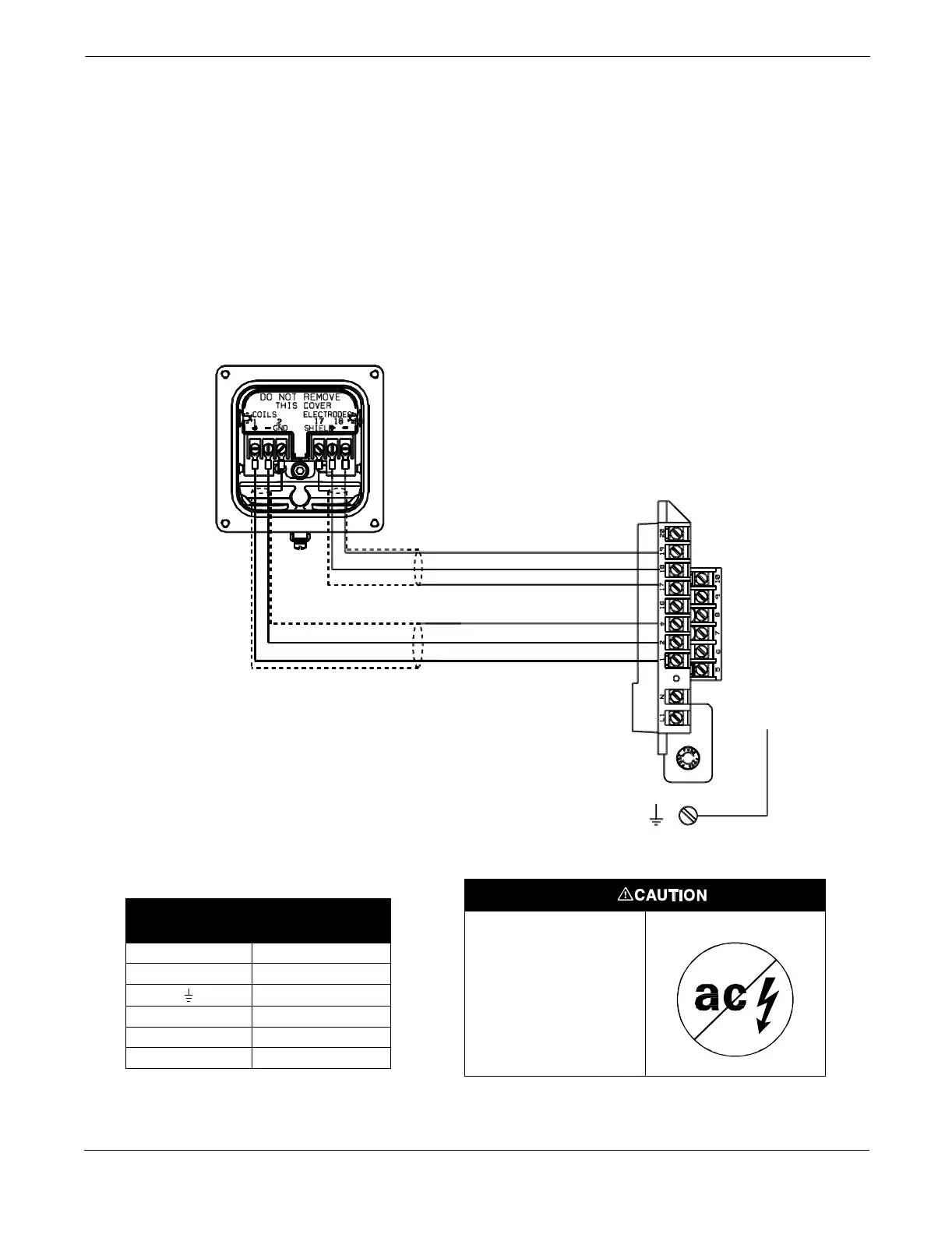

Connect coil drive and electrode cables as shown in Figure B-6.
Model 5000 Flowtube to
Model 8712U Transmitter
FIGURE B-6. Wiring Diagram for
Brooks Flowtube Model 5000 and
Rosemount Model 8712U
BROOKS
MODEL 5000
ROSEMOUNT MODEL
8712U TRANSMITTER
8712-8712P11A
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals1and2of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-6. Brooks Model 5000 Flowtube
Wiring Connections
Rosemount
Model 8712U
Brooks Flowtubes
Model 5000
11
22
Ground
17 17
18 18
19 19
