Model 8712C/U/H Magnetic Flowmeter Transmitters
B-2
ROSEMOUNT
FLOWTUBES
Model 8705/8707/8711
Flowtubes to
Model 8712C/U Transmitter

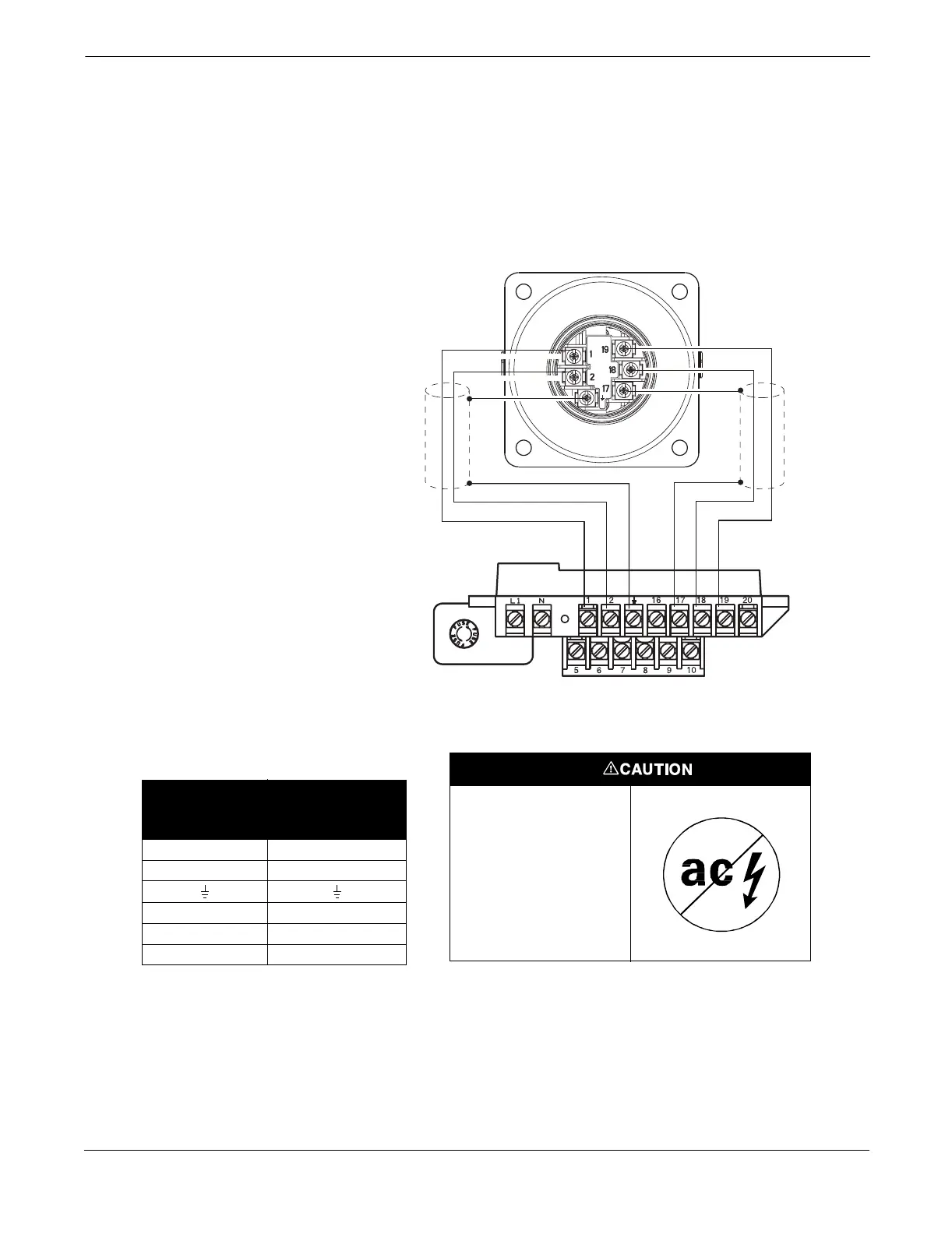

Connect coil drive and electrode cables as shown in Figure B-1.
FIGURE B-1. Wiring Diagram to
Model 8712C/U/H Transmitter
8712-04A
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals 1 and 2 of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-1. Rosemount Model
8705/8707/8711 Flowtube
Wiring Connections
Rosemount
Model 8712C/U/H
Transmitters
Rosemount Model
8705/8707/8711
Flowtubes
11
22
17 17
18 18
19 19
