Rosemount 8712C - Kent Veriflux VTC Flowtube; Veriflux VTC Flowtube to Model 8712 U Transmitter

Model 8712C/U/H Magnetic Flowmeter Transmitters
B-20
KENT VERIFLUX VTC
FLOWTUBE
Connect coil drive and electrode cables as shown in Figure B-19.
Veriflux VTC Flowtube to
Model 8712U Transmitter

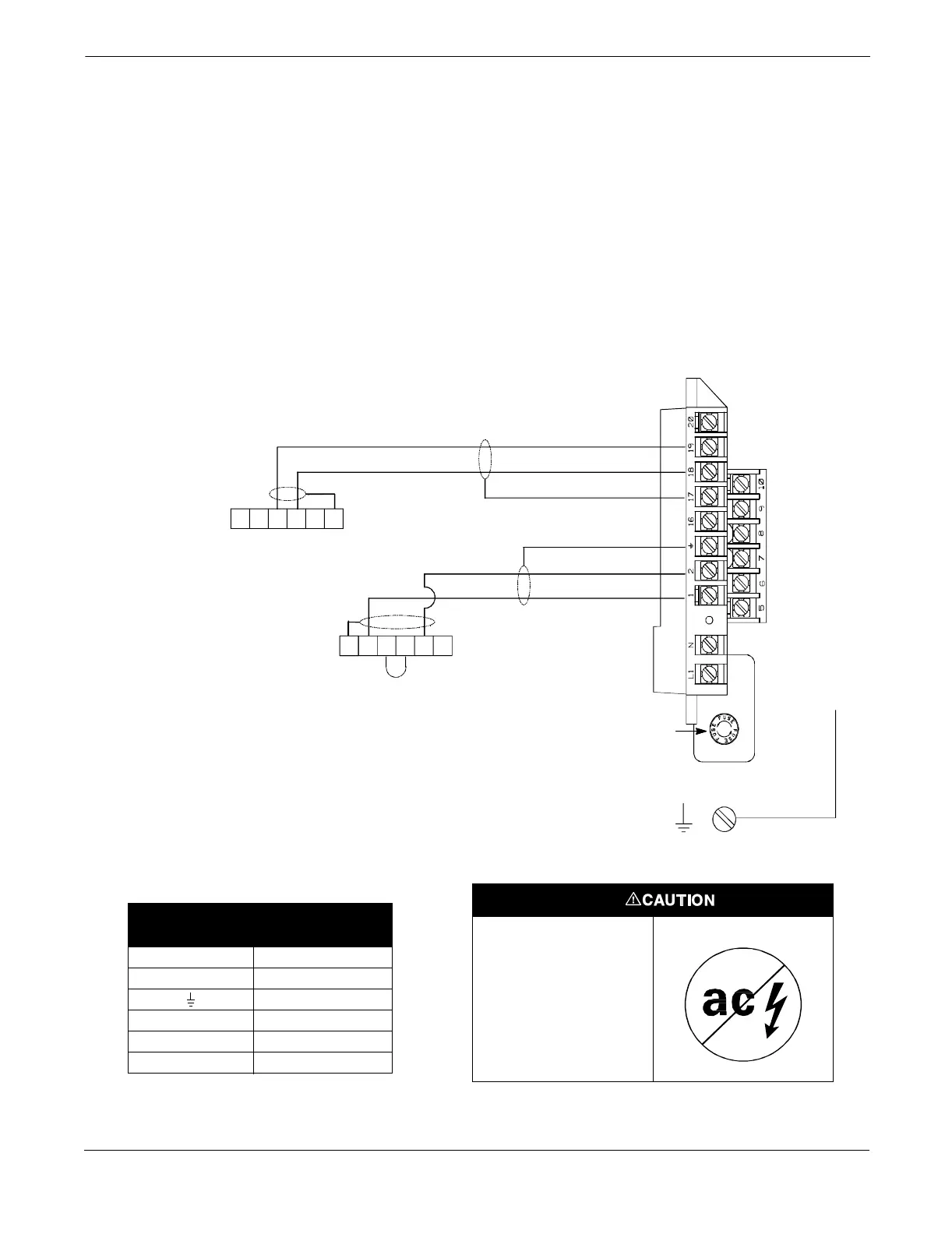

FIGURE B-19. Wiring Diagram for
Kent Veriflux VTC Flowtube and
Rosemount Model 8712U
Electrode Connections
Coil Connections
ROSEMOUNT MODEL
8712U TRANSMITTER
KENT VERIFLUX VTC
FLOWTUBE
8712-8712I11A
1SCR OUT 2 3SIG1 4SIG2 5 6
1 2– 5+ 6SCROUT
This is a pulsed dc
magneticflowmeter. Do
not connect ac power
to the flowtube or to
terminals1and2of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-19. Kent Veriflux VTC Flowtube
Wiring Connections
Rosemount
Model 8712U
Kent Veriflux VTC
Flowtubes
12
21
SCR OUT
17 SCR OUT
20 SIG2
19 SIG1
