Rosemount 8712C - Model 10 D1419 Flowtube to Model 8712 U Transmitter

B-11
Wiring Diagrams
Model 10D1419 Flowtube to
Model 8712U Transmitter
Connect coil drive and electrode cables as shown in Figure B-10.

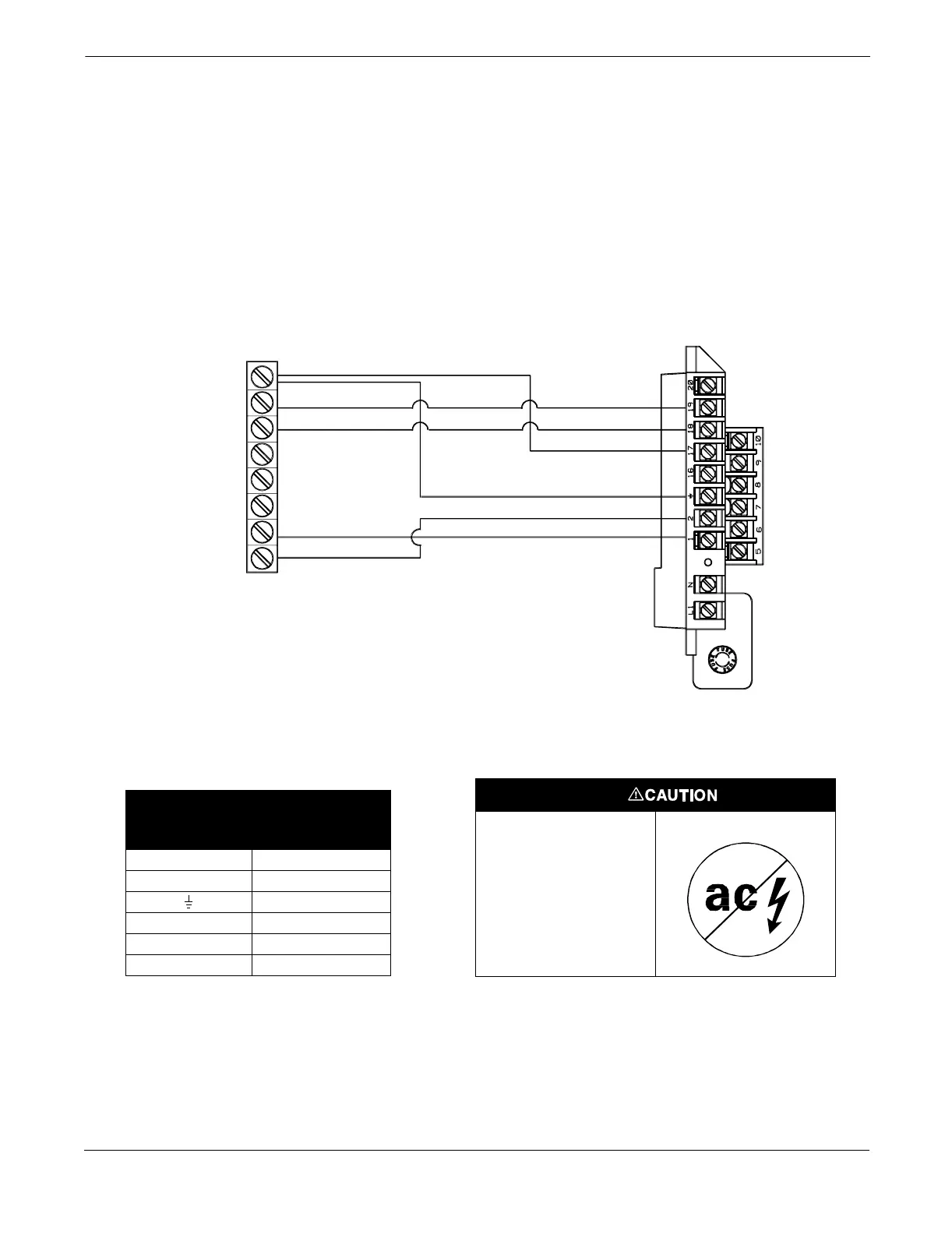

FIGURE B-10. Wiring Diagram for
Fischer and Porter Flowtube Model
10D1419 and Rosemount
Model 8712U
ROSEMOUNT MODEL
8712U TRANSMITTER
8712-1001A
3
2
1
18
L1
L2
16
17
Electrode Connections
Coil Connections
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals1and2of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-10. Fischer and Porter Model
10D1419 Flowtube Wiring Connections
Rosemount
Model 8712U
Fischer and Porter
Model 10D1419
Flowtubes
1L1
2L2
3
17 3
18 1
19 2
