Rosemount 8712C - Taylor Flowtube to Model 8712 U Transmitter

Model 8712C/U/H Magnetic Flowmeter Transmitters
B-24
Taylor Flowtube to
Model 8712U Transmitter
Connect coil drive and electrode cables as shown in Figure B-23.

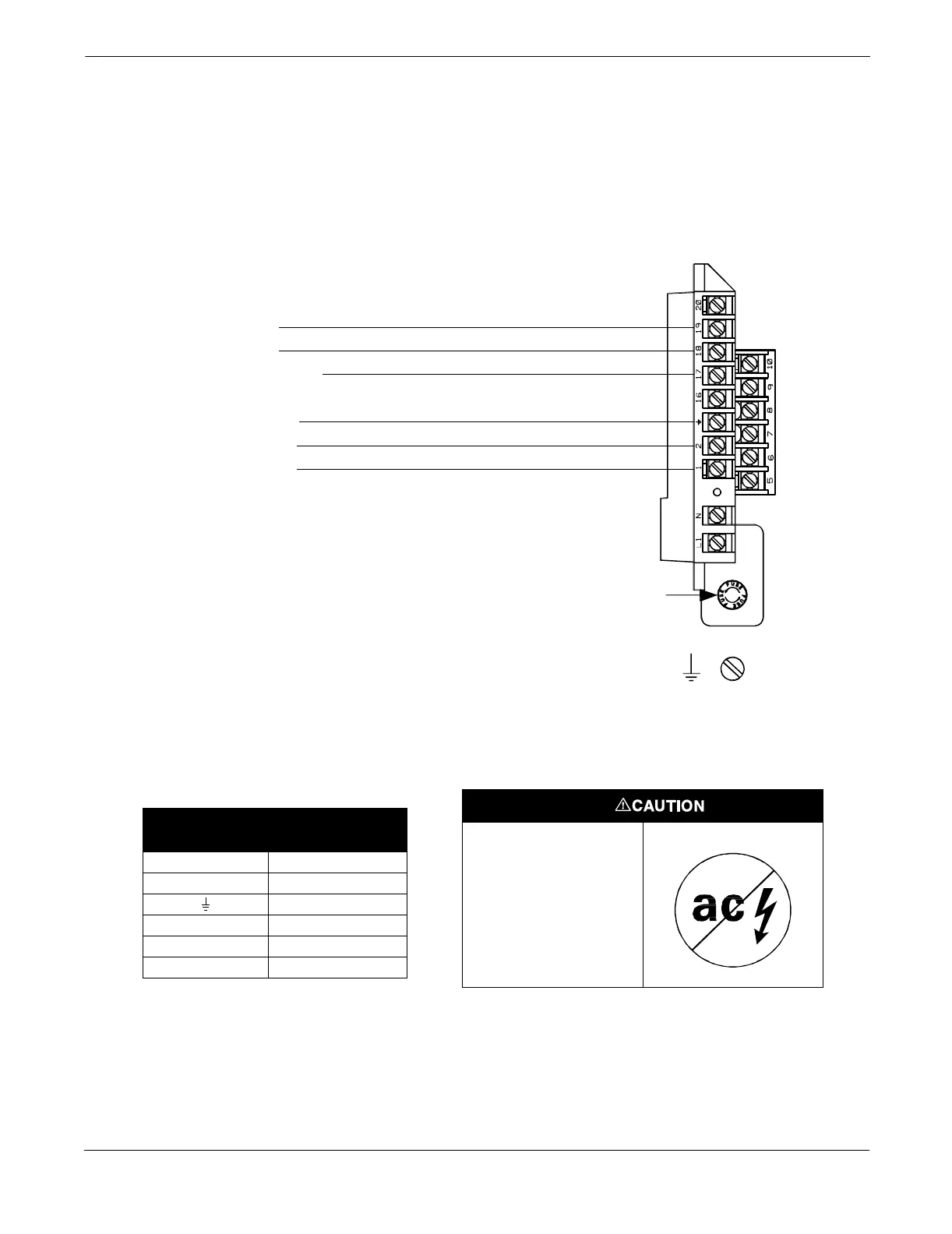

FIGURE B-23. Generic Wiring Diagram
for Taylor Flowtubes
Electrodes
E2
E1
S1 and S2
Coils
Green
White
Black
ROSEMOUNT MODEL
8712U TRANSMITTER
TAYLOR
FLOWTUBE
8712-8712E01A
Fuse
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals 1 and 2 of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-23. Taylor Flowtube
Wiring Connections
Rosemount
Model 8712U
Taylor
Flowtubes
1Black
2White
Green
17 S1 and S2
18 E1
19 E2
