Wiring Diagrams
Model 8707 High-Signal
Flowtube to Model 8712H
High-Signal Transmitter

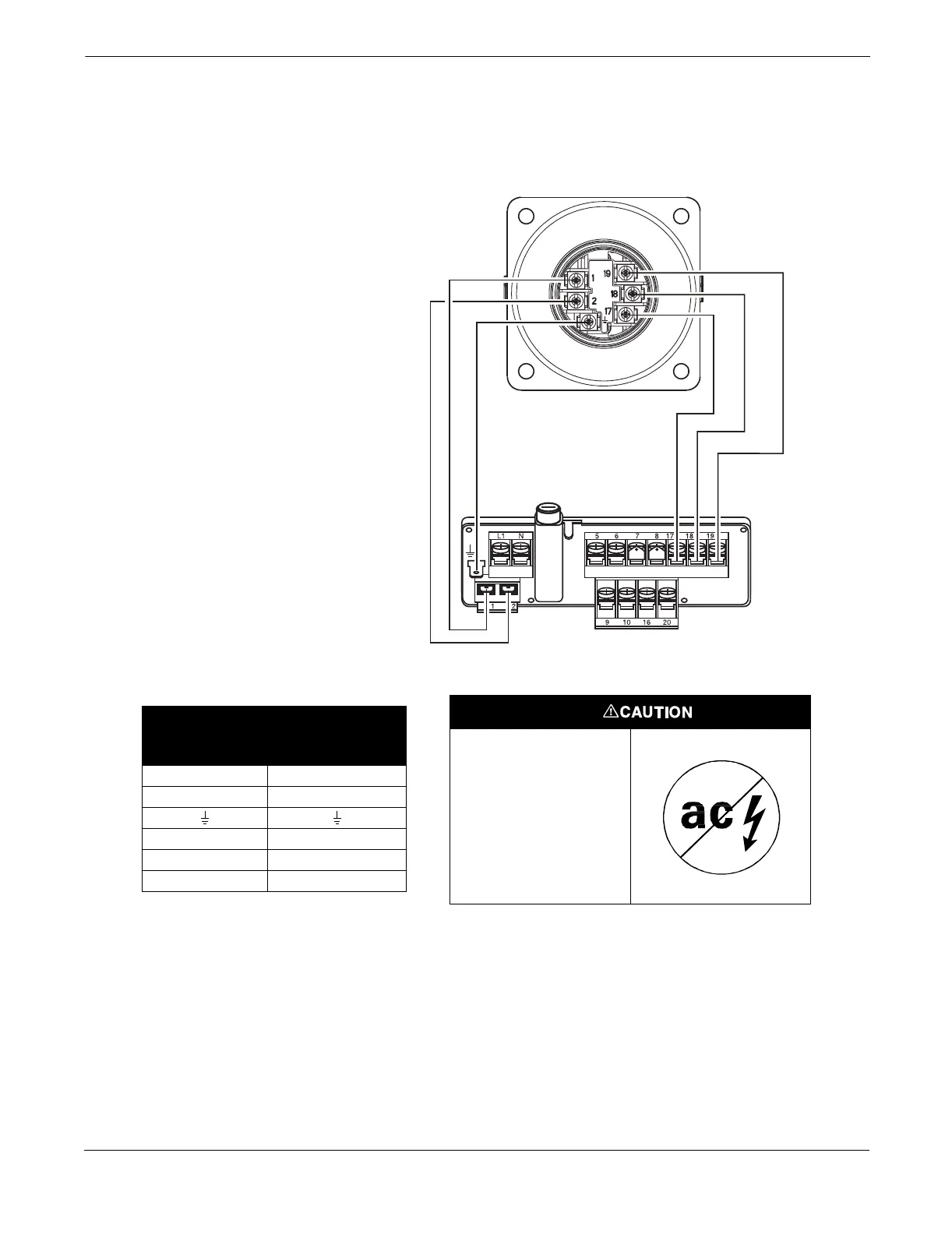

Connect coil drive and electrode cables as shown in Figure B-2.
FIGURE B-2.
Wiring Diagram to Model 8712H
High-Signal Transmitter
8712-03A
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals 1 and 2 of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-2. Rosemount Model 8707
Flowtube Wiring Connections
Rosemount
Model 8712H
Transmitters
Rosemount Model
8707 Flowtubes
11
22
17 17
18 18
19 19
