Rosemount 8712C - Model 10 D1430 Flowtube (Remote) to Model 8712 U Transmitter

Model 8712C/U/H Magnetic Flowmeter Transmitters
B-12
Model 10D1430 Flowtube
(Remote) to Model 8712U
Transmitter
Connect coil drive and electrode cables as shown in Figure B-11.

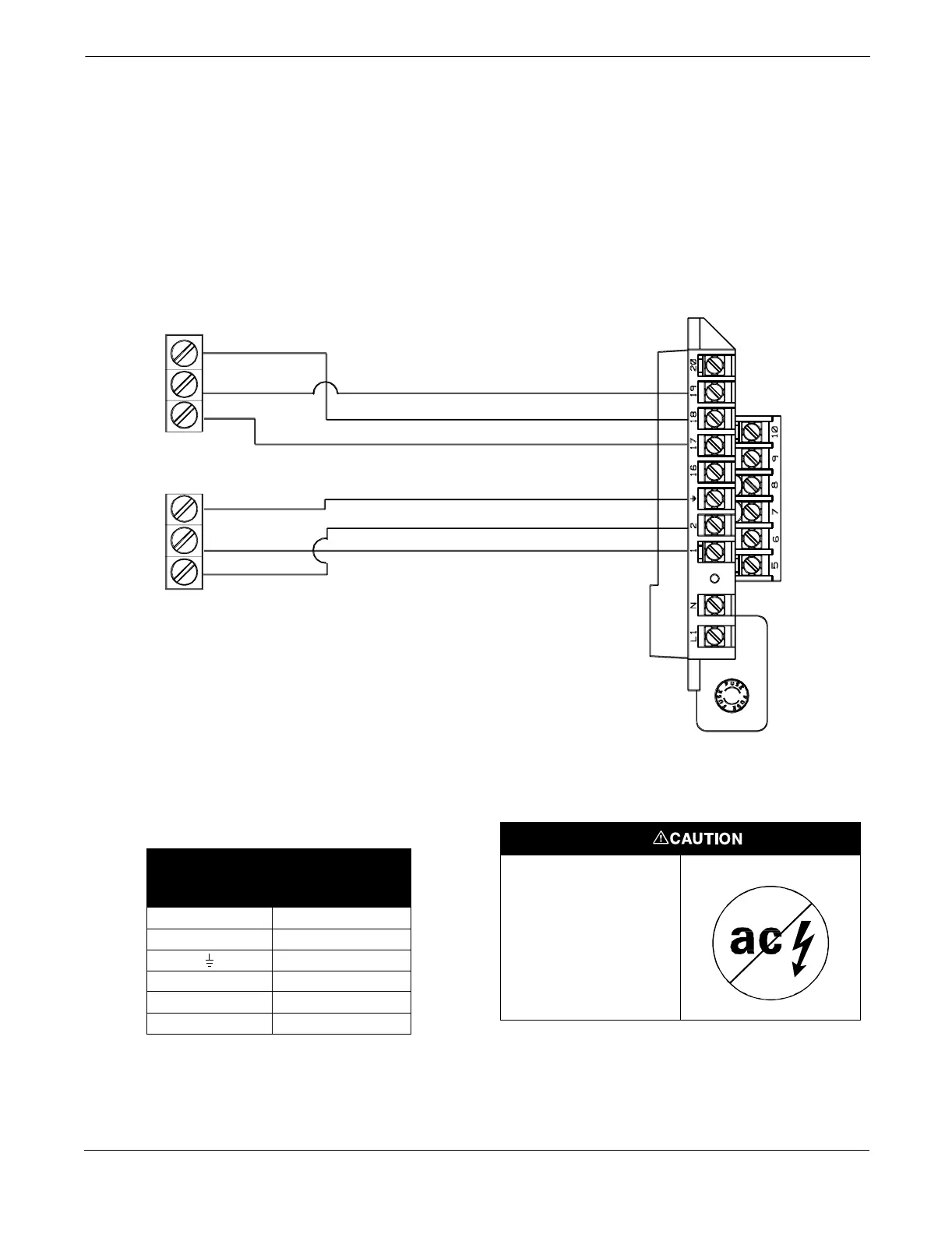

FIGURE B-11. Wiring Diagram for
Fischer and Porter Flowtube
Model 10D1430 (Remote) and
Rosemount Model 8712U
ROSEMOUNT MODEL
8712U TRANSMITTER
1
2
3
G
L1
8
8712-1000A01C
Coil Connections
Electrode Connections
This is a pulsed dc
magnetic flowmeter.Do
not connect ac power
to the flowtube or to
terminals1and2of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-11. Fischer and Porter
Model 10D1430 (Remote) Flowtube
Wiring Connections
Rosemount
Model 8712U
Fischer and Porter
Model 10D1430
(Remote) Flowtubes
1L1
28
G
19 3
18 1
17 2
