Rosemount 8712C - Model 8701 Flowtube to Model 8712 U Transmitter

Model 8712C/U/H Magnetic Flowmeter Transmitters
B-4
Model 8701 Flowtube to
Model 8712U Transmitter
Connect coil drive and electrode cables as shown in Figure B-3.

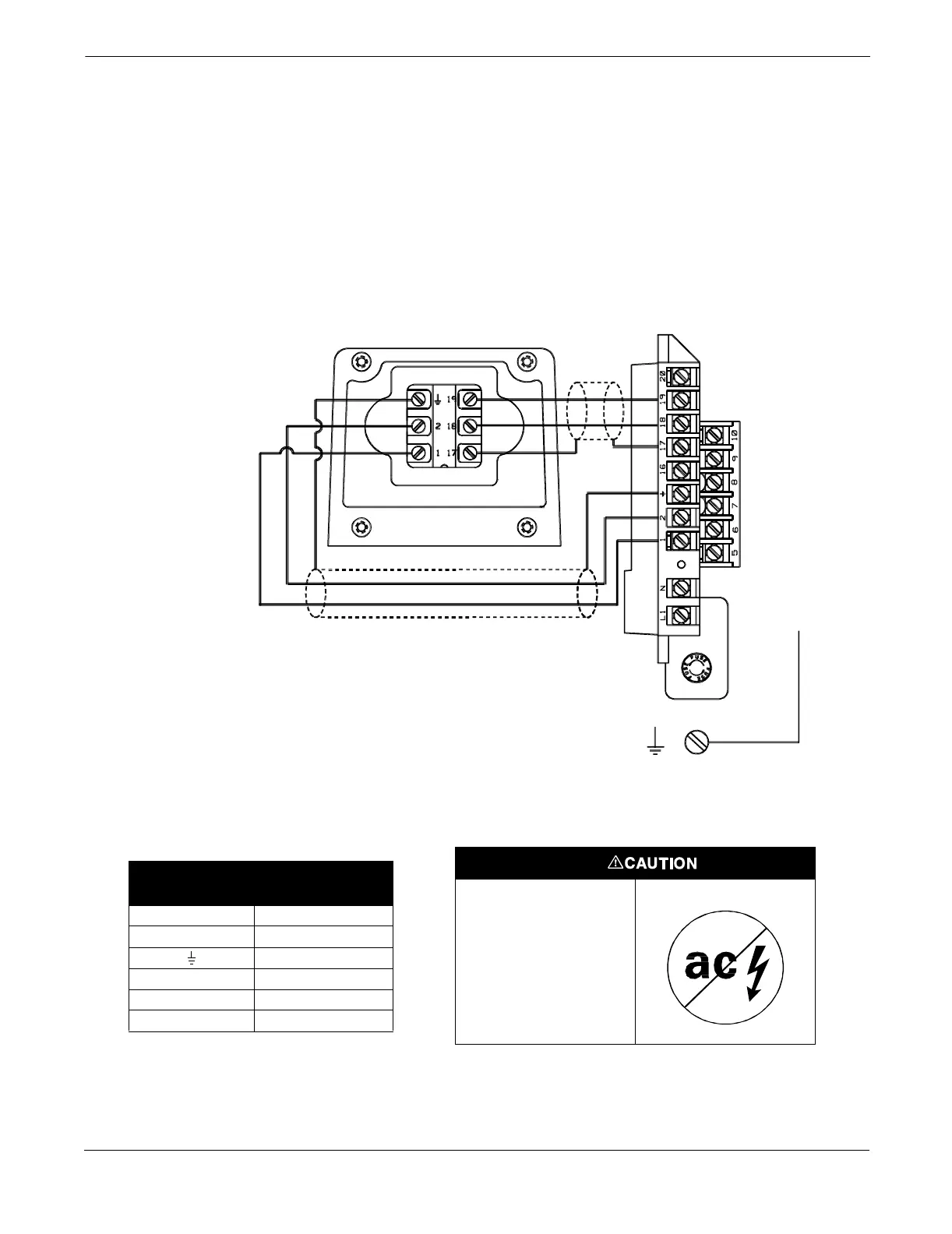

FIGURE B-3. Wiring Diagram for
Rosemount Model 8701 Flowtube and
Rosemount Model 8712U Transmitter
8712-8712O11A
ROSEMOUNT MODEL
8701 FLOWTUBE
ROSEMOUNT MODEL
8712U TRANSMITTER
This is a pulsed dc
magnetic flowmeter. Do
not connect ac power
to the flowtube or to
terminals 1 and 2 of
the transmitter,or
replacement of the
electronics board will
be necessary.
TABLE B-3. Rosemount Model 8701
Flowtube Wiring Connections
Rosemount
Model 8712U
Rosemount Model
8701 Flowtubes
11
22
Ground
17 17
18 18
19 19
