Graphic

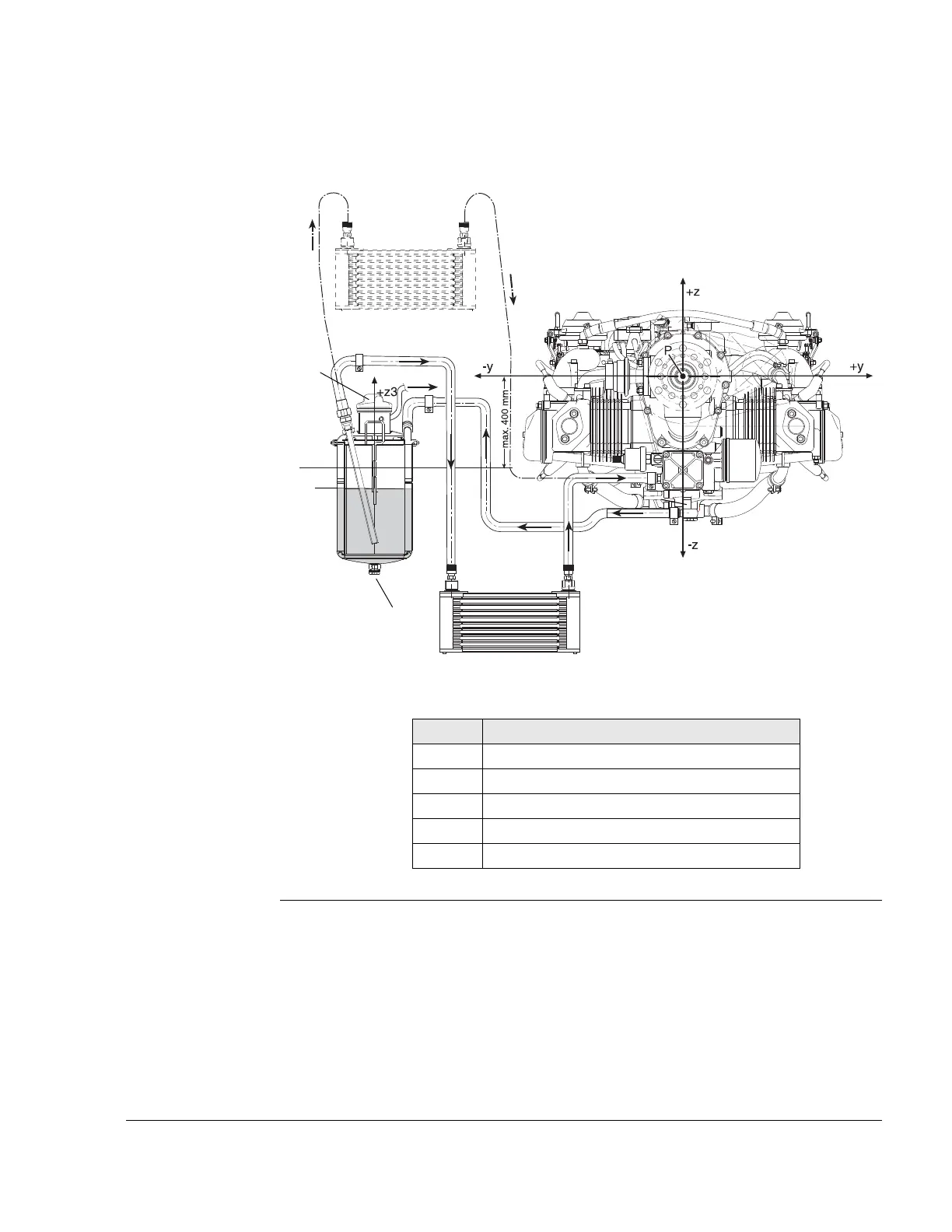

Position and location of the oil tank and oil cooler
Fig. 11 09162
Part Function
1 Oil tank
2 Oil level
3 Oil tank cover
4 Oil drain screw
5 Oil cooler
5
5
3
1
4
2
