Rotax 912 Series Installation Manual

d04920.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
24-00-00
page 6
August 01/2012
2.2) Rectifier regulator
Type Electronic full-wave rectifier regulator.
Output voltage 14.2 V± 0.3 (from 1000 ± 250 rpm).
Current limit Current limit:
Max. 22 A.
Component tem-
perature
Max. permissible component temperature:
+80 °C (176 °F) (measured in area (1)).
NOTE: The performance specifications are given for optimal
cooled components. If necessary, use a separate heat sink
for the rectifier regulator.
Weight See chap. 72-00-00 section: weight.

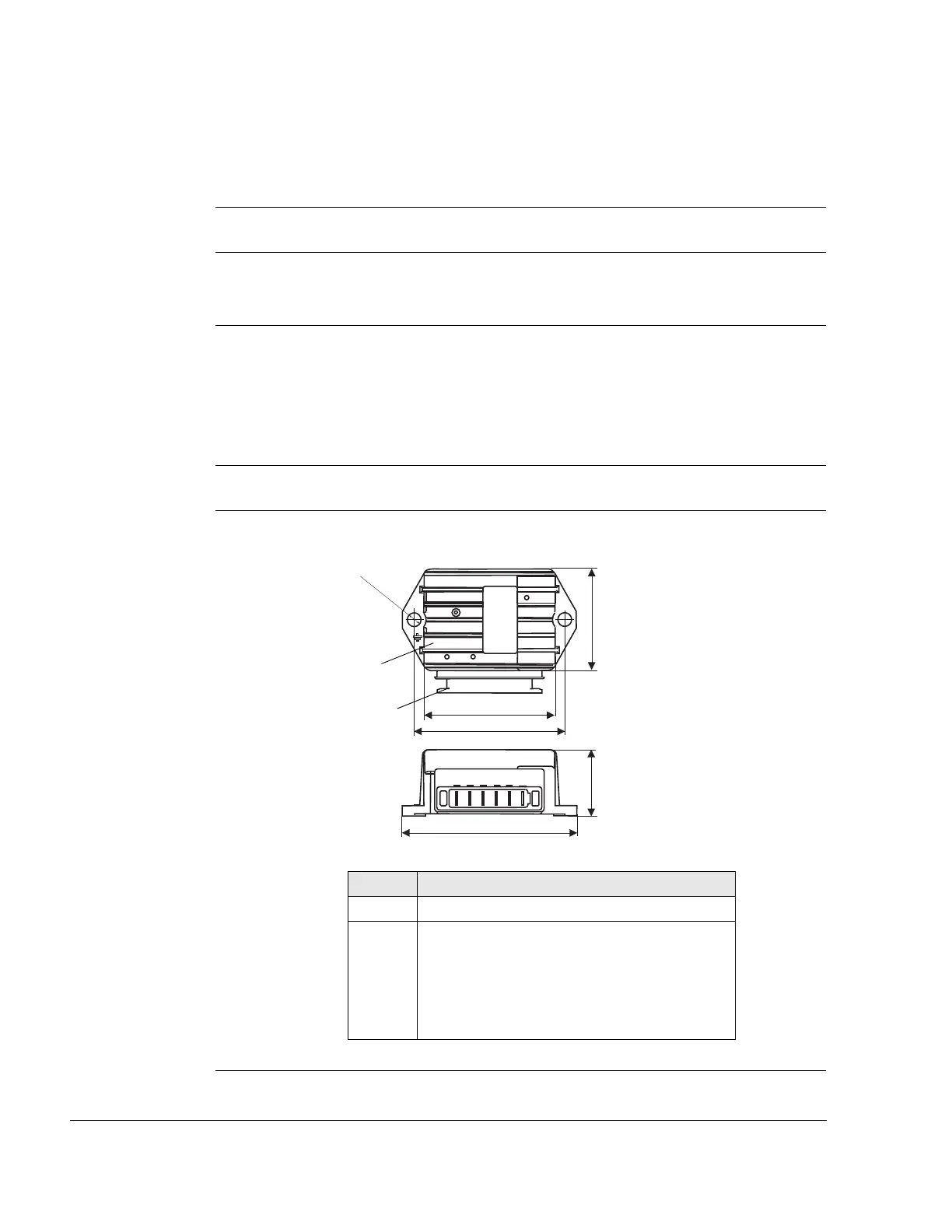

Graphic Connection
Fig. 2 08631
Part Function
1 Area component temperature
2 Description of connections:
G = yellow - from generator
R = red - to battery, positive terminal
B = battery positive terminal
L = warning lamp circuit
C = control or field circuit
G
G
R
L
C
B
62 (2.44 in.)
8,4 (0.33 in.)
92 (3.62 in.)
80 (3.15 in.)
106 (4.18 in.)
40 (1.48 in.)
1
2

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
