2) Carburetor
General note See Fig. 6.
The carburetors on the standard engine are already attached by a flexible
flange (and connecting hoses on the airbox). Only connections of the
Bowden cable for preheating, choke and throttle have to be established.
It is recommended, to make the adjustment of the Bowden cable after
engine installation has been completed, to ensure exact final adjustment.
Graphic Carburetor socket
Fig. 6 05794
2.1) Requirements on the carburetor

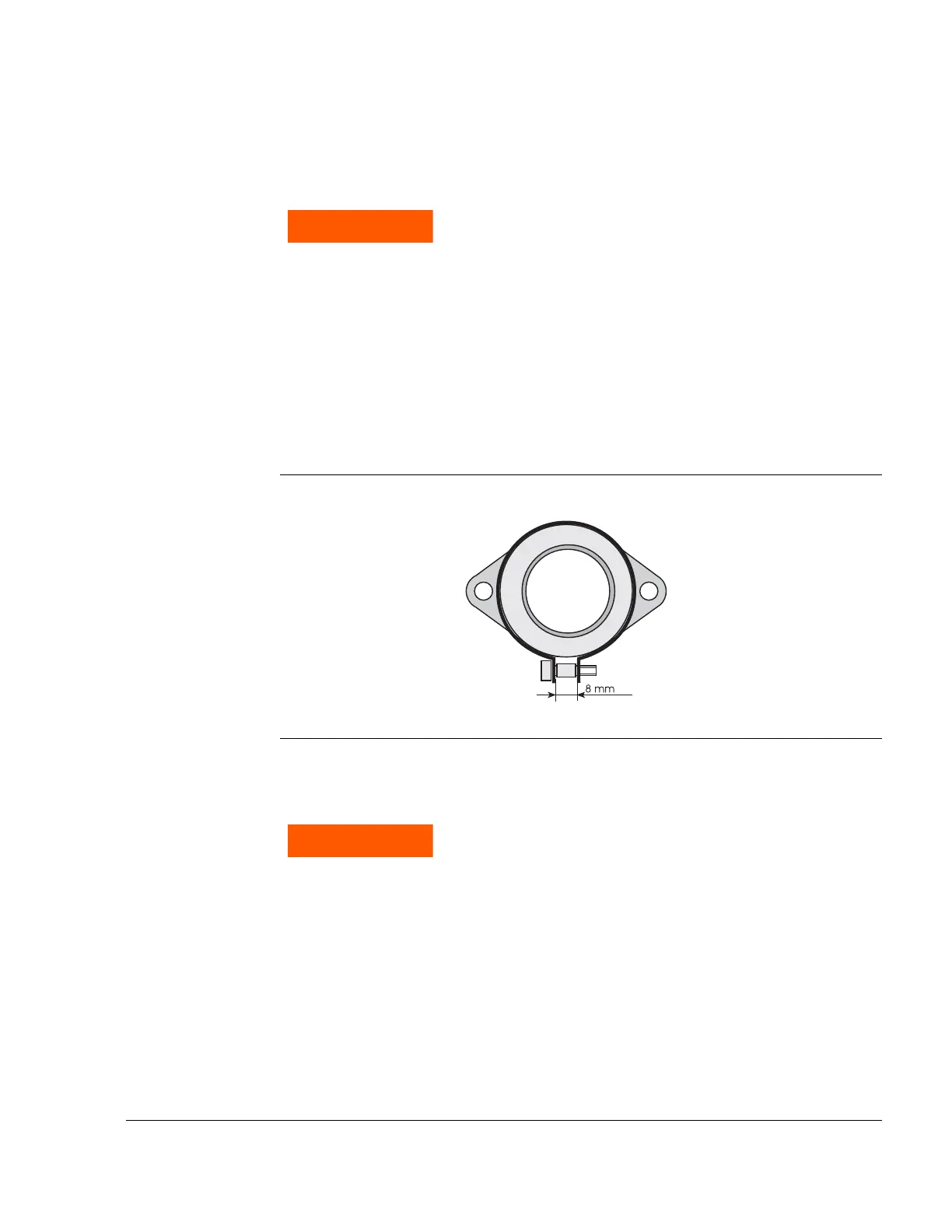

General note See Fig. 7.
Non-compliance can result in serious injuries or death!
The carburetor flange assembly has to carry the
weight of the carburetor and intake system. Ensure
that the screw of the clamp is positioned on the under-
side as supplied and the gap between the clamp plates
is 8 mm (.31 in.).
Non-compliance can result in serious injuries or death!
In the area of the float chamber the temperature limit
of the fuel must not be exceeded.
If necessary install additional insulation or heat
shields. Certification to the latest requirements such as
FAR or EASA has to be conducted by the aircraft
manufacturer.
