1.2) Operating limits
General note
See 912 Series Operators Manual, section 2.1) Operating Limits.
1.2.1) Fuel pressure
General note See Fig. 3.
NOTE: Readings of the fuel pressure are taken at the pressure
gauge connection on the fuel manifold.
Operating limits Fuel pressure:
* applicable only for fuel pump from S/N 11.0036.

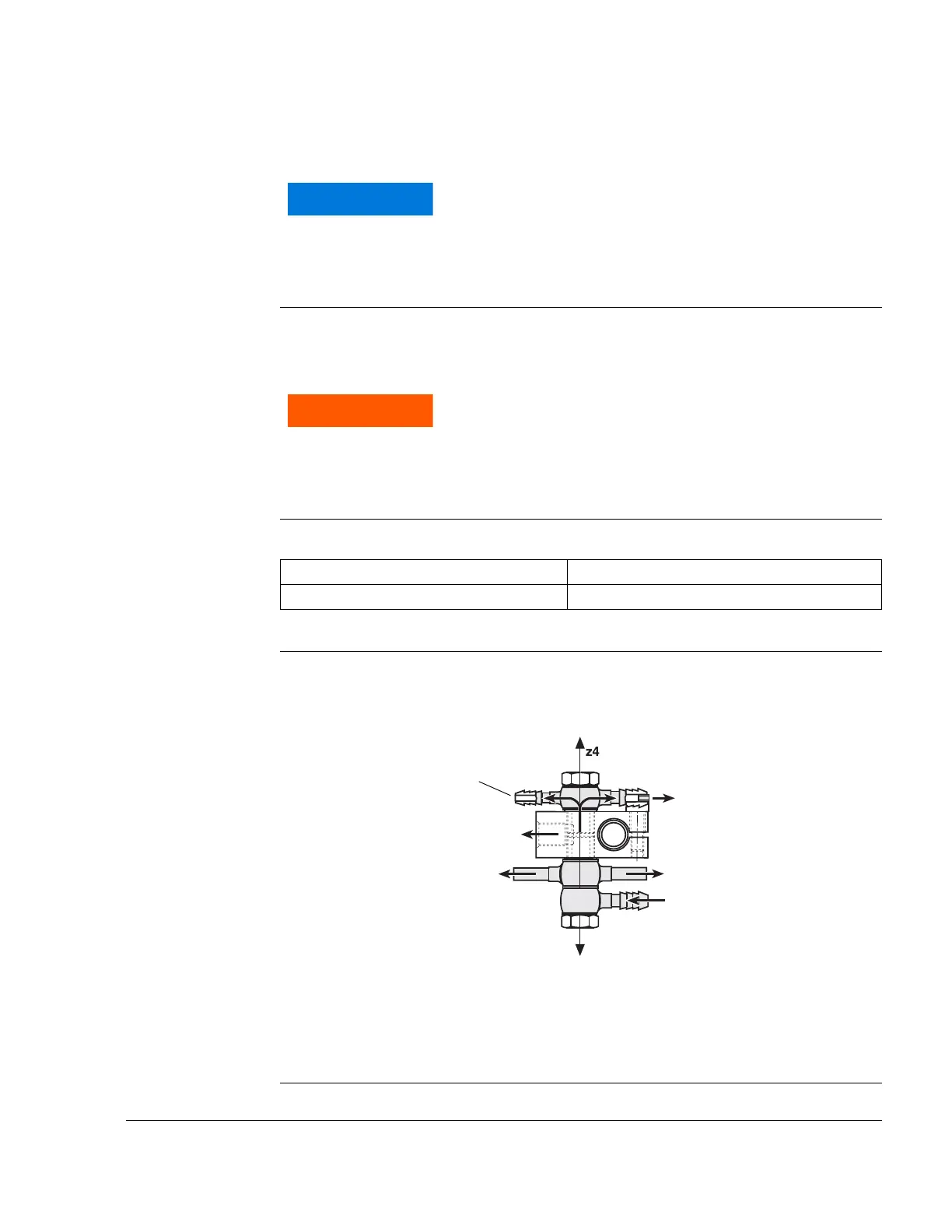

Graphic Fuel pressure
Fig. 3 09139

WARNUNG
NOTICE
The design and layout of the entire fuel system must
ensure engine operation within the specified operat-
ing limits.

WARNUNG

WARNING
Non-compliance can result in serious injuries or death!
Fuel pressure in excess of stated limit can lead to an
override of the float valve with subsequent engine stop.
Max. 0.4 bar (0.5 bar (7.26 psi))*
Min. 0.15 bar (2.2 psi)
fuel pressure sensor
connection
to fuel pressure gauge
to carburetor
to carburetor
from fuel pump
to fuel tank
