Graphic
Fuel pump

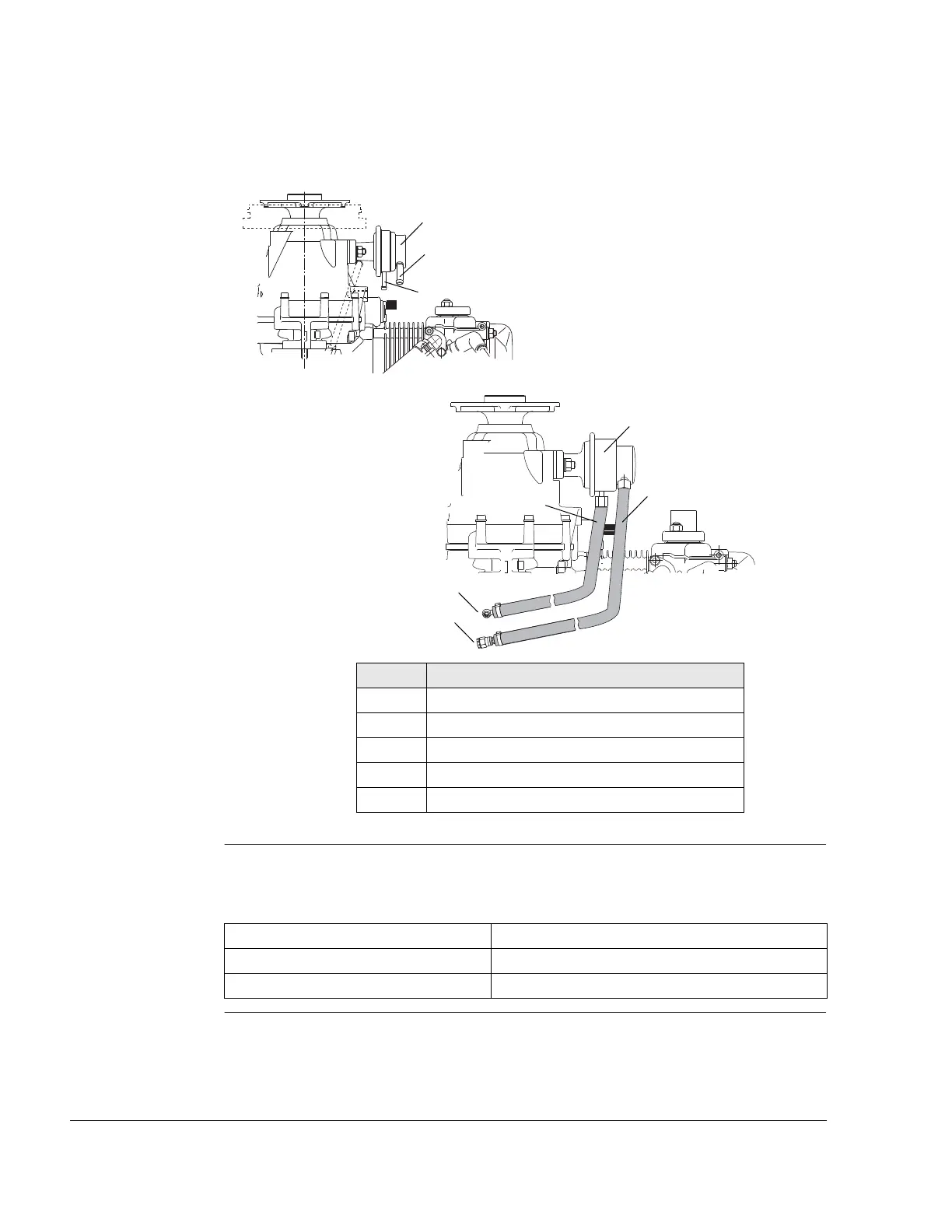

Fig. 5 00537,02064
1.4.3) Check valve
Specification
Part Function
1,2 Fuel pump
3,5 Fuel intake connection
4,6 Fuel outlet connection
7 Hose nipple
8Fitting
2
1
3
4
7
8
5
6
Opening pressure 0.1 bar - 0.15 bar (1.5 psi. - 2.2 psi.)
Permitted pressure in reverse-biasing 2 bar (29 psi.)
Burst pressure 5 bar (72.5 psi.)
