Graphic

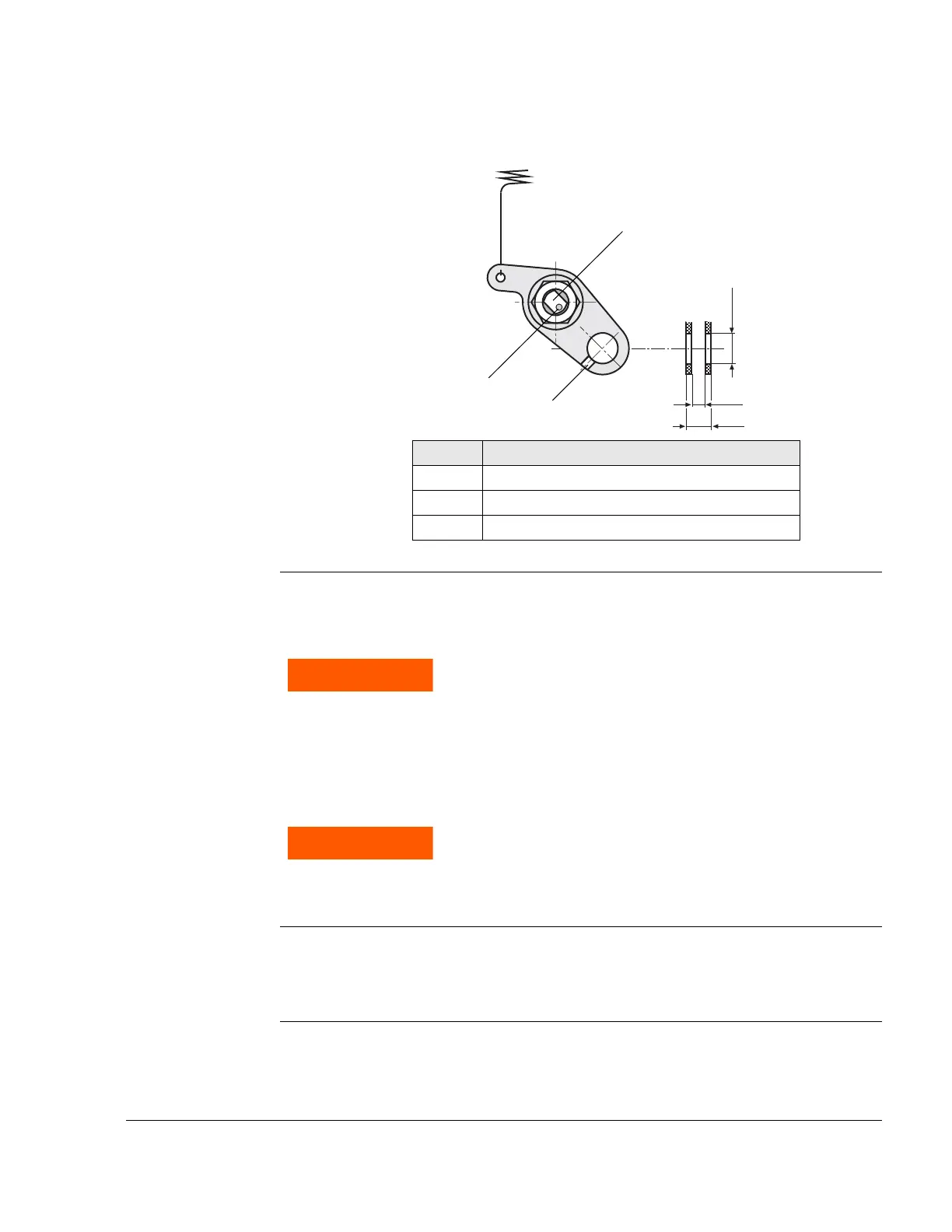

Choke actuation
Fig. 9 00541
2.3) Requirements on cable actuation
General note See Fig. 10.
Bowden cable The two throttles have to be controlled by two separate Bowden cables
working synchronously.
Adjust the cables to a free travel of 1 mm (.04 in.).
Part Function
1 Choke shaft
2Marking
3 Cable engagement
5,2
2,2
ø6,7
1
3
2

WARNUNG

WARNING
Non-compliance can result in serious injuries or death!
With throttle lever not connected the throttle valve will
remain fully open.
The starting position of the throttle valve is there-
fore full throttle!
Therefore never start the engine without connecting
the throttle lever first.

WARNUNG

WARNING
Non-compliance can result in serious injuries or death!
The cable actuations being used must not be affected
at all by vibrations emanating from the engine or the
airframe.

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
