Rotax 912 Series Installation Manual

d04922.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 Series
Edition 2/Rev. 0
72-00-00
page 5
August 01/2012

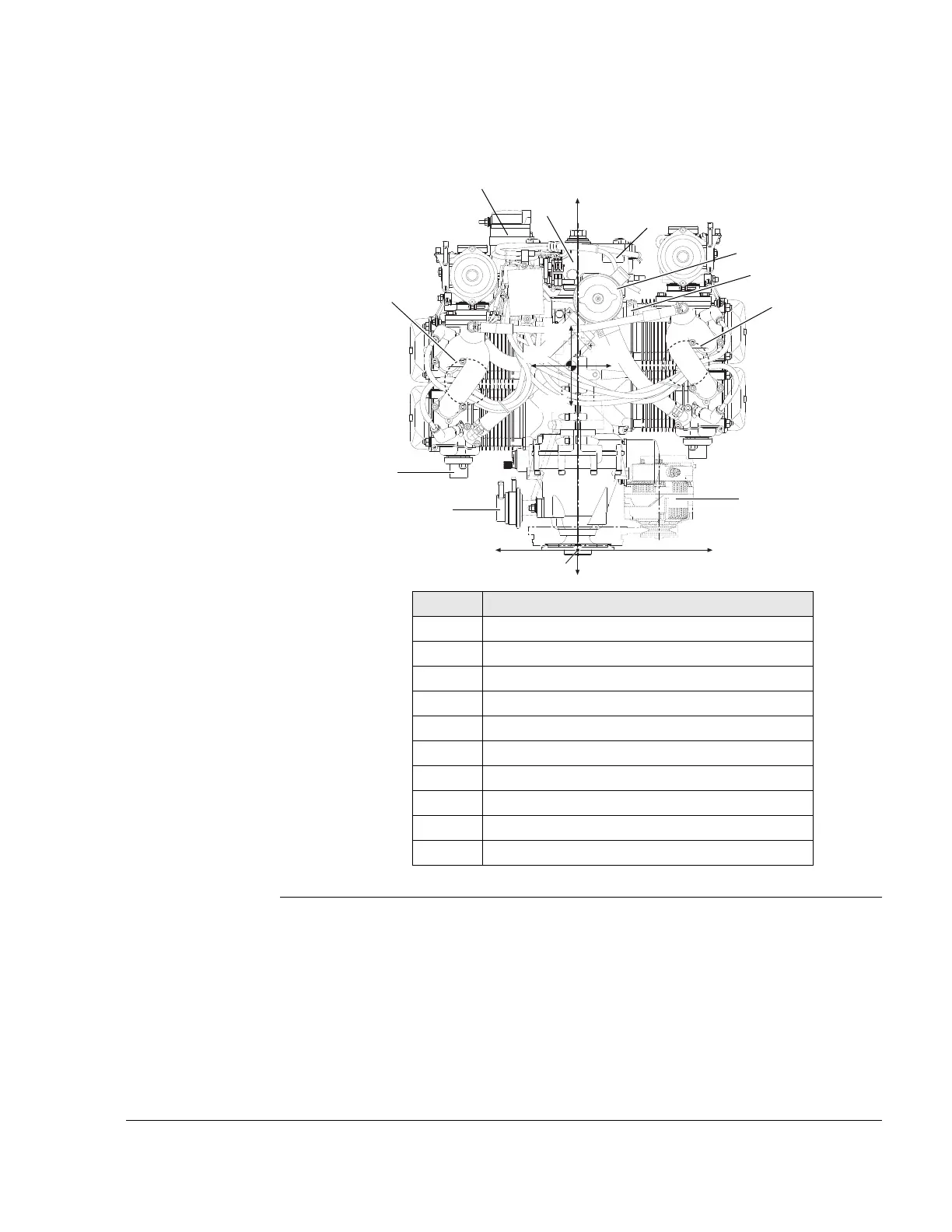

Top view
Fig. 4 00504
Part Function
15 Mechanical fuel pump
16 Exhaust socket
17 Intake manifold
18 Electronic module
19 Electric starter
20 Ignition housing
21 Engine number
22 Expansion tank
23 Connection for manifold pressure
24 External alternator
A
A
-x
+x
-y
+y
P
-x1
+y1
-y1
+x1
17
21
16
17
24
15
20
18
22
23
19
Cyl. 1
Cyl. 3
Cyl. 2
Cyl. 4

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
