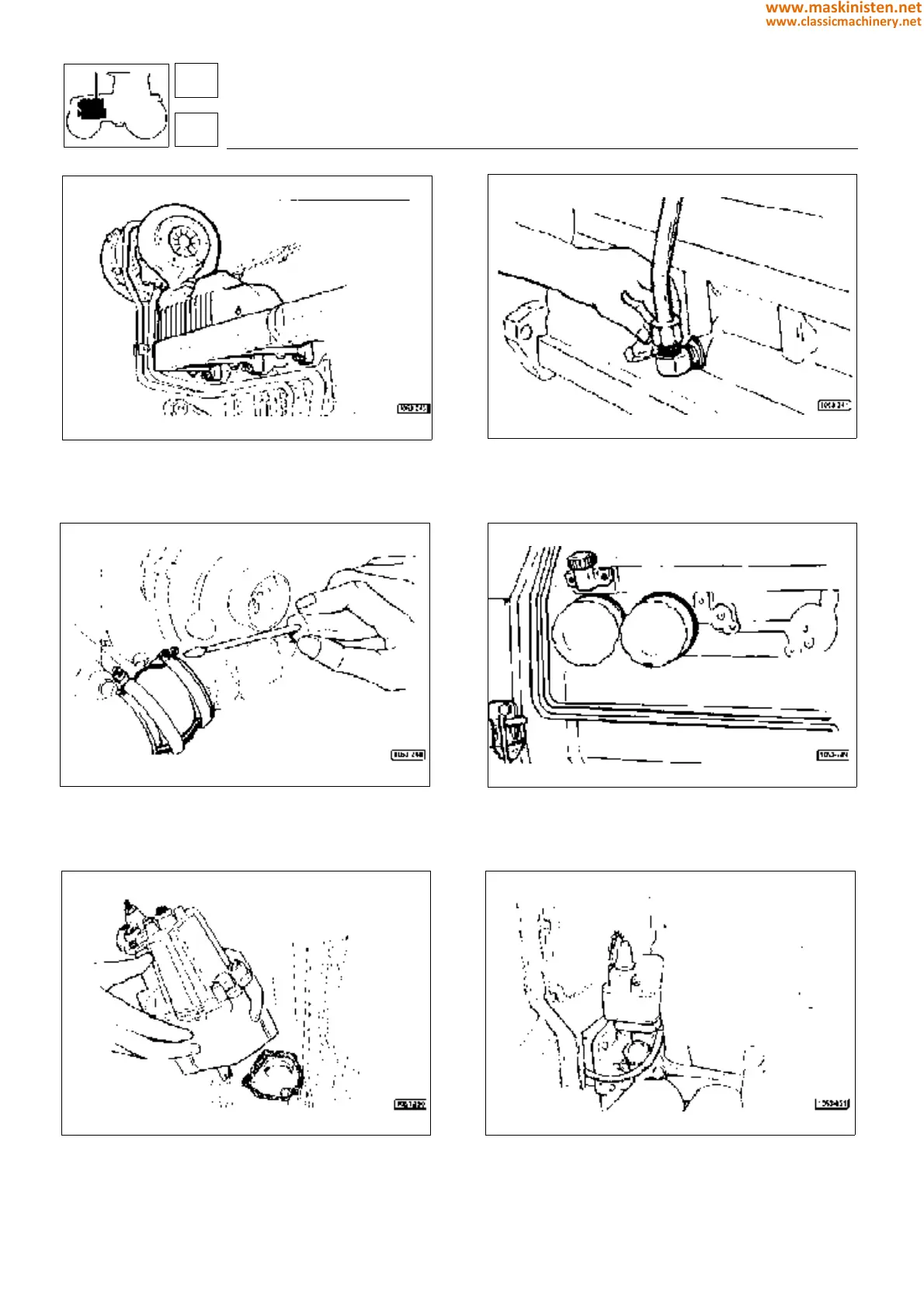

Fig. 71 - On turbocharged engines: install the turbocharger
assembly following the instructions given on page 89;
Fig. 73 - On turbocharged engines: place the rubber hose
connecting the turbocharger to the intake manifold and secu-
re with two clamps;
Fig. 75 - FOR TRAKTORS WITH MECHANICAL GOVERNOR
ONLY
- Install the engine governor taking care the control frok
engages in the pump control rod ratchet correctly; make sure
it is properly fit in its seat and then tighten with both securing
screws;
Fig. 72 - On turbocharged engines: connect the turbocharger
oil delivery and return pipes;
Fig. 74 - Fit the oil filler and engine oil filters; then fit the fuel
filters and the fuel prefilter. Connect the fuel lines;
Fig. 76 - FOR TRAKTORS WITH ELECTRONIC GOVER-
NOR ONLY - Install the governor actuator assembly together
with the electronic control unit;
engine
assembly
1
