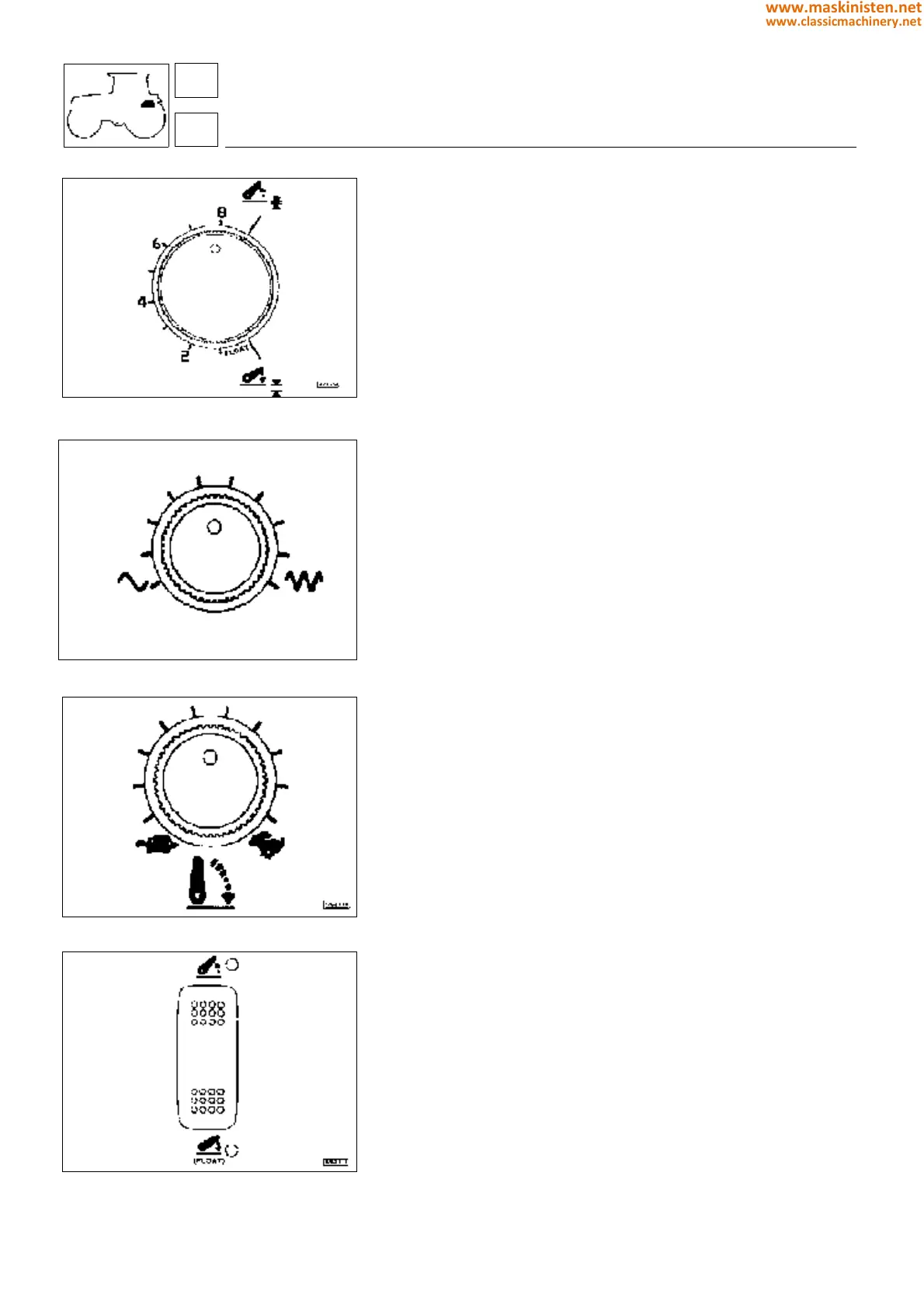

Work depth control
Response control adjustment
Speed of descent adjustment
Raise and lower switch
ELECTRONIC POWER-LIFT
The lift console incorporates the following controls:
Work depth control.
Work depth is regulated by this knob.
— Turn knob clockwise to reduce depth.
— Turn knob completely anti-clockwise to activate the perma-
nent FLOAT mode.
Response control adjustment
The knob regulates the responsiveness of the control system
— Turn the knob anti-clockwise to reduce response control; the
system will respond to large changes in the control system
only.
Speed of descent adjustment
The knob regulates the speed of descent.
This command regulates speed of descent only, but not draft
control response.
— Turn the knob anti-clockwise to reduce descent speed.
Raise and lower switch
— RAISE COMMAND: if the upper part of this switch is pressed,
the lift will be raised to maximum height, or to limited height if
the limitation command has been made. An indicator lamp will
be illuminated during lifting.
— CONTROLLED DESCENT COMMAND or FLOAT: if the
lower part of this switch is pressed momentarily, controlled
descent is activated. If command is held pressed, the FLOAT
command will be activated.
An indicator lamp will be illuminated during lowering.
NB: This function can NOT be used to adjust the Up or Down
travel limit of the lift arms.
59
5
vehicle
electronic power-lift
228
