Electro-hydraulic power-lift distributor
implement raising

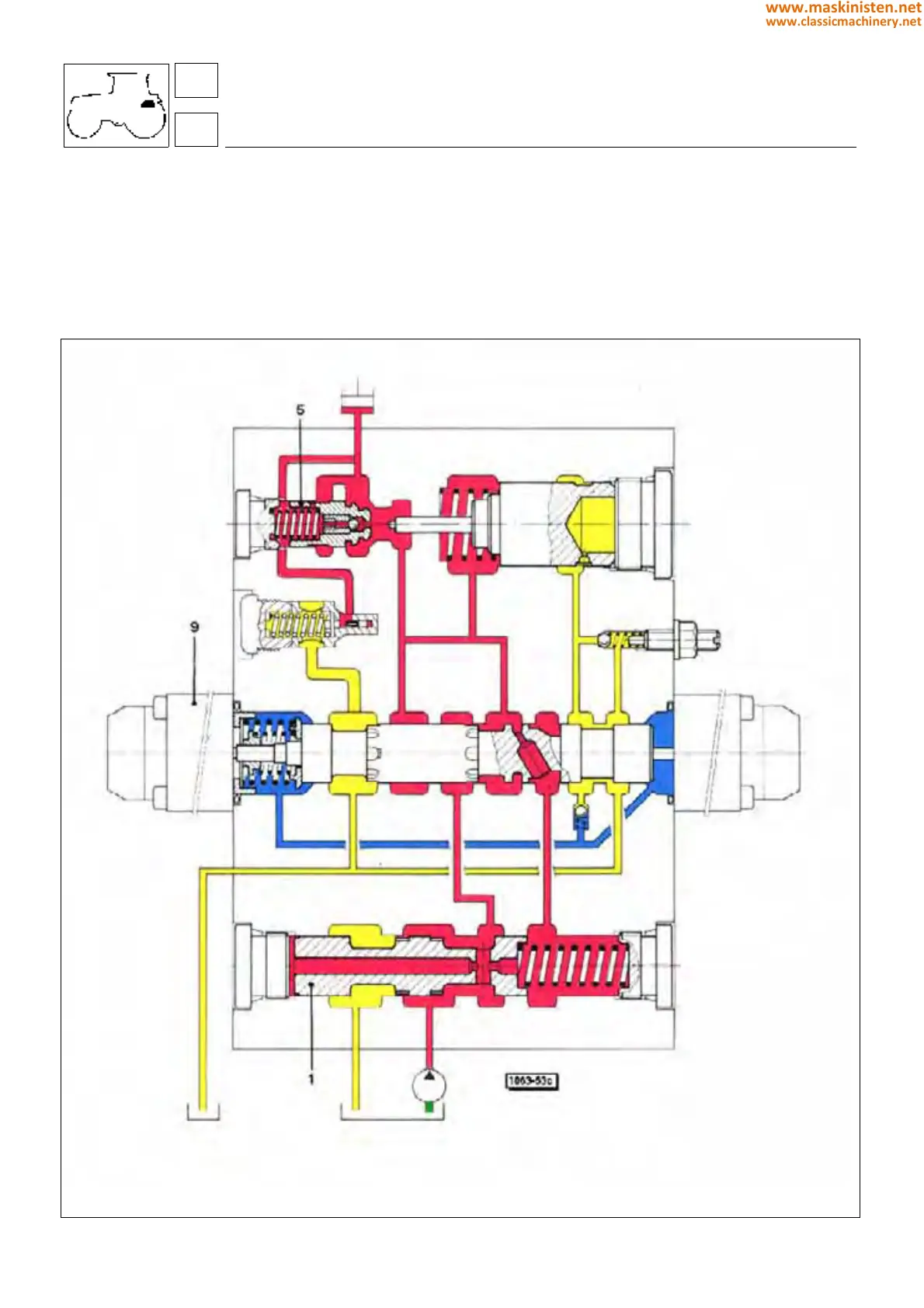

Implement raising is obtained by supplying current to electrovalve 9, whose stem is moved to the left.
Flow control valve 1, under the thrust of the pressurized oil, also moves to the left, permitting flow control valve 5 to
be opened by the oil flow which enters the power-lift system.
Red = Pressurized oil
Yellow = Discharged oil
Green = Intake oil
Blue = Low pressure oil
59
5
vehicle
electronic power-lift
250
