Electro-hydraulic power-lift distributor
implement lowering

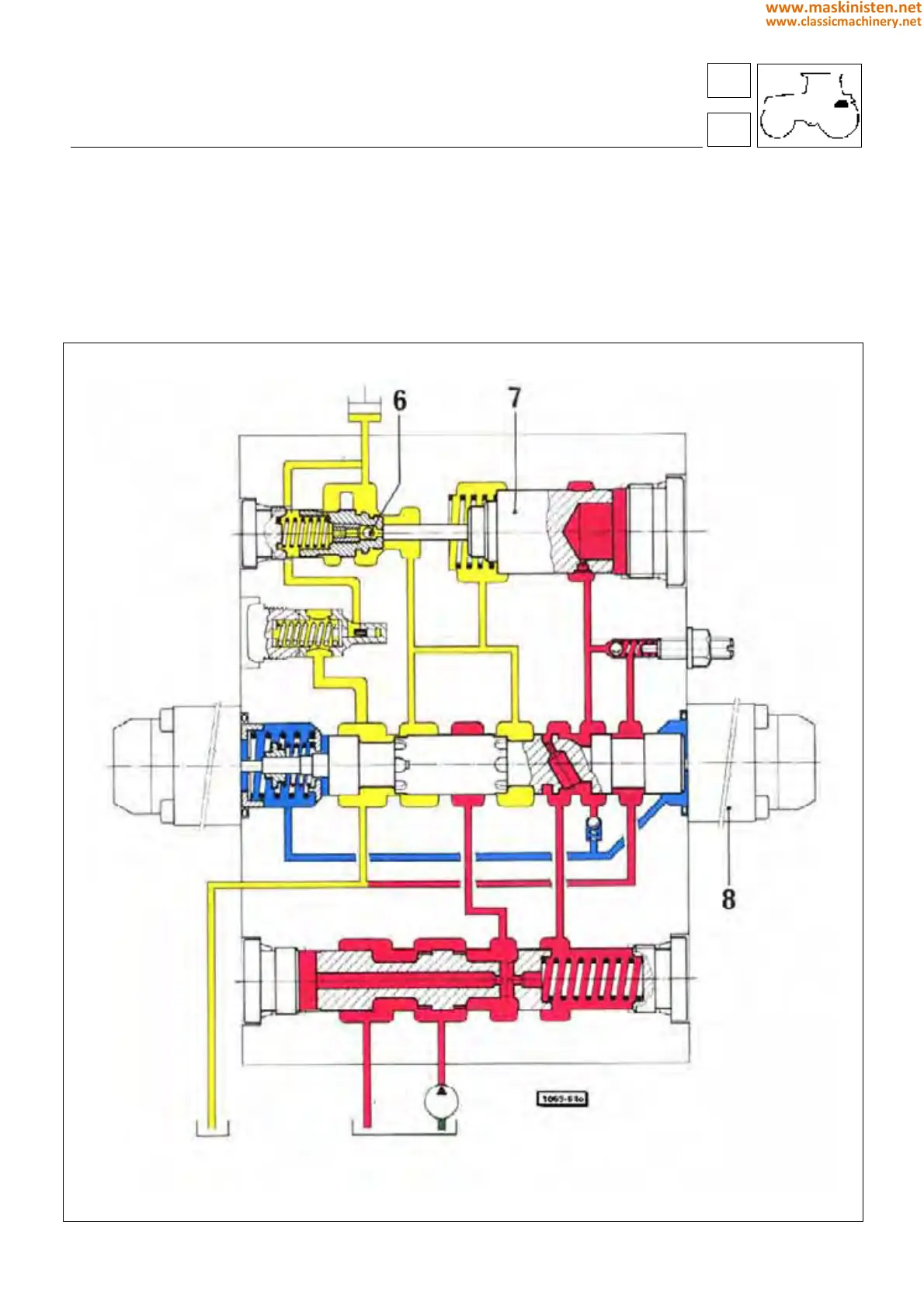

Implement lowering takes place when electrovalve 8 starts sending current; in this case the valve stem will be moved
to the right. The oil flow from the pump is conveyed by the electrovalve stem onto the thrust surface of piston 7, which
opens the lowering valve 6 by means of a pushrod.
The oil in the lifting system can thus return in the draining system causing the lowering of the lifting arms.
Red = Pressurized oil
Yellow = Discharged oil
Green = Intake oil
Blue = Low pressure oil
59
5
vehicle
electronic power-lift
251
