SAME SILVER 100.4 - Page 319

controls
electro-hydraulic controls

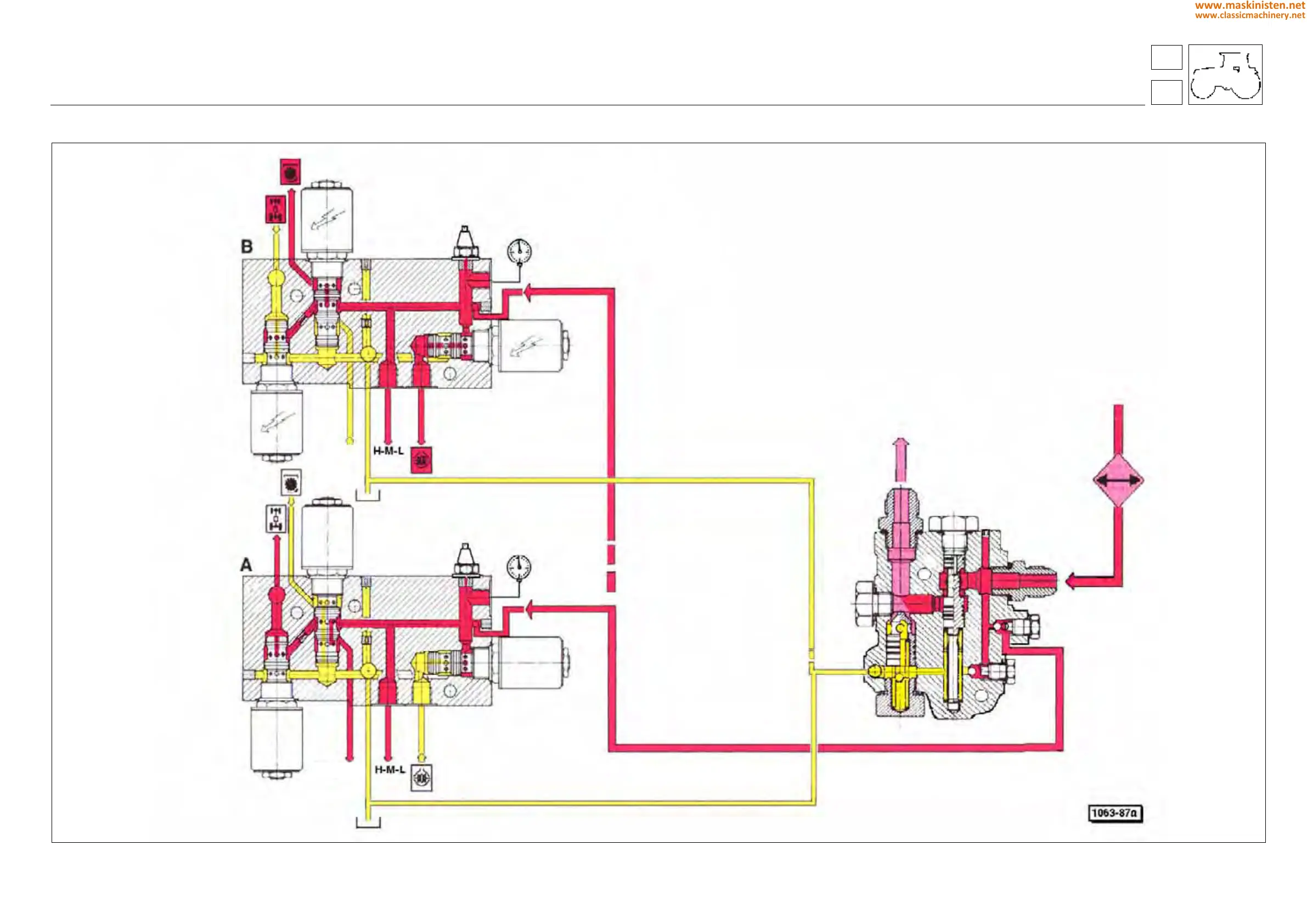

Fig. 6 - Hydraulic power unit operating diagram - machine without SBA SYSTEM and with pressure control valve.
Hydraulic power unit (machine without SBA SYSTEM).
6
68
A - desengagement
B - engagement
C - from hydrostatic steering
D - to gearbox lubrication
Brake PTO
