Transmission control
Buttons 9 and 10 (see Fig. 1), respectively increase and decrease gear ratio in the AGROSHIFT gearbox.
To operate, proceed as follows:
Press pushbutton 9 to increase the gear change. To change gear up again, release button and press again. Once the
highest gear has been reached, this status will be maintained even if the button is pressed again.
Press pushbutton 10 to gear down. Follow above procedure to continue gearing down.
Bear in mind that the AGROSHIFT gear will not change with the movement of the gear lever.
The gear is all way set to"TORTOISE" speed when the engine is turned ON.
Rear electronic lift control
Press buttons 7 and 8 to control rear lift arm movement.
To operate, proceed as follows:
Press button 8 to raise lift to maximum or limited height. Once raised, the lift will not change position even if the button
is pressed again.
Press button 7 (Fig. 1), for less than 0.5 sec. for lift control mode. The lift arms will be lowered until control system
balance has been reached. Hold button pressed for Float mode; release button to return to control mode. Control
buttons will only function if lift control system has been unlocked prior to operation.

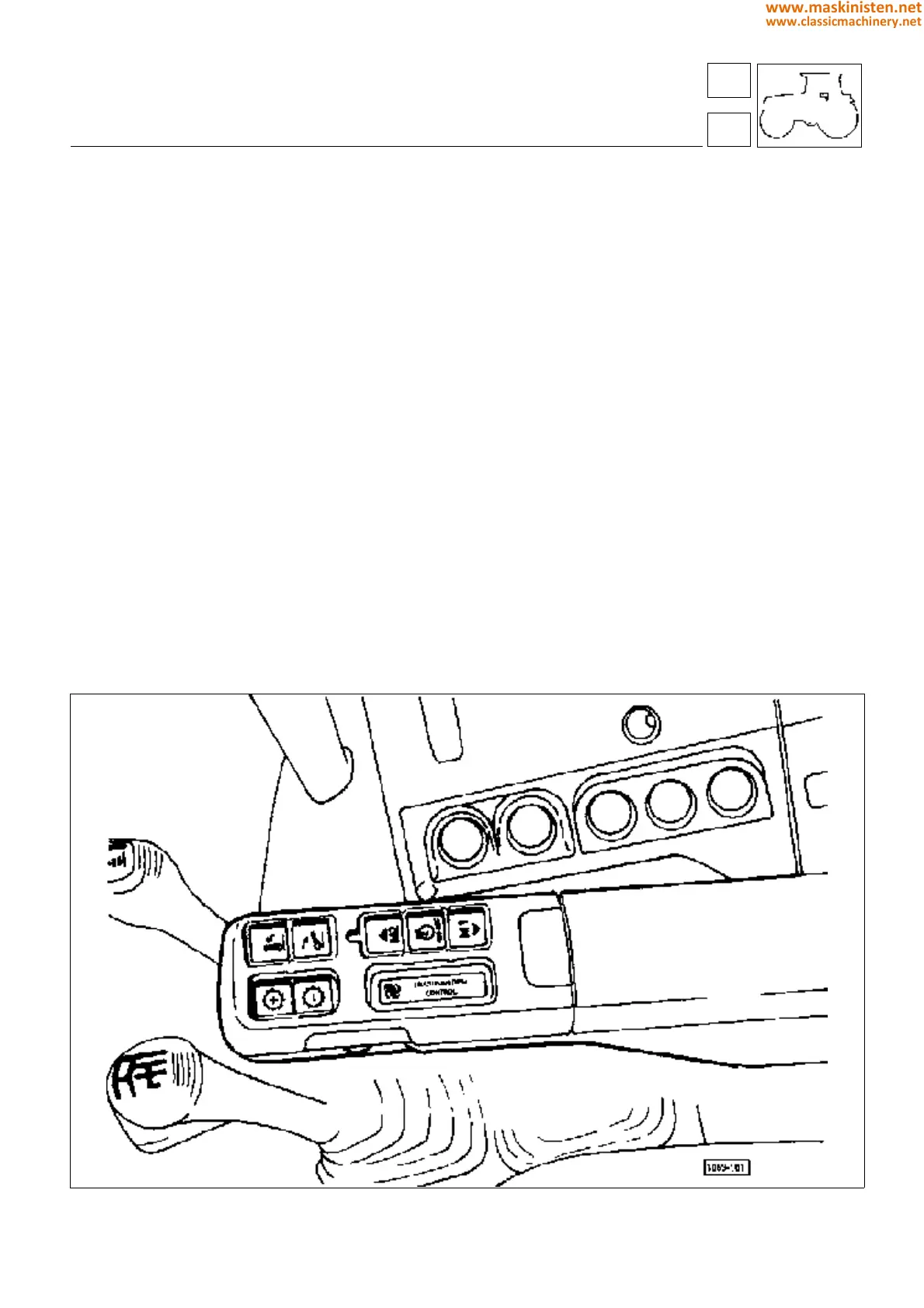

Fig. 2 - Multifunction control handset.
