Stripping the hydraulic pump

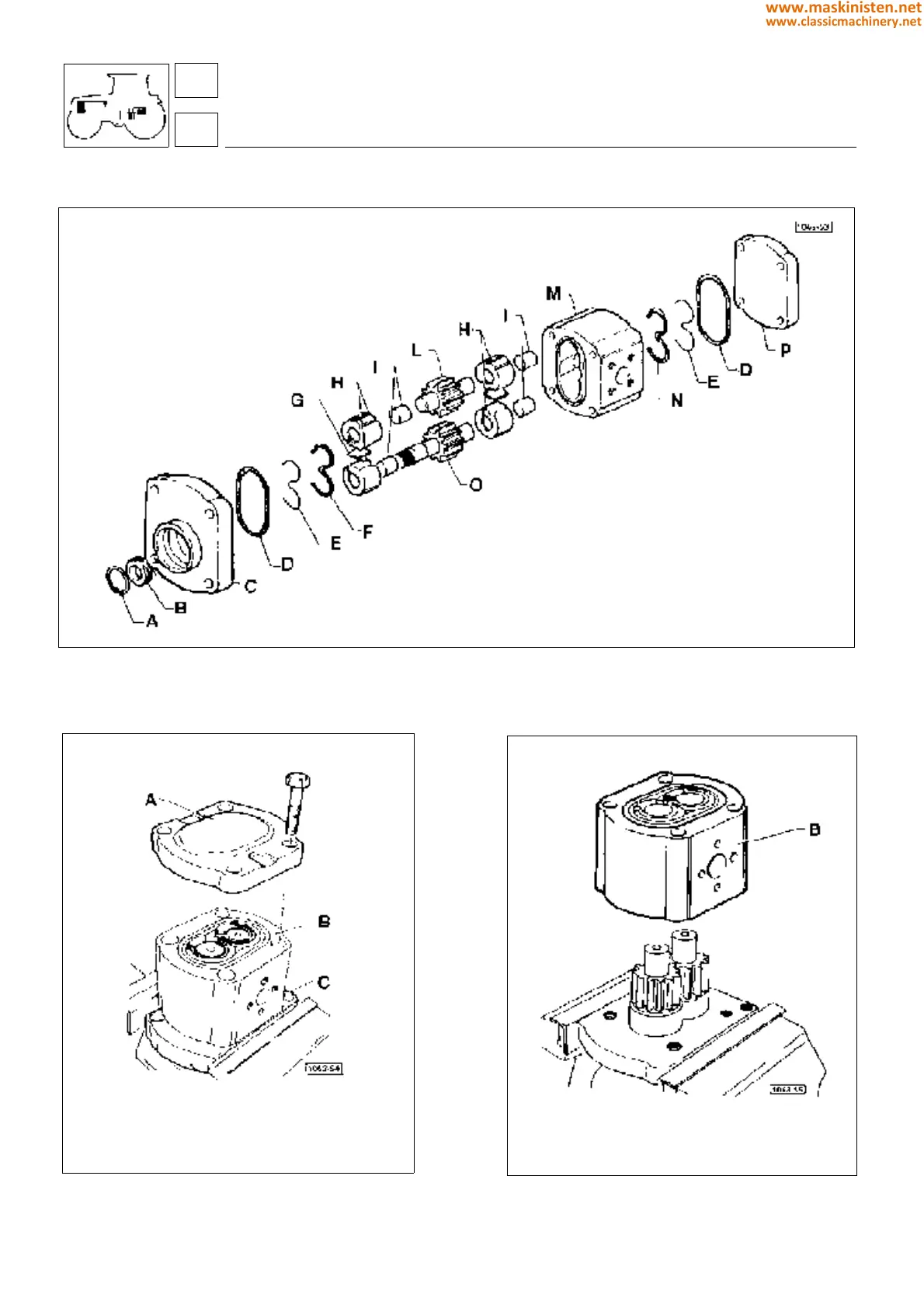

Fig. 2 - Component parts of the hydraulic pump assembly.
Fig. 3 - Pump assembly cover.
Fig. 4 - Pump case.
systems
hydraulic system
A
B
C
D
E
F
G
H
I
L
M
N
O
P
B - Pump case
A - Cover
B - Pump case
C - Base
- Snap-ring
- Seal ring
- Cover
- Gasket
- Gasket
- Gasket
- Feather key
- Bearing
- Bushes
- Driver gear
- Pump case
- Gasket
- Driver gear
- Cover
