Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 12
Copyright © 2017, All Rights Reserved.
System Arrangement
A minimum distance must be secured around the RRH, in each direction for
installation and maintenance.
The following figures depict the recommended distances for each direction of the
RRH in different installation scenarios.

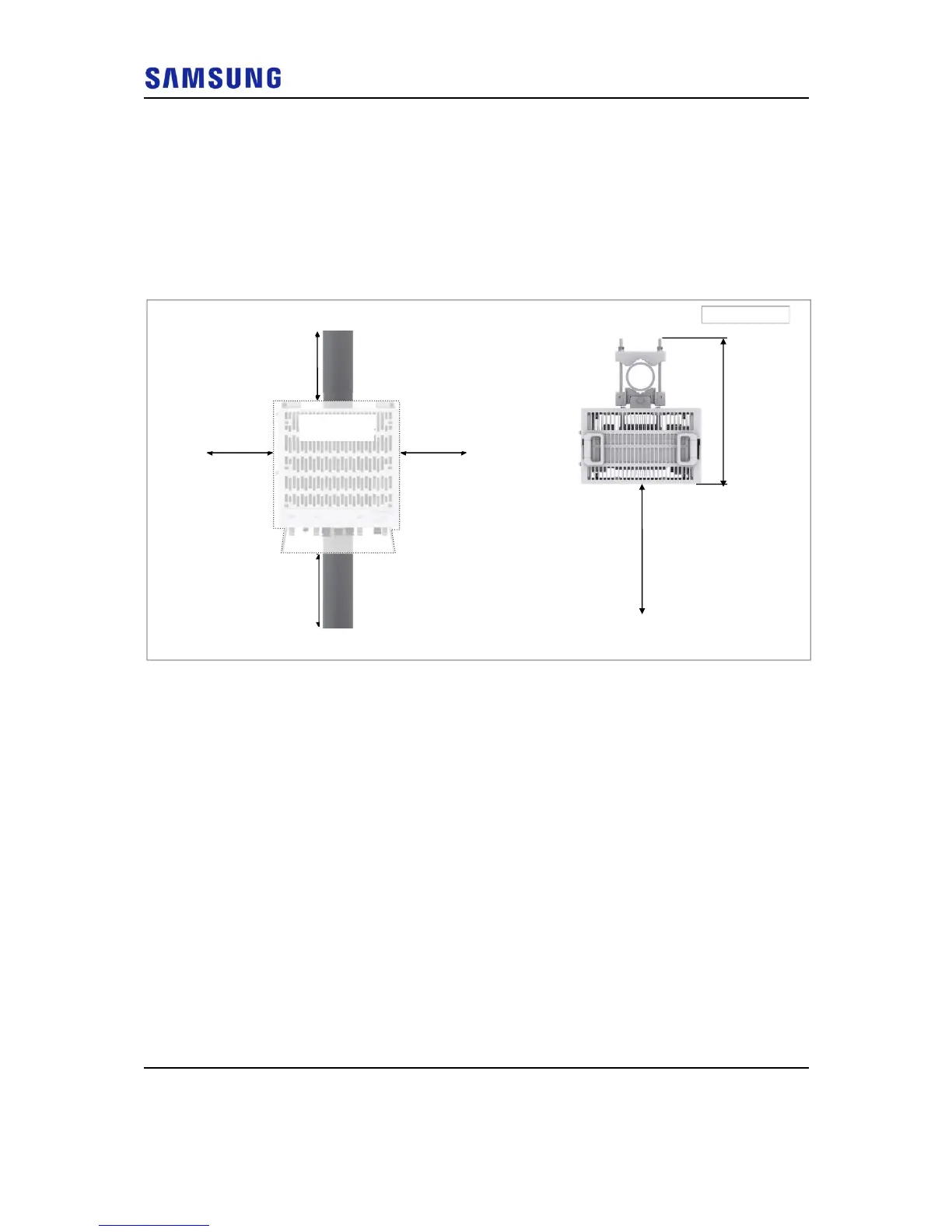

Figure 5. RRH Arrangement_1 Sector Pole Type Installation (Standard Installation)
[Front View]
Unit: in. (mm)
[Top View]
≥ 12 (300)
≥ 16 (400)
≥ 8 (200)≥ 8 (200)
19.37 (492)
To Next Page
