Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 25
Copyright © 2017, All Rights Reserved.

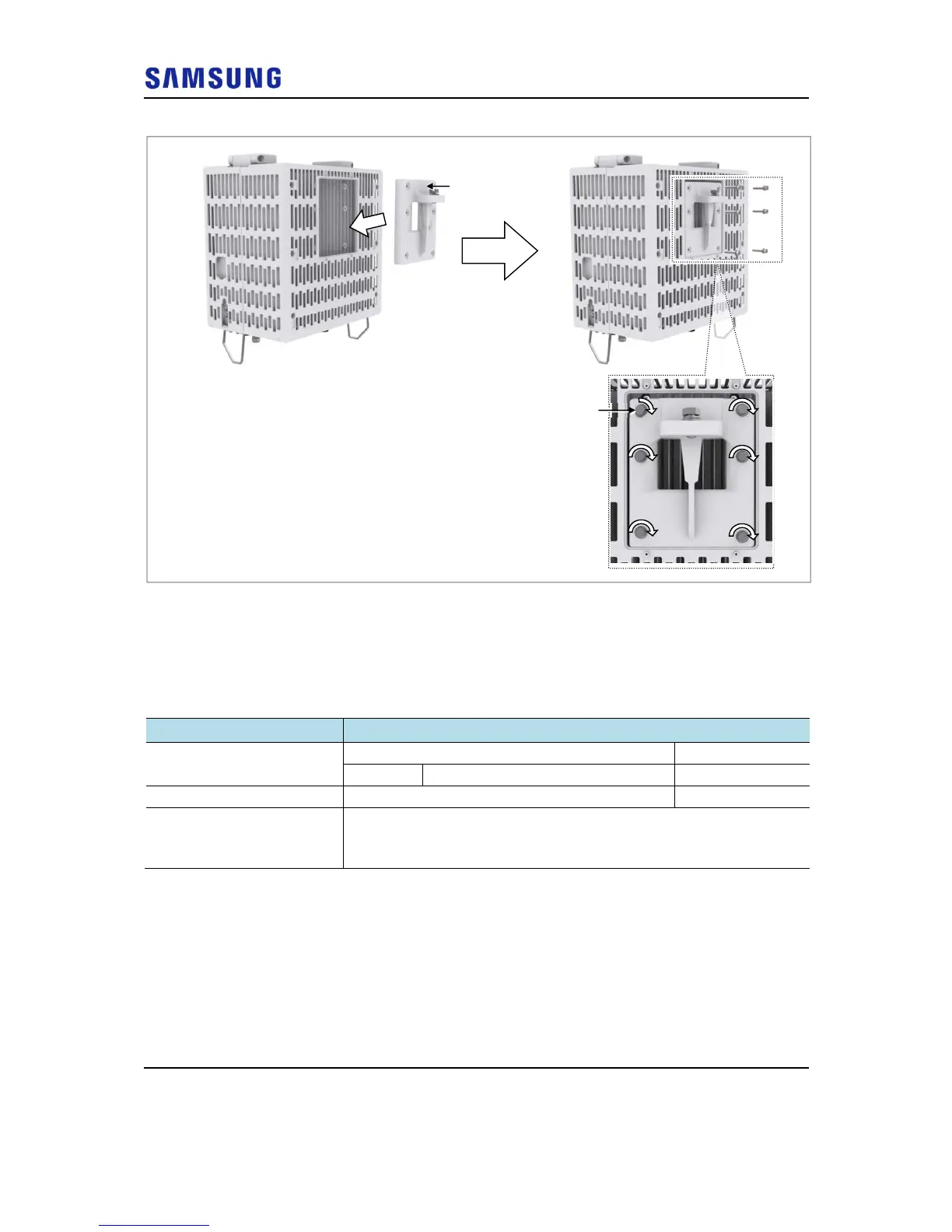

Figure 21. Fixing Unit Bracket_Standard Installation (3)
To fix the unit Bracket_Side for standard installation, do the following:
1 Make sure that you have the following items:
Table 5. Parts and Tools for fixing Unit Bracket_Standard Installation
Category Description
Parts Unit bracket 1 EA/RRH
Fasteners M6 × 35L Hex. Bolt (washer assembly) 6 EA/RRH
Recommended Torque Value M6 × 20L Hex. Bolt 43 lbfin (50 kgfcm)
Working Tools
 Torque wrench (10 to 50 lbfin)
 Torque wrench spanner head (apply Hex. Head: 10 mm)
 Spanner (10 mm)
2 Place a unit bracket to the RRH left and fix it using fasteners.
Unit Bracket
M6 Hex. Bolt
(washer assembly)
