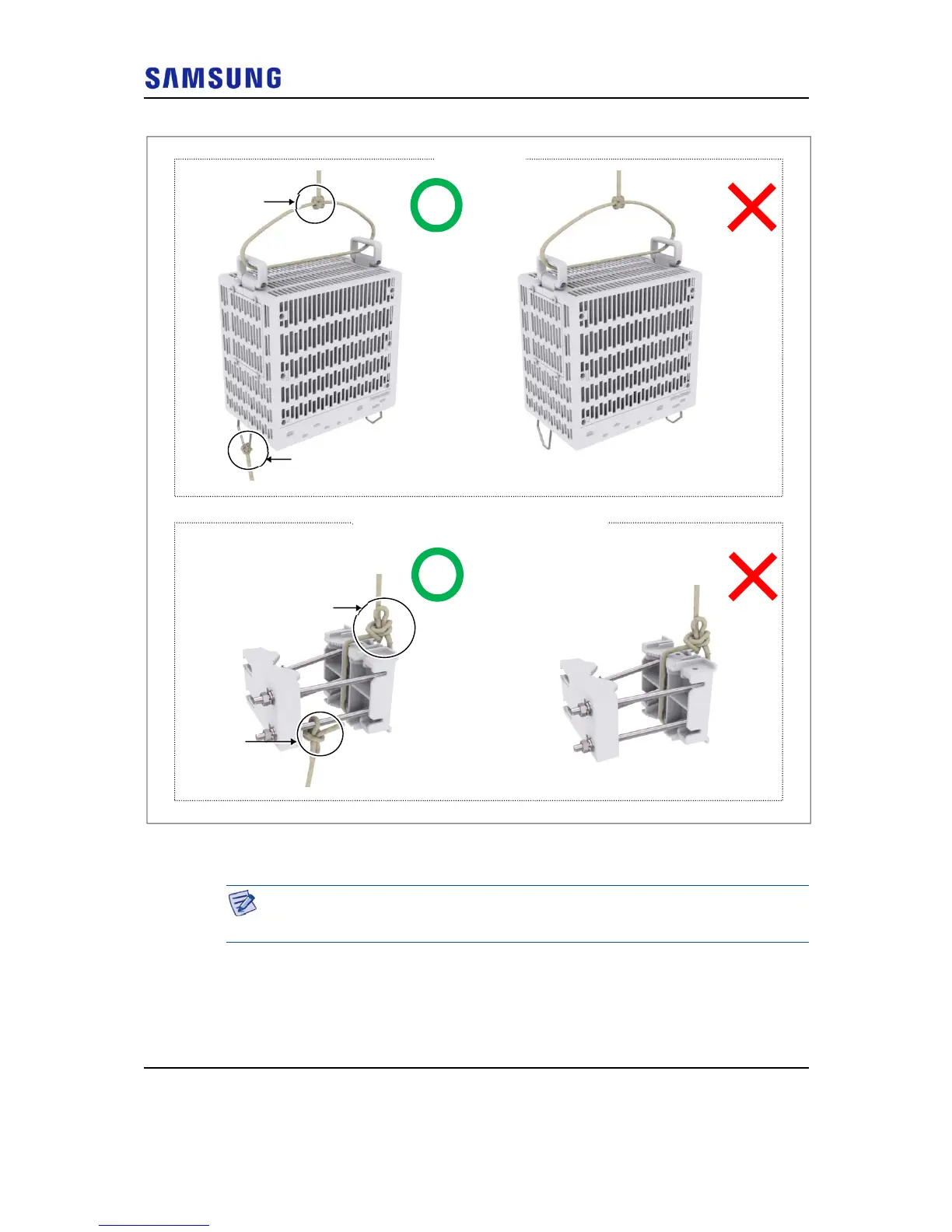

Figure 25. Lifting RRH and Mounting Bracket Assembly
2
Haul the rope to carry up the RRH/Mounting bracket assembly and at the same
time, pull the rope outward to avoid collision with the tower platform.
To perform the above step, two operators are required. One for hauling the rope
and the other for pulling the rope outward. For more information, see Figure 25.
[Lifting Mounting Bracket Assembly]
[Lifting RRH]
Carrying
Point_1
Carrying
Point 2
Carrying
Point_1
Carrying
Point_2
