Samsung RFV01U-D2A - RRH Arrangement_3 Sector Wall Type Installation (Standard Installation)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 16
Copyright © 2017, All Rights Reserved.

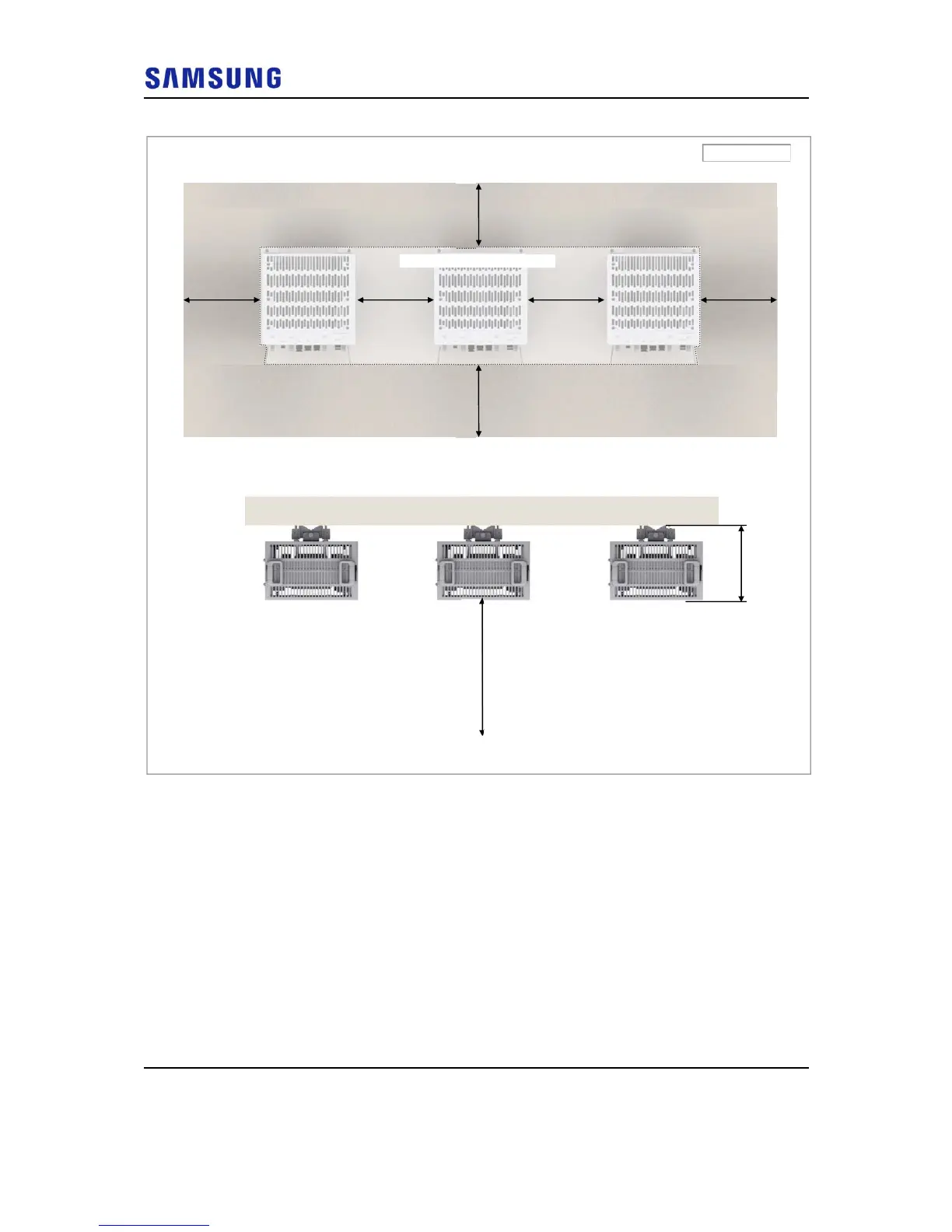

Figure 10. RRH Arrangement_3 Sector Wall Type Installation (Standard Installation)
[Front View]
Unit: in. (mm)
[Top View]
W: 63.4 (1610)/H: 19.73 (501)
≥ 8 (200) ≥ 8 (200)≥ 8 (200) ≥ 8 (200)
≥ 16 (400) ≥ 12 (300)
12.82
≥ 32 (800)
(325)
