Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 45
Copyright © 2017, All Rights Reserved.

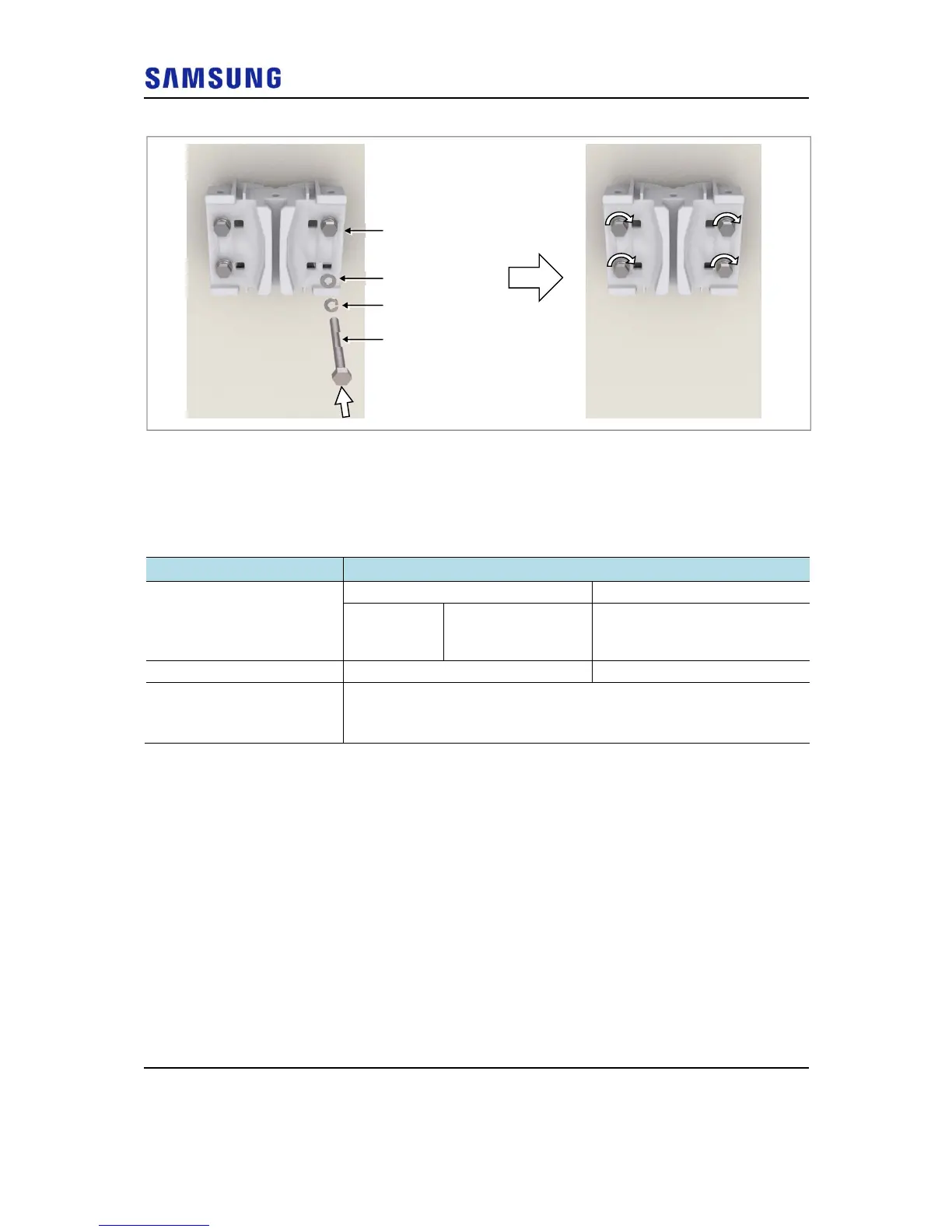

Figure 44. Fixing Mounting Bracket_1 Sector Wall Type
For 3 Sector
To fix the mounting Bracket_3 sector for wall type installation, do the following:
1 Make sure you have the following items:
Table 15. Parts and Tools for fixing Mounting Bracket_3 Sector Wall Type
Category Description
Parts Mounting Bracket_Front 1 EA/RRH
Fastener M10 Plain Washer
M10 Spring Washer
M10 × 70L Hex. Bolt
4 EA/RRH
4 EA/RRH
4 EA/RRH
Recommended Torque Value M10 Hex. Bolt 217 lbfin (250 kgfcm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm)
2 Place the mounting bracket_front along with the fixed strong anchors and fix it
using fasteners.
Mounting Bracket_Front
M10 Plain Washer
M10 Spring Washer
M10 Hex. Bolt
