Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 14
Copyright © 2017, All Rights Reserved.
When two sectors pole type (side installation) is installed, it is recommended to
install it to the pole of the 80 to 100 A specification.

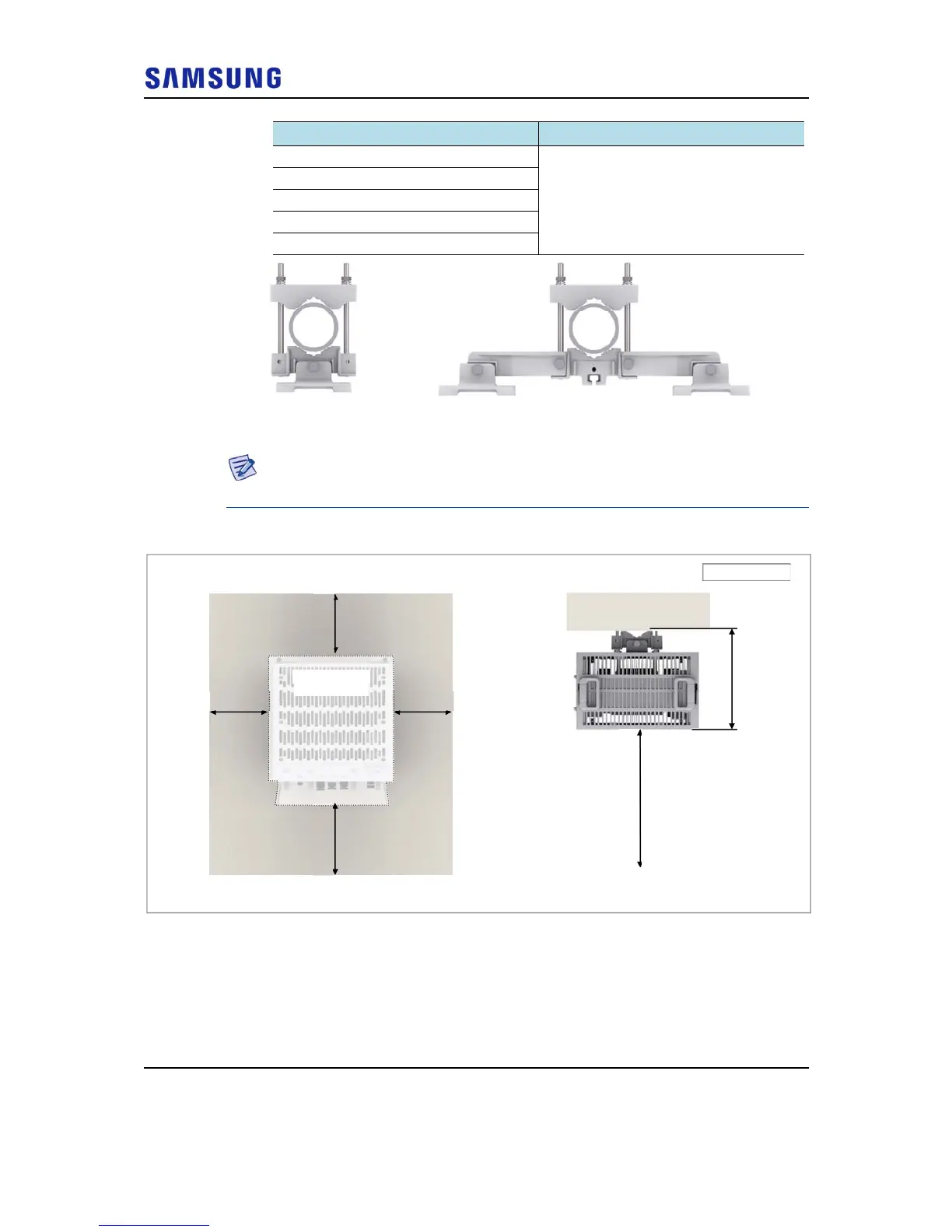

Figure 8. RRH Arrangement_1 Sector Wall Type Installation (Standard Installation)
Pole Size (Diameter) Length of Carriage Bolt
50 A (60.5 mm) 220 mm
65 A (76.3 mm)
80 A (89.2 mm)
90 A (101.6 mm)
100 A (114.3 mm)
Pole
Size
Pole
Size
Carriage Bolt Carriage Bolt
[1 Sector] [2 Sector]
[Front View]
Unit: in. (mm)
[Top View]
12.82 (325)
≥ 32 (800)
≥ 12 (300)
≥ 16 (400)
≥ 8 (200) ≥8 (200)
W: 15.88 (403)
H: 19.73
