Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 22
Copyright © 2017, All Rights Reserved.

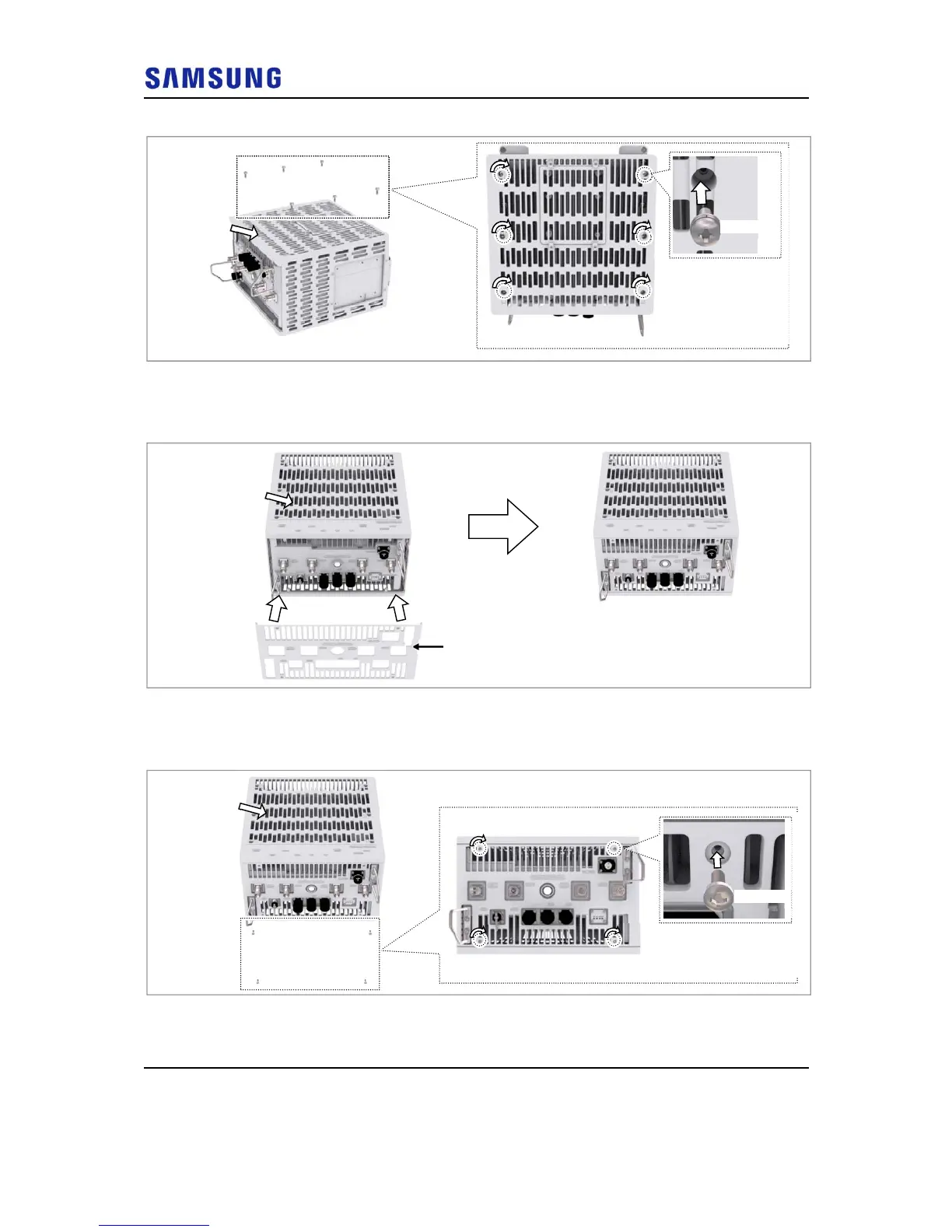

Figure 16. Finger Guard Fixing (4)
6 Place the finger guard_ bottom to the RRH bottom.
Figure 17. Finger Guard Fixing (5)
7 Fix the finger guard_bottom using fasteners.
Figure 18. Finger Guard Fixing (6)
[RRH Rear]
[Top View]
M5 SEMS
[RRH Front]
Finger Guard_Bottom
[Bottom View]
M3 Screw
[RRH Front]
