Samsung RFV01U-D2A - Fixing Mounting Bracket Assembly_2 Sector Pole Type (Side Installation 1); Fixing Mounting Bracket Assembly_2 Sector Pole Type (Side Installation 2)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 33
Copyright © 2017, All Rights Reserved.
Category Description
Parts 1 Sector Mounting Bracket Assembly 1 Set
Extension Mounting Bracket 2 EA
Fastener M10 × 25L Hex. Bolt (washer assembly) 2 EA
Recommended Torque Value M10 Hex. Bolt/Nut 217 lbfin (250 kgf·cm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm)
 Level
2 Fix 1 sector mounting bracket assembly to the pole (as described in the ‘For 1
Sector’ section).

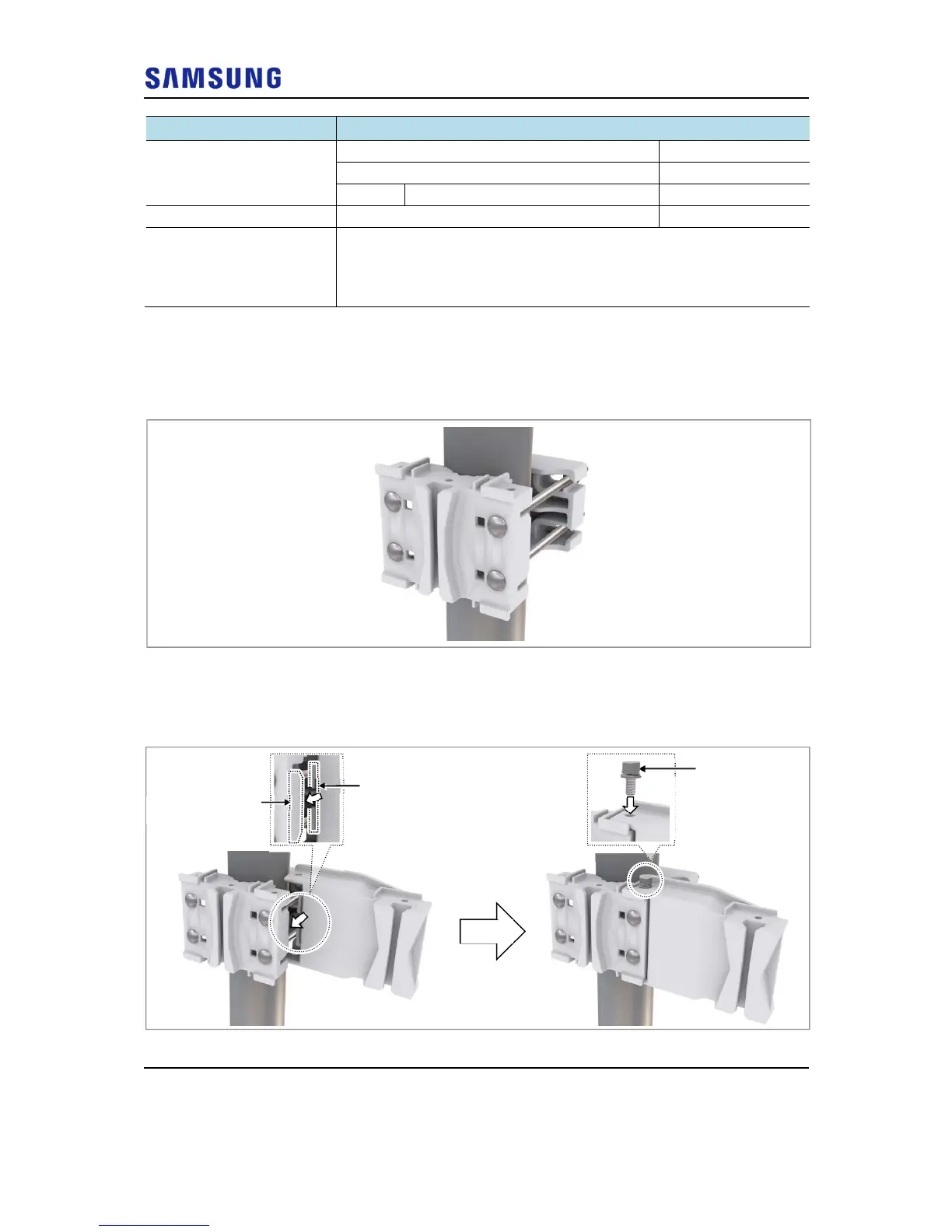

Figure 31. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Side Installation 1)
3 Fit the groove of the extension mounting bracket into the right hook of the
mounting bracket_front, and then fix it using fasteners.
Figure 32. Fixing Mounting Bracket Assembly_2 Sector Pole Type (Side Installation 2)
M10 Hex. Bolt
(washer assembly)
Mounting Bracket
_
Front Hook
Extension Mounting Bracket
Hook Groove
