Samsung RFV01U-D2A - Fixing RRH_1 Sector Pole Type (Side Installation); Parts and Tools for Fixing RRH_2 Sector Pole Type (Side Installation)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 36
Copyright © 2017, All Rights Reserved.

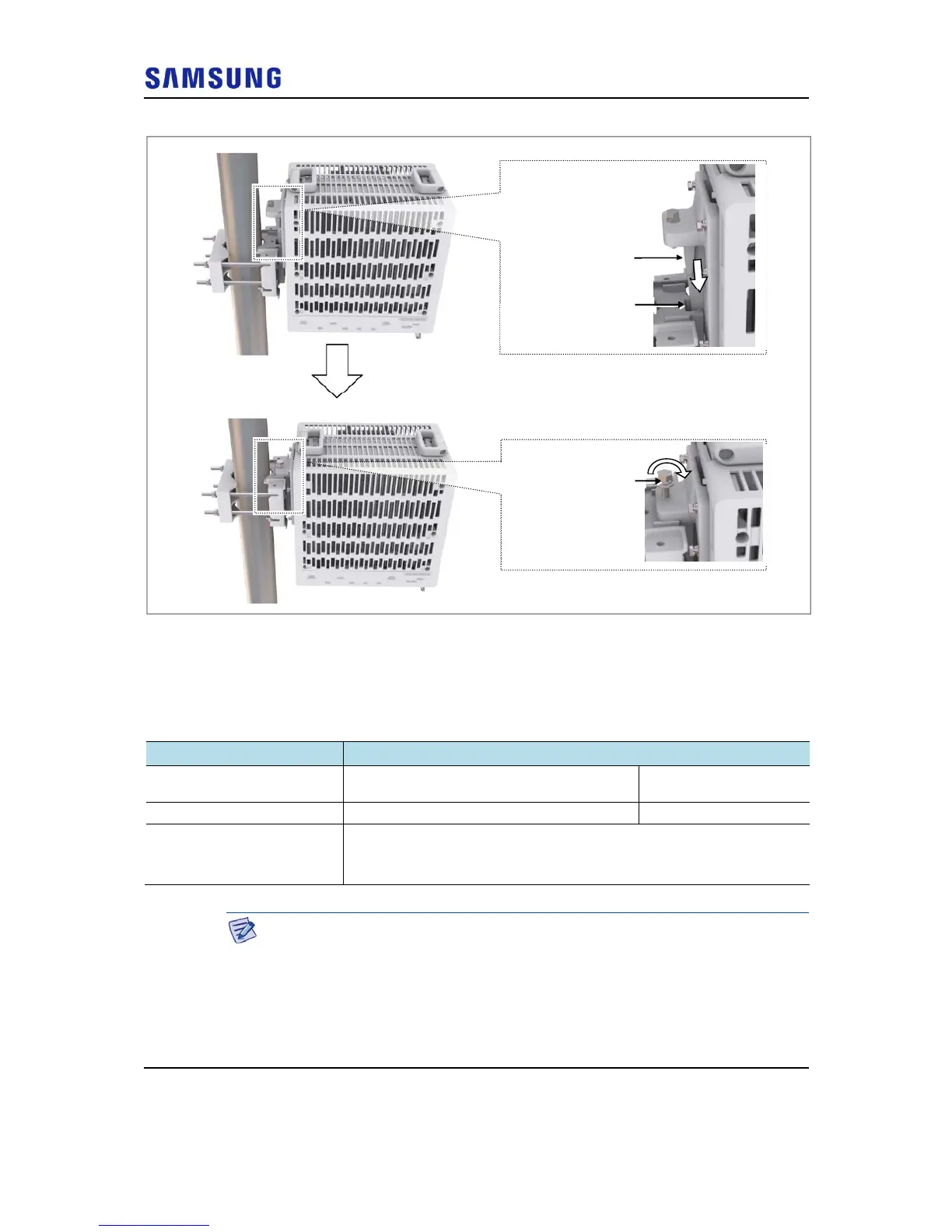

Figure 35. Fixing RRH_1 Sector Pole Type (Side Installation)
For 2 Sector
To fix the RRH_2 sector pole type for side installation, do the following:
1 Make sure you have the following items:
Table 10. Parts and Tools for fixing RRH_2 Sector Pole Type (Side Installation)
Category Description
Parts
M10 × 35L Hex. Bolt (washer assembly,
attached to the unit bracket)
1 EA/RRH
Recommended Torque Value M10 Hex. Bolt 217 lbfin (250 kgf·cm)
Working Tools
 Torque Wrench (100 to 400 lbf·in)
 Torque Wrench Spanner head (apply Hex. Head: 17 mm)
 Spanner (17 mm)
Check the location to install the RRH.
M10 Hex. Bolt
(washer assembly)
Unit Bracket Hook
Mounting Bracket_Front
Hook Groove
