Samsung RFV01U-D2A - RRH Marking Dimensions_1 Sector Wall Type (Side Installation); RRH Marking Dimensions_3 Sector Wall Type (Standard Installation)

Confidential
Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 40
Copyright © 2017, All Rights Reserved.

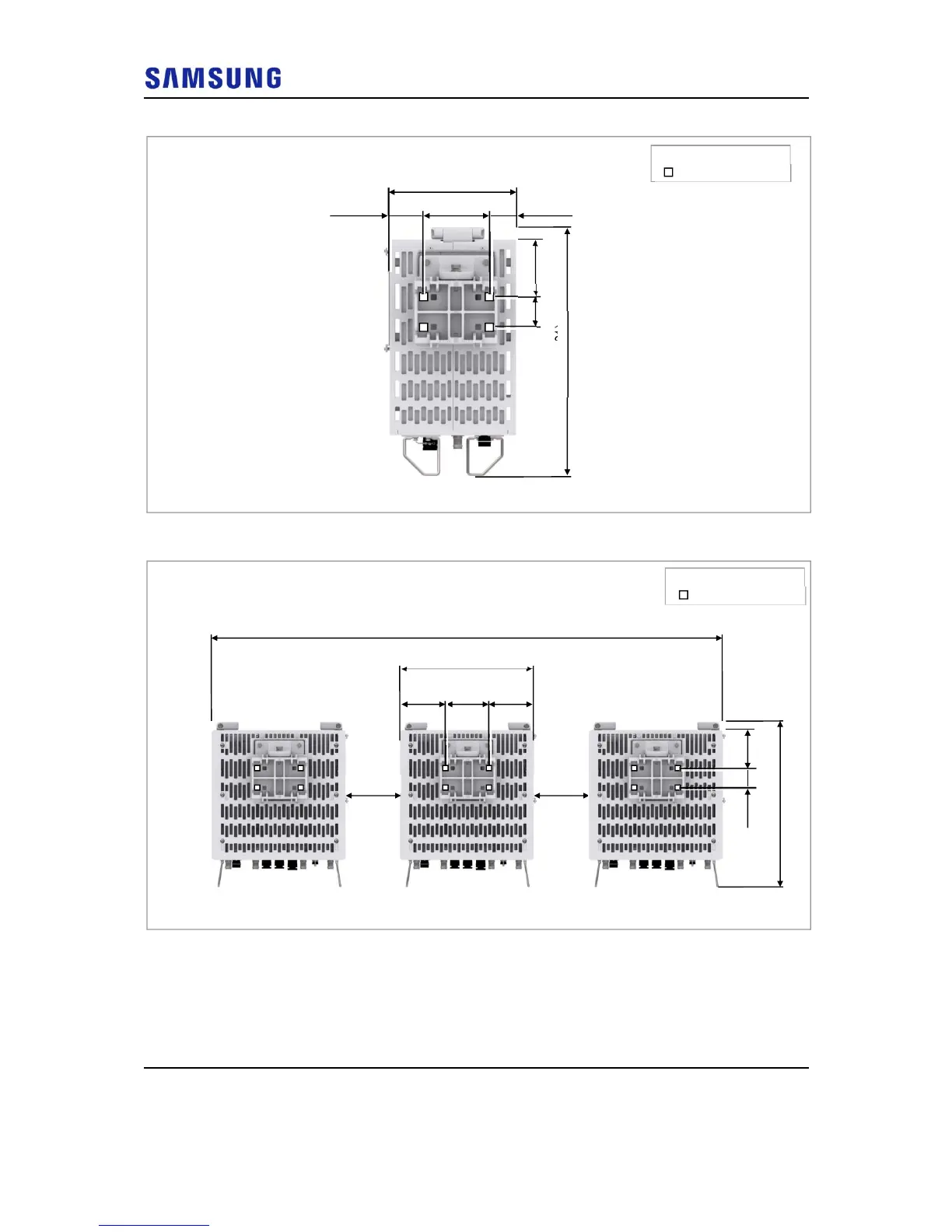

Figure 39. RRH marking dimensions_1 Sector Wall Type (Side Installation)
Figure 40. RRH marking dimensions_3 Sector Wall Type (Standard Installation)
Unit: in. (mm)
: Anchor Bolt Hole
[Side View]
5.11 (130)
10.03 (255)
2.73 (69) 2.18 (55)
4.48
19.73 (501)
2.36
(60) (114)
Unit: in. (mm)
: Anchor Bolt Hole
[Rear View]
5.11
(130)
5.28 (134)
5.28
(134)
≥ 63.4 (1610)
≥ 8 (200)
5.48
(139)
4.48
(114)
19.73
(501)
≥ 8 (200)
2.36
(60)
