Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 31
Copyright © 2017, All Rights Reserved.

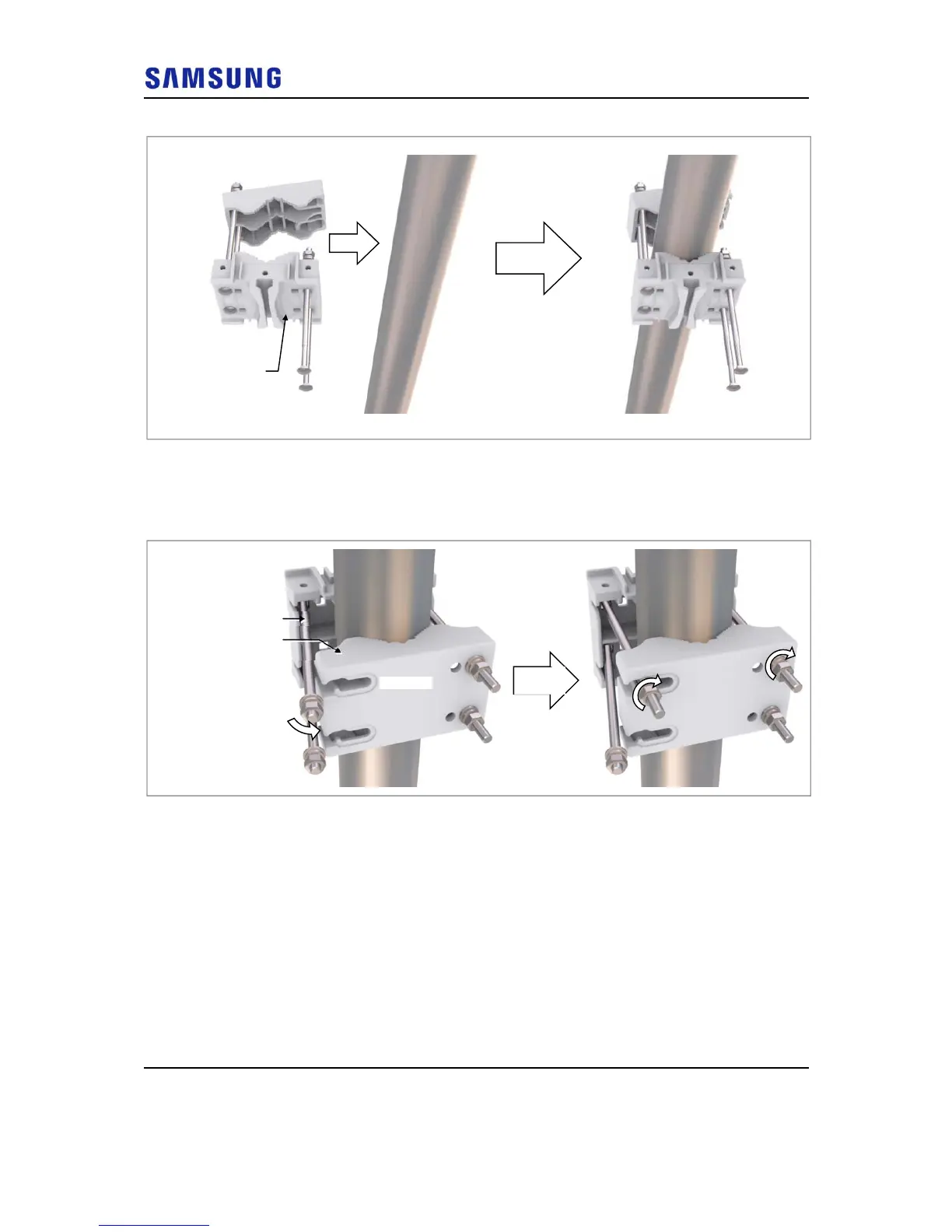

Figure 27. Fixing Mounting Bracket Assembly_1 Sector Pole Type (1)
3
Locate the upper carriage bolt in the upper side hole of the mounting
bracket_rear and fix the fastening materials temporarily on upper side.
Figure 28. Fixing Mounting Bracket Assembly_1 Sector Pole Type (2)
4
Locate the lower carriage bolt in the lower side hole of the mounting
bracket_rear and fix the all fastening materials.
Mounting Bracket
Assembly
Side Hole
M10 Carriage Bolt
Mounting Bracket_Rea
