Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 41
Copyright © 2017, All Rights Reserved.

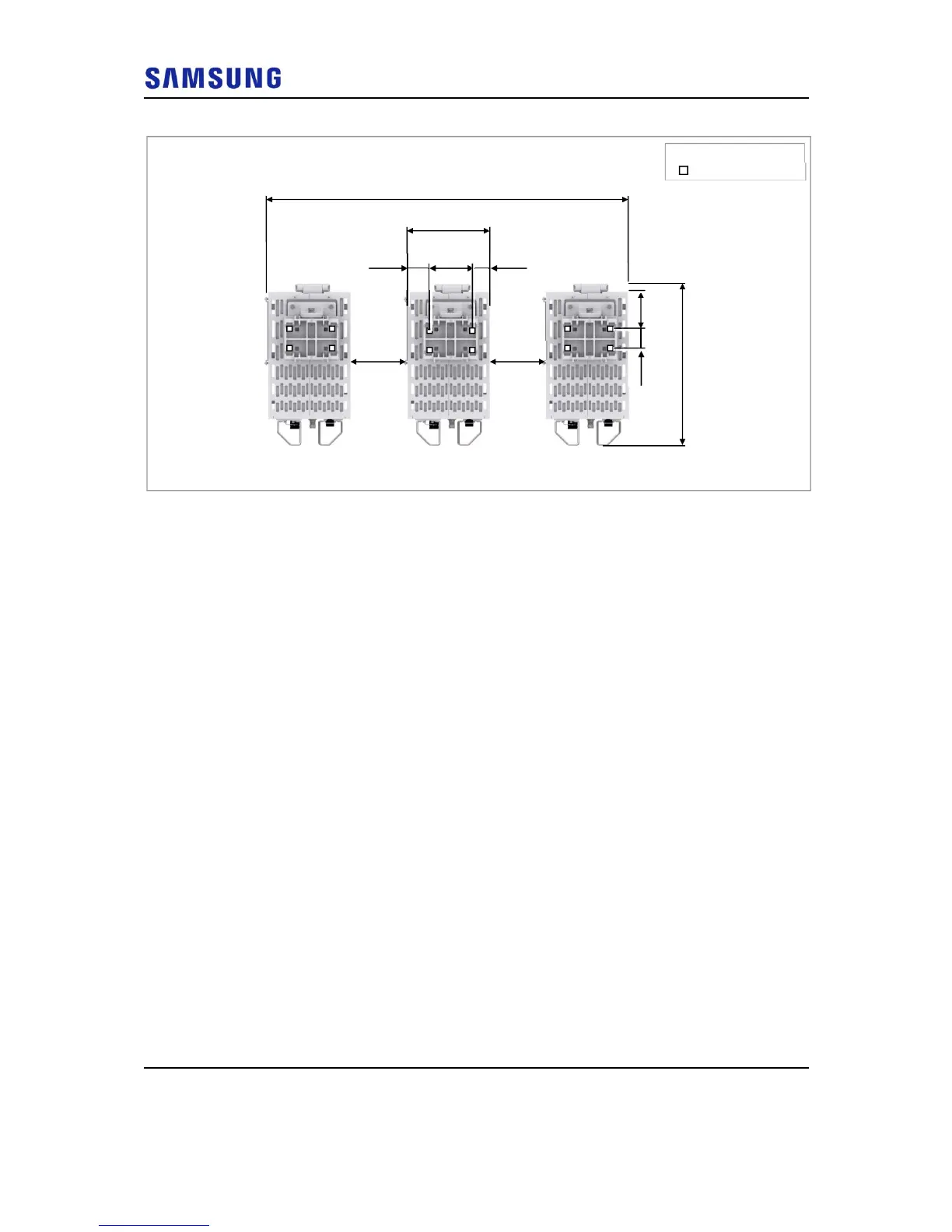

Figure 41. RRH marking dimensions_3 Sector Wall Type (Side Installation)
3
Place a mounting bracket on the fixing location.
4
Check the level status using a level and adjust the level of bracket assembly.
5
Mark the anchor bolt holes on the wall after ensuring that the level status is
normal.
Unit: in. (mm)
: Anchor Bolt Hole
4.48
(114)
19.72 (501)
[Side View]
≥ 45.86 (1165)
≥ 8 (200)≥ 8 (200)
10.03 (255)
5.11
(130)
2.73
(69)
2.18
(55)
2.36
(60)
To Next Page
