Chapter 2 Installing System
RFV01U-D2A Installation Manual v2.0 43
Copyright © 2017, All Rights Reserved.
Category Description
Concrete Drill Bit [0.55 in. (14 mm)]
Vacuum Cleaner
Hammer
Anchor Punch (For M10 Strong Anchor)
Table 13. Anchor Bolt Drill Bits and Hole Depth
Category Anchor Bolt Drill Bits Hole Depth
RRH (Wall Type) M10 0.55 in. (14 mm) 1.73 in. (44 mm)
2
Drill anchor holes at the marked points and remove all the drilling dust from
the holes using a cleaner.
3
Fix strong anchor to the drilled hole.

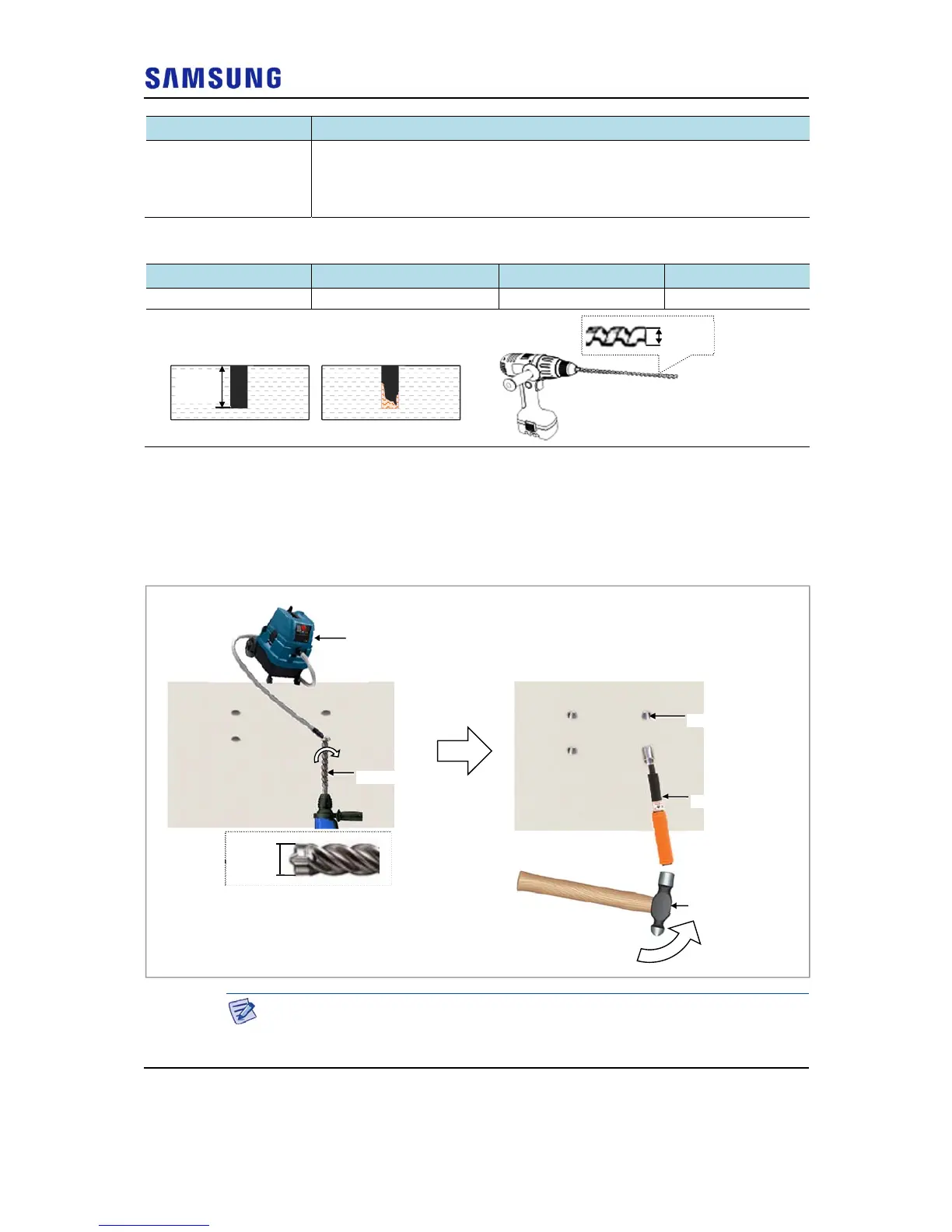

Figure 43. Drilling and Anchoring
When fixing the mounting bracket_front or 2 sector mounting bracket
assembly_front on the wall, ‘A’ side should stick on the wall.
[O]
* Remove the debris from the drilled hole.
[Anchor Hole Cross Section]
1.73 in.
(44 mm)
[X]
0.55 in.
(14 mm)
Hammer Drill
Vacuum Cleane
To Next Page
